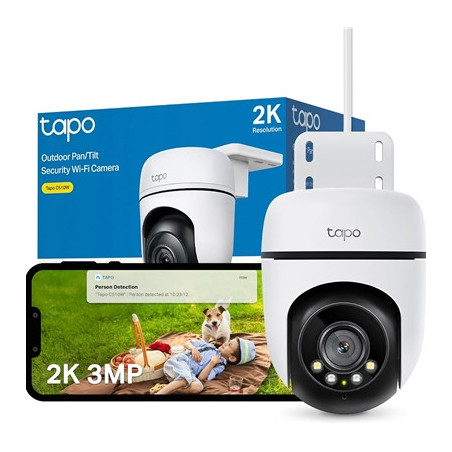

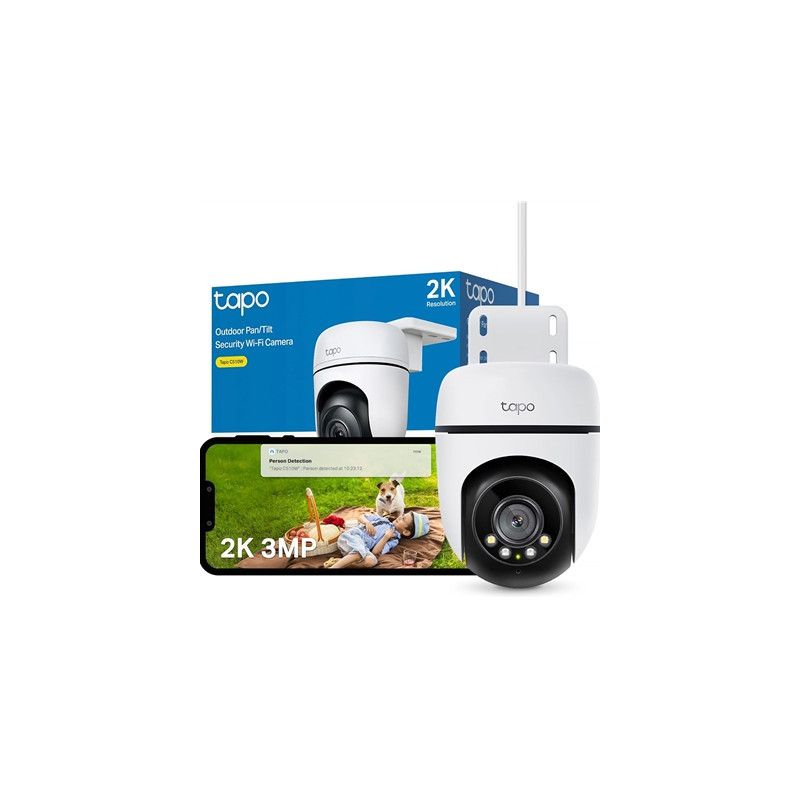

TP-Link Tapo C510W Outdoor Pan/Tilt Security Wi-Fi Camera

360° All-Round Protection
Provides 360° horizontal & 130° vertical viewing range eliminating blind spots.

Person Detection
Smart AI identifies a person accurately sending instant notifications through the Tapo app.

2K Resolution
Sharper visuals in 2K resolution surpass standard 1080p.

Colour Night Vision
Capture vibrant color night vision up to 30 meters away.

IP65 Waterproof
The camera is protected against jets of water and dust ideal for outdoors.

Sound and Light Alarm
Activate the integrated siren along with the spotlight alarm to deter unwelcomed intruders.

Local and Cloud Storage
Save all your important moments to a microSD card2 (up to 512GB) or subscribe to Tapo Care for cloud service.

360° All-Round Protection
Provides 360° horizontal & 130° vertical viewing range enabling you to focus on more vital areas and eliminate blind spots. Assign points for the camera to patrol for dynamic monitoring.

Advanced Person Detection for What Matters
Smart AI identifies a person accurately reducing false alarm and sending real-time notifications through the Tapo app.

Build to Withstand Water & Dust
Tapo C510W is protected against jets of water and dust with IP65 weatherproof rating. It works well in rain snow dust and heat.

Customizable Sound and Light Alarm
Craft your own audio alarm and tailor the intensity of the dual spotlights to fit your needs. Activate the integrated siren along with the spotlight alarm to deter unwelcome intruders effectively.

Secure Local & Cloud Storage
Save all your important moments to a microSD card (up to 512 GB) or subscribe to Tapo Care for cloud service after a free trial.
Up to 512 GB local storage equals 840 hours (about 35 days) of 2K footage freeing you from being stuck with limited built-in storage.

Install Where You Value Most
Tapo C510W supports multiple installation options. You can install the camera on the wall eave or pole. Monitor the area where you care the most.

Specifications

Image Sensor
1/2.8 Progressive Scan CMOS Sensor

Lens
Focal Length: 3.9 mm
Aperture: F2.0
Field of View: 97.23°(Diagonal) 82.3°(Horizontal) 45.31°(Vertical)

Night Vision
850 nm IR LED (98 ft / 29.9 m)
Color Night Vision

Lighting
2x Built-in Spotlights

Interface and Button
1x RESET Button
1x MicroSD Card Slot

Pan/Tilt Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90°(135° Tilt Coverage)

Maximum Resolution
2304 x 1296 px

Frame Rate
30 fps

Video Compression
H.264

Live View
3DNR
WDR

Audio Input and Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
90 dB (Level measured at 4-inch/10-cm distance)

Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

AI Detection
Motion detection
Person detection
Tamper detection

Activity Zones
Yes

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
IEEE 802.11b/g/n 2.4 GHz Wi-Fi

RTSP
Yes

ONVIF
Yes

Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

Power Source
9V DC Power Adapter

Input Voltage
100-240 V 50/60 Hz

Output Voltage
9V 0.85A (DC Power)

Smart Integration
Google Assistant Amazon Alexa

Weather Resistance
IP65

System Requirements
Tapo App: iOS 9.0 or higher Andriod 4.4 or higher

Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)

Dimensions (W x D x H)
4.9 x 4.8 x 3.5 in (123.8 x 123 x 90 mm)

Package Content
Tapo C510W Camera
Power Adapter
Mounting Anchors
Mounting Screws
Bracket Screws
Mounting Template
Mounting Bracket
Waterproof Seal
Quick Start Guide
