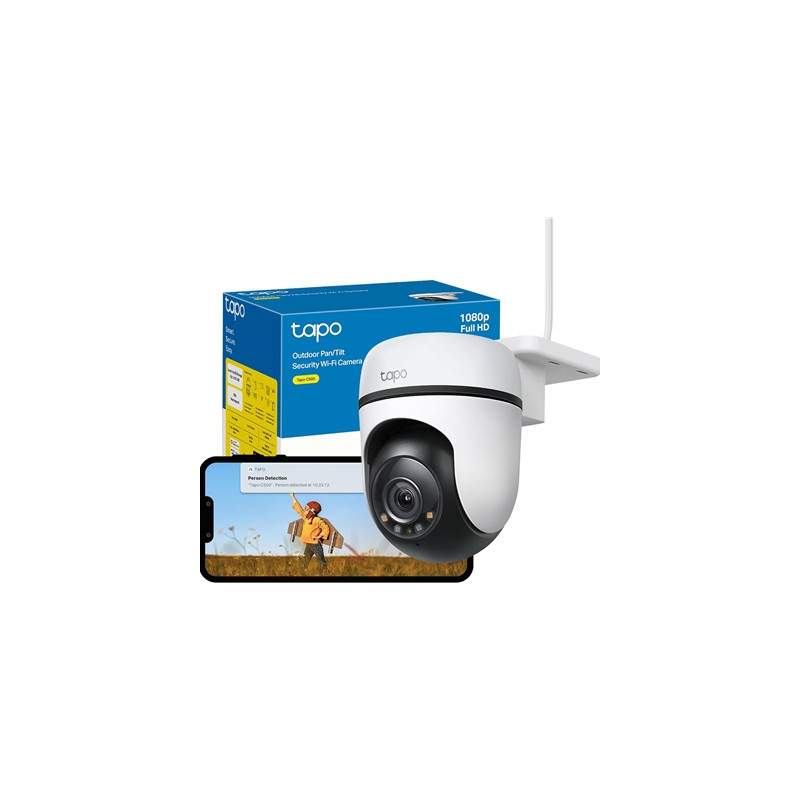

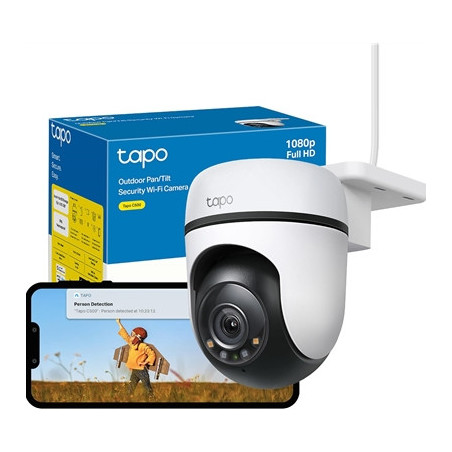

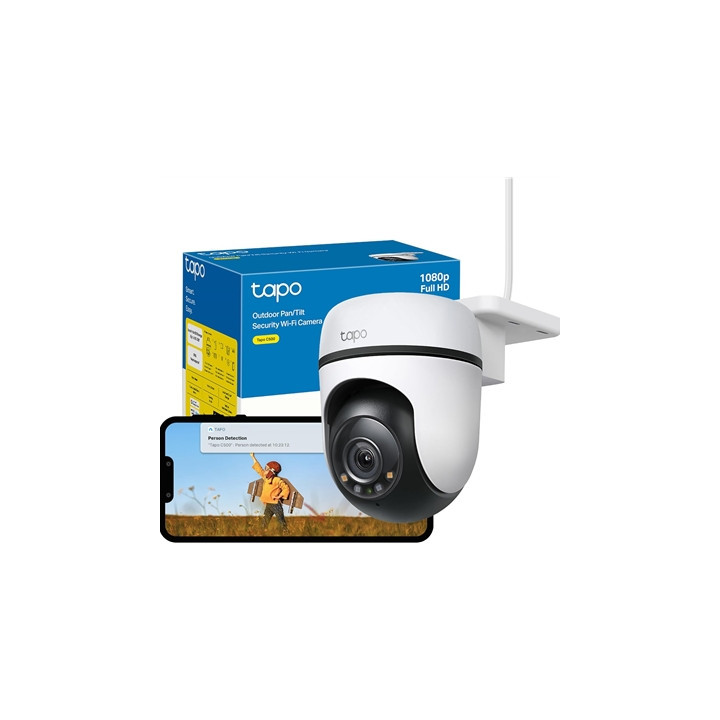

TP-Link Tapo C500 Outdoor Pan/Tilt Security Wi-Fi Camera

TP-Link Outdoor Pan/Tilt Security WiFi Camera

360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range eliminating blind spots.
Person Detection: Smart AI identifies a person accurately sending instant notifications through the Tapo app.
1080P Full HD: Capture more details to make every moment shine.
Color Night Vision: Capture virant color night vision up to 30 meters away.
IP65 Weatherproof: Tapo C500 is protected against jets of water and dust.
Sound and Light Alarm: Activate the integrated siren along with the spotlight alarm to deter unwelcomed intruders.
Local and Cloud Storage: Save all your important moments to a microSD card1 (up to 512GB) or subscribe to Tapo Care2 for cloud service.
Multiple Installations: Install the camera on the wall eave or pole3. Monitor the area where you care the most.

360° All-Round Protection
Track the motion with 360° horizontal & 130° vertical viewing range
or turn on the patrol mode to keep the camera cruising among up to 8 customized points.

Advanced Person Detection for What Matters
Smart AI identifies a person accurately reducing false alarm and sending real-time notifications through the Tapo app.

Build to Withstand Water & Dust
Tapo C500 is protected against jets of water and dust with IP65 weatherproof rating. It works well in rain snow dust and heat.

Customizable Sound and Light Alarm
Craft your own audio alarm and tailor the intensity of the dual spotlights to fit your needs. Activate the integrated siren along with the spotlight alarm to deter unwelcome intruders effectively.

Secure Local & Cloud Storage
Save all your important moments to a microSD card1 (up to 512 GB) or subscribe to Tapo Care2 for cloud service after a free trial.

Install Where You Value Most
Tapo C500 supports multiple installation options. You can install the camera on the wall eave or pole3. Monitor the area where you care the most.

Specifications

CAMERA

Image Sensor
1/3 Progressive Scan CMOS Sensor

Lens
Focal Length: 3.89 mm
Aperture: F2.0
Field of View: 85.5°(Diagonal) 73.5°(Horizontal) 41°(Vertical)

Night Vision
850 nm IR LED (98 ft / 29.9 m) color night vision

Interface & Button
1x RESET Button
1x MicroSD Card Slot

Pan/Tilt Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90°(132° Tilt Coverage)

VIDEO & AUDIO

Maximum Resolution
1920 x 1080 px

Frame Rate
30 fps

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input & Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
90 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

AI Detection
Motion detection
Person detection
Tamper detection

Activity Zones
Yes

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
IEEE 802.11b/g/n 2.4 GHz Wi-Fi

RTSP
Yes

ONVIF
Yes

Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source
9V DC Power Adapter

Input Voltage
100-240 V 50/60 Hz

Output Voltage
9.0V 0.85A (DC Power)

GENERAL

Smart Integration Google Assistant Amazon Alexa
Weather Resistance IP65
System Requirements Tapo App: iOS 9.0 or higher Android 4.4 or higher
Mounting Options Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature -30C~60C
Storage Temperature -40C~60C
Operating Humidity 10%~90% RH Non-condensing
Storage Humidity 0~90% RH Non-condensing
Dimensions ( W x D x H ) 4.9 x 4.8 x 3.5 in (123.8 x 123 x 90 mm)

Package Content
Tapo C500 Camera
Power Adapter
Mounting Anchors
Mounting Screws
Bracket Screws
Mounting Template
Mounting Bracket
Waterproof Seal
Quick Start Guide
