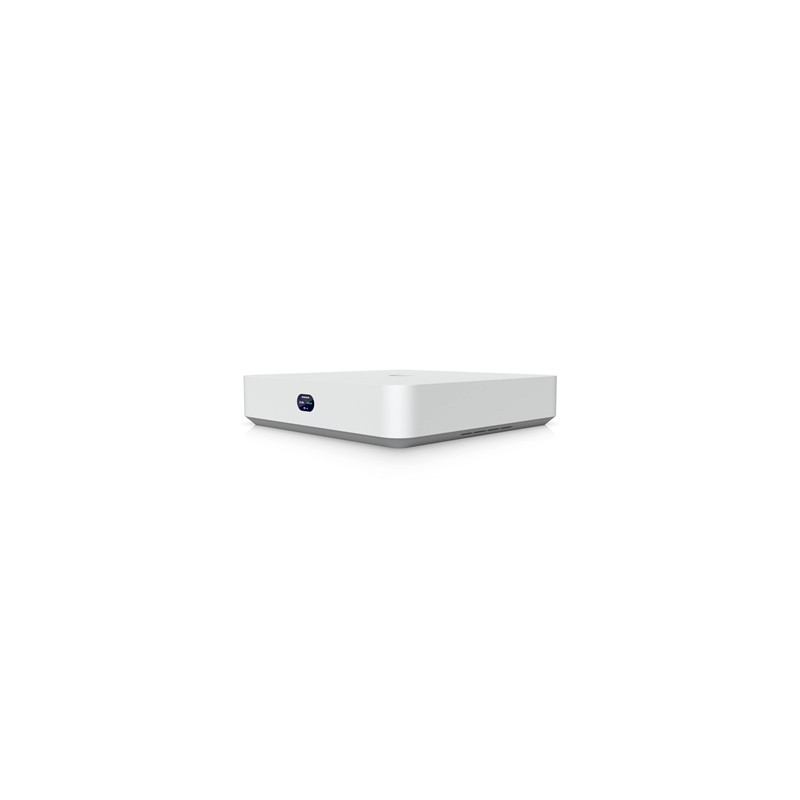

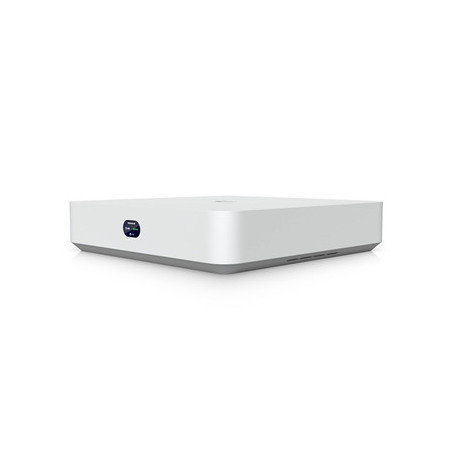

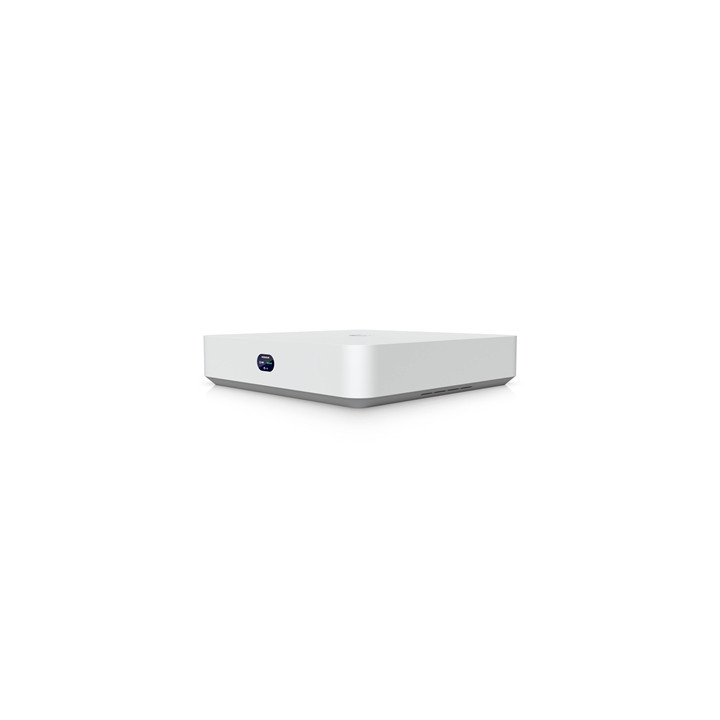

Ubiquiti UniFi Network Video Recorder Instant Compact UniFi Protect NVR with 3.5“ HDD support featuring an integrated 6-port PoE switch integrated HDMI View Port and a capacity for (6) 4K cameras or (15) Full HD cameras
£195.88
VAT included
Ubiquiti UniFi Network Video Recorder Instant Compact UniFi Protect NVR with 3.5 HDD support featuring an integrated 6-port PoE switch integrated HDMI View Port and a capacity for (6) 4K cameras or (15) Full HD cameras
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Ubiquiti Network Video Recorder Instant
Speficiations
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9)
UniFi Application Suite
Protect - Yes
Access - Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Managed Access Hubs
50
Storage Capacity
(1) 3.5 drive bay
Data Protection
Yes
Vantage Point
yes
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall Din rail mount (Included)
Door Access Support
Yes
Hardware
Hard Drive Capacity
(1) 3.5 HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input 100-240VAC 1.5A Max 50/60 Hz
Power Supply
AC/DC Internal 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14 screen
Weight
1.04 kg (2.3 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet - Yes
PoE - Yes
Ambient Operating Temperature
0 to 40C (32 to 104F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC IC CE Electrical Safety
Speficiations
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9)
UniFi Application Suite
Protect - Yes
Access - Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Managed Access Hubs
50
Storage Capacity
(1) 3.5 drive bay
Data Protection
Yes
Vantage Point
yes
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall Din rail mount (Included)
Door Access Support
Yes
Hardware
Hard Drive Capacity
(1) 3.5 HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input 100-240VAC 1.5A Max 50/60 Hz
Power Supply
AC/DC Internal 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14 screen
Weight
1.04 kg (2.3 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet - Yes
PoE - Yes
Ambient Operating Temperature
0 to 40C (32 to 104F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC IC CE Electrical Safety
