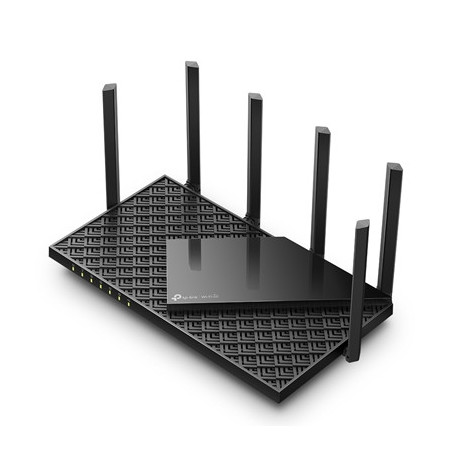

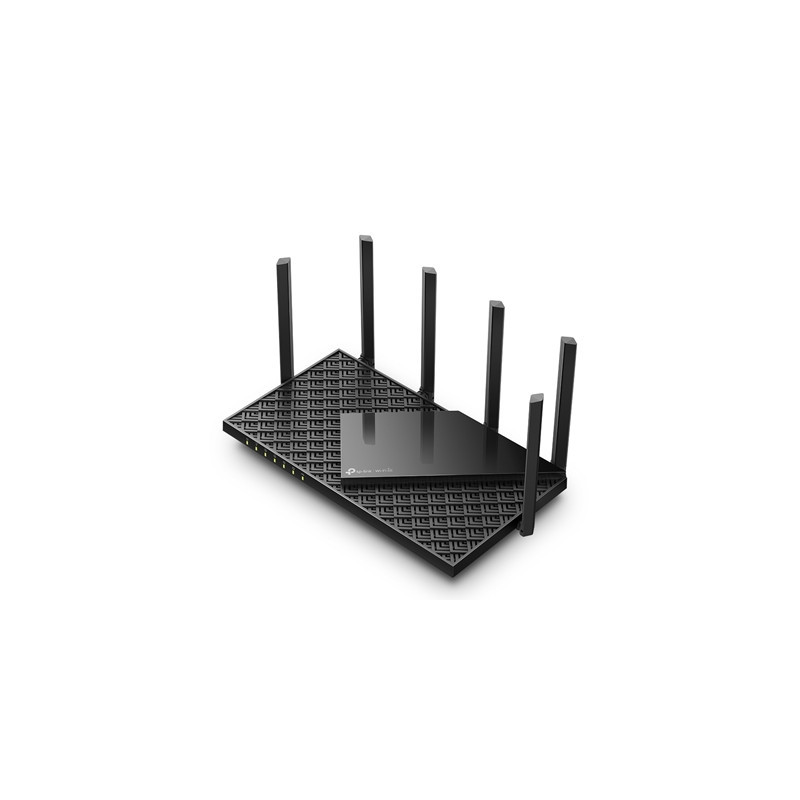

TP-Link Archer AXE75 AX5400 Tri-Band Wi-Fi 6E Router

AXE5400 Tri-Band
AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.

Cutting-Edge Processing
Armed with a 1.7 GHz Quad-Core CPU.

SuperSpeed USB 3.0
Up to 10x faster transfer speeds than USB 2.0.

Wi-Fi 6E Unleashed
The brand new 6 GHz band brings more bandwidth faster speeds and near-zero latency.

HomeShield
Customize your home network with enhanced security and control.

OneMesh
Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

Connect More Devices
OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.

Ultra-Low Latency
Enables more responsive gaming and video chatting.

Compatible with Alexa
Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth faster speed and lower latency.

Maximize All Your Device Speeds
Archer AXE75 provides WiFi speeds up to 5400 Mbps enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming immersive AR/VR gaming and blazing-fast downloads.

More RAM Better Processing
With an advanced chipset and high memory experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.

Connect More Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands eliminating latency and jitter.

WiFi Coverage Throughout Your Home
6x high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them especially to previously hard-to-reach areas.

USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple secure access from anywhere.

Flexibly Create Whole Home WiFi with Archer AXE75
OneMesh is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching for a stable connection.

Advanced Security for Your Everyday Devices
With TP-Link HomeShield enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.

WPA3: Stronger Security for Your Network
The latest WiFi security protocol WPA3 brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children
Block inappropriate content for your children and customize a time range for better online habits.

New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date just turn on the auto schedule.

Specification

Standards and Protocols
IEEE 802.11ax 6 GHz
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds
AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range
2-3 Bedroom Houses
6x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

WiFi Capacity
Very High
Tri-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth

Working Modes
Router Mode
Access Point Mode

Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
1x 6 GHz Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network

VPN Server
OpenVPN Server
PPTP VPN Server
L2TP VPN Server

VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client

WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Processor
1.7 GHz Quad-Core CPU

Ethernet Ports
1x Gigabit WAN Port
4x Gigabit LAN Ports

USB Support
1x USB 3.0 Port

Supported Partition Formats:
NTFS exFAT HFS+ FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power
12 V DC 2.5 A

Protocols
IPv4
IPv6

Service Kits
HomeShield

OneMesh
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

EasyMesh
Mesh networking creates smooth fast stable roaming. Archer C50 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones expand your network and fill your entire home with high-speed Wi-Fi.

Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
QoS by Device

Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link
NO-IP
DynDNS

Management Features
Tether App
Webpage

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DNS
Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 20001 Protocol: TCP
Port: 30001 Protocol: TCP
Port: 20002 Protocol: UDP

System Requirements
Internet Explorer 11+ Firefox 12.0+ Chrome 20.0+ Safari 4.0+ or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)

Certifications
FCC RoHS

WiFi Transmission Power
FCC: =29dBm (2.4 GHz) =28dBm (5 GHz) =22dBm (6 GHz)
CE: =17dBm (2.4 GHz) =27dBm (5 GHz) =20dBm (6 GHz)

WiFi Reception Sensitivity
2.4 GHz:
11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm 11ax HE160 MCS11:-53dBm

Dimensions (W x D x H)
10.7 x 5.8 x 1.9 in
(272.5 x 147.2 x 49.2 mm)

Package Content
Wi-Fi Router Archer AXE75
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
