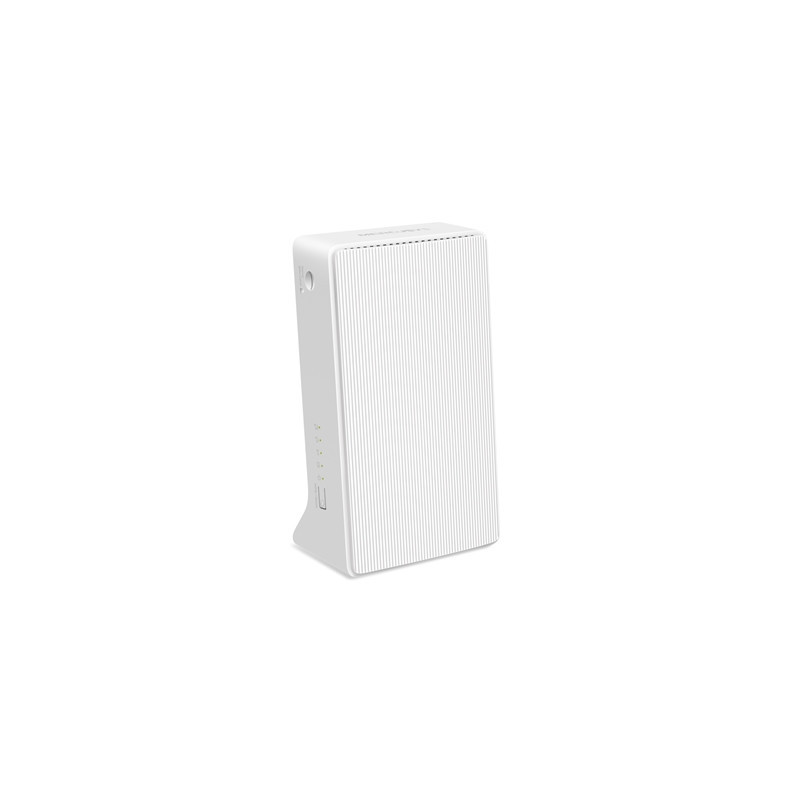

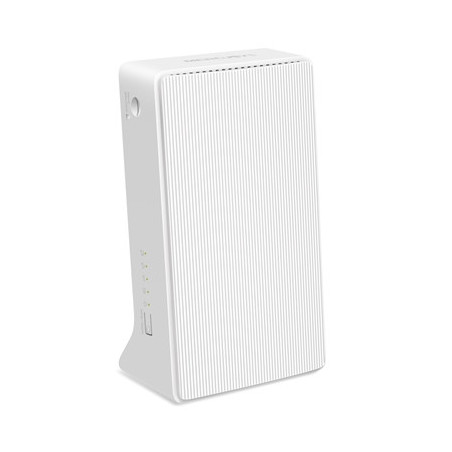

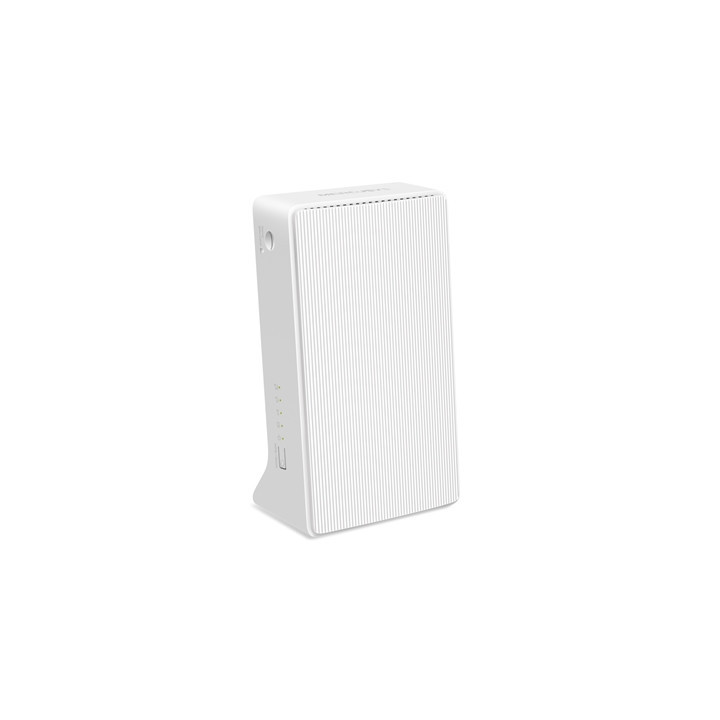

Mercusys MB230-4G 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

4G+ network– Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.

Plug a SIM card and play– No configurations needed compatibility of SIM cards are assured by years of field tests.

Dual Band 1200 Mbps WiFi– Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices.

Wi-Fi router mode– Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.


Specifications

Wireless

Wireless Standards
IEEE 802.11ac/a/b/g/n

Frequency
5 GHz 2.4 GHz

Signal Rate
867 Mbps at 5 GHz
300 Mbps at 2.4 GHz

Reception Sensitivity
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm

Transmission Power
2.4 GHz< 20dBm (EIRP)
5 GHz< 23dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE

Wireless Functions
Enable/Disable Wireless Radio Wireless Schedule WMM Wireless Statistics

Software

DHCP
Server

Hardware

Dimensions (W x D x H)
95x61.05x165.97 mm

Interfaces
1x Gigabit LAN/WAN Port
1x Gigabit LAN Port
1x Nano SIM Card Slot

Button
WPS/Reset Button

Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Others

Package Contents
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
