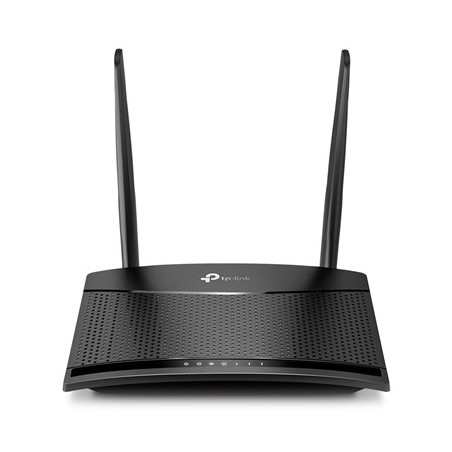

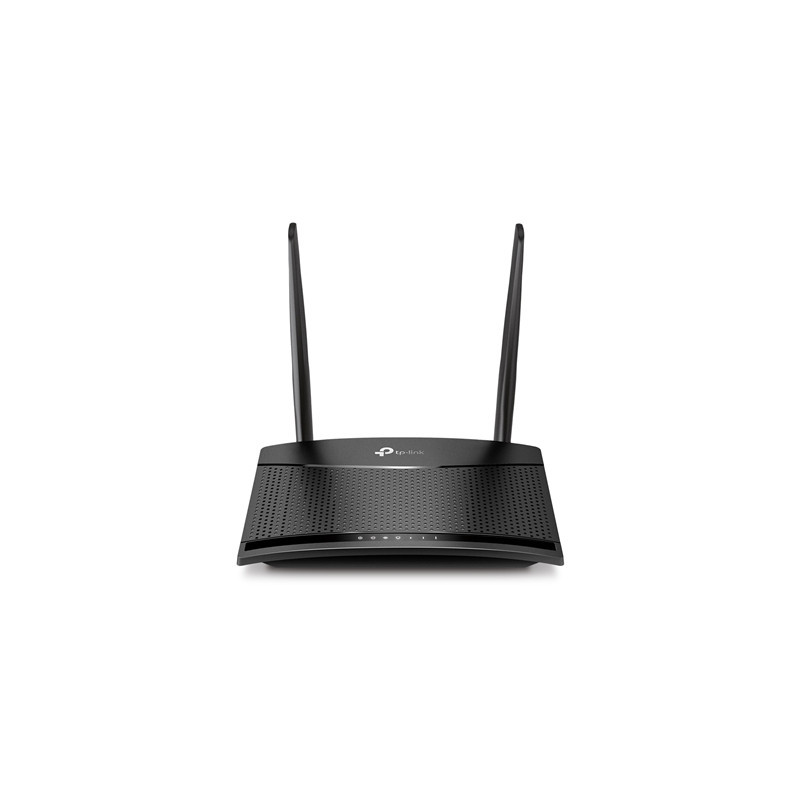

TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router

Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play – No configurations needed compatibility of SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies rapid file downloads and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi whether you’re at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices such as phones tablets and laptops at the same time. 2 LAN/WAN ports stand ready to provide internet for wired devices like desktop computers.

Specifications

Interface
1x 10/100Mbps LAN Port 1x 10/100Mbps LAN/WAN Port 1x Nano SIM Card Slot

Button
WPS/Reset Button

External Power Supply
9V/0.85A

Dimensions (W x D x H)
6.06 x 4.49 x 1.42 in ( 154 x 114 x 36 mm)

Antenna
2 Detachable External 4G LTE Antennas

Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz

Signal Rate
300 Mbps

Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmit Power
< 20 dBm (2.4 GHz)

Wireless Functions
Enable/Disable Wireless Radio Wireless Schedule WMM Wireless Statistics

WAN Failover
Yes

Wireless Security
64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK encryptions

Network Type
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Security
IPv4 SPI Firewall IP and MAC Address Binding

Operating Modes
3G/4G Router Wireless Router

WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management
Local Management Remote Management

DHCP
Server DHCP Client List Address Reservation

Port Forwarding
ALG Virtual Server Port Triggering UPnP DMZ

Dynamic DNS
DynDns NO-IP

Protocols
IPv4 IPv6

Guest Network
2.4 GHz Guest Network

Administration
Upgrade Firmware Factory Default System Log Diagnostic Tools

Certification
CE RoHS

Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10 MAC OS NetWare UNIX or Linux
Internet Explorer 11 Firefox 12.0 Chrome 20.0 Safari 4.0 or other
Java-enabled browser
Nano SIM Card

Package Contents
300 Mbps Wireless N 4G LTE TL-MR100
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
