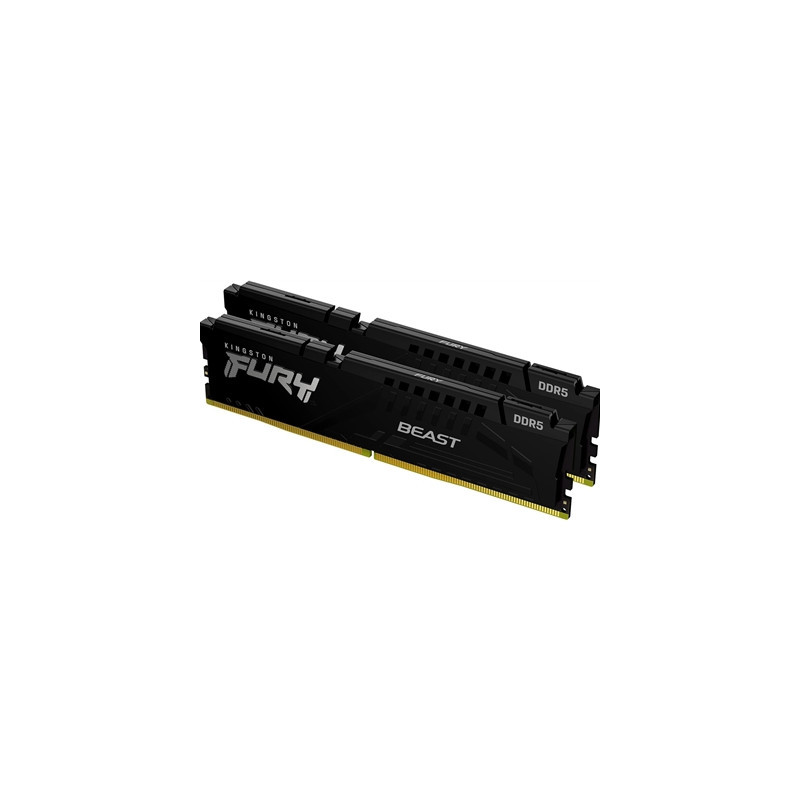

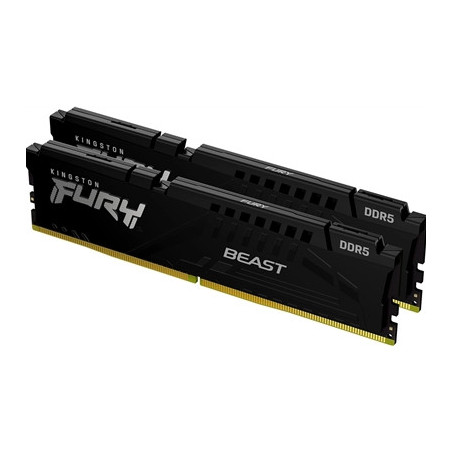

Kingston FURY Beast KF556C40BBK2-16 16GB (2x 8GB) DIMM System Memory 5600MHz DDR5 CL40 Black Intel XMP

Kingston FURY Beast DDR5 Memory - up to 5600MT/s.

Kingston FURY KF556C40BBK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx16 memory module based on four 1G x 16-bit FBGA components per module.
Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 16GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Memory Capacity
16GB (2x8GB)

Memory Type
DDR5

Module Type
DIMM

Memory Speed
5600MHz

Pin Configuration
288-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
CL40

Heat Sink
Yes (Black)

CL(IDD)
40 cycles

Row Cycle Time (tRCmin)
48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)

Row Active Time (tRASmin)
32ns(min.)

UL Rating
94 V - 0

Operating Temperature
0C to +85 C

Storage Temperature
-55C to +100C
