RGB Gaming Build Intel i9 14th Gen 5.80GHz 24 Core 32GB DDR5 RGB RAM 1TB NVMe Storage RTX4080 Super Liquid Cooler CPU WiFi Windows 11 Home

Product Description
RGB Gaming Build Intel i9 14th Gen 5.80GHz 24 Core 32GB DDR5 RGB RAM 1TB NVMe Storage RTX4080 Super Liquid Cooler CPU WiFi Windows 11 Home

Processor
Intel Core i9 14900K 24 Core Processor 32 Threads 3.0GHz up to 5.8GHz Turbo Raptor Lake Socket LGA 1700 36MB Cache

Processor Cores
24

Processor Threads
32

Core Clock Speed
3.50GHz

Core Boost Speed
5.80GHz

CPU Cooler
be quiet! Pure Loop 3 LX Liquid CPU Cooler Universal Socket 360mm Radiator 3 x LightWings LX PWM High Speed Stylish ARGB cooling block featuring 10 included lighting foils

Memory
Kingston FURY Beast KF556C36BBEAK2-32 32GB (2x 16GB) DIMM System Memory 5600MHz DDR5 CL36 Black RGB Intel XMP AMD EXPO

Memory Configuration
2 x 16GB
4 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD M.2 Interface PCIe Gen4 2280 Read 6000 MB/s Write 4000 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte NVIDIA GeForce RTX 4080 SUPER GAMING OC 16G Graphics Card 16GB GDDR6X 10240 CUDA Cores 2595 MHz Core Clock Triple Fan RGB 3x Display Ports / 1x HDMI Port
Core Clock
2535 MHz (Reference Card: 2505 MHz)
CUDA Cores
9728
Memory Clock
22.4 Gbps
Memory Size
16 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4

Graphics Card I/O
DisplayPort 1.4a x 3
HDMI 2.1a x 1

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard

Power Supply
be quiet! Dark Power 13 1000W Fully Modular 80 PLUS Titanium Quad Rail 83.3A 135mm Fan ATX 3.0 PSU
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
12VHPWR cables: 1
PCI-e 6+2-pin (GPU): 4
SATA: 12
PATA: 3

Motherboard
Gigabyte Z790 D AX Ultra Durable Intel 1700 Socket Motherboard ATX 4x DDR5 Slots 3x M.2 Sockets 2.5GbE LAN Wi-Fi 6E

Expansion Slot
CPU:
1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots supporting PCIe 3.0 and running at x1 (PCIEX1_2 PCIEX1_3)

Storage
CPU:
1 x M.2 connector (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connectors (Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connectors (Socket 3 M key type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for NVMe SSD storage devices
RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices

Rear I/O
1 x PS/2 keyboard/mouse port
1 x USB Type-C port with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Chassis

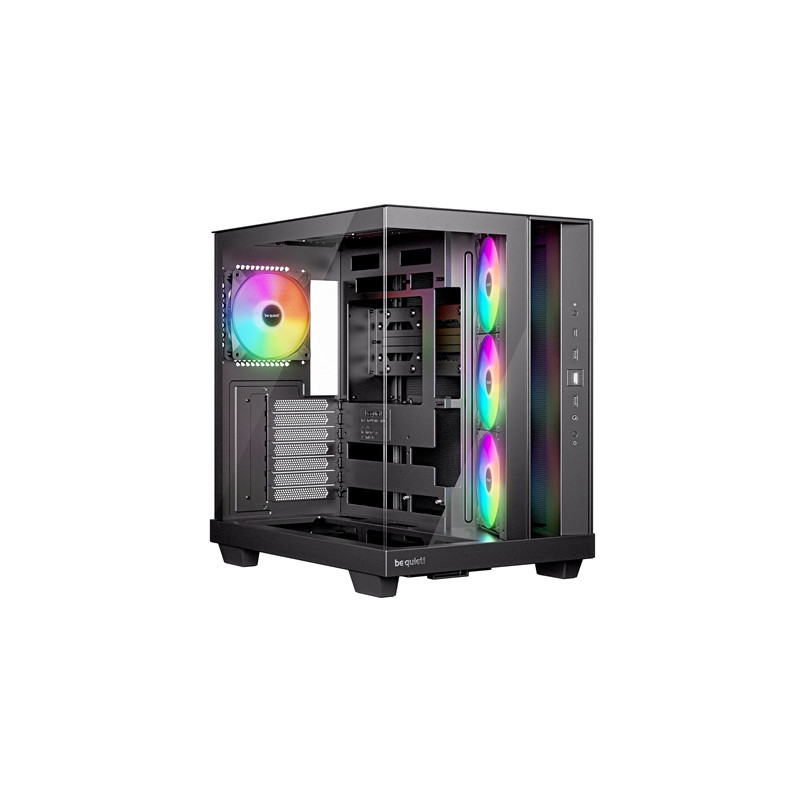

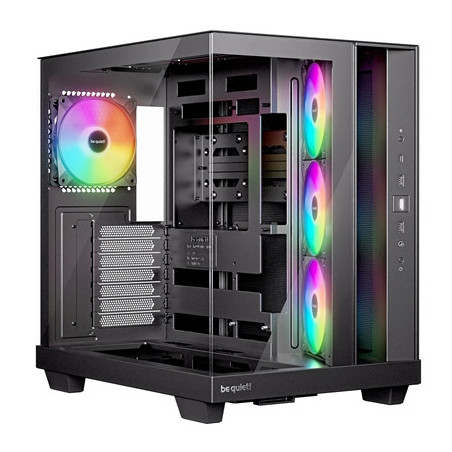

be quiet! Light Base 500 LX BGW85 Mid-Tower Case Tempered Glass 4 x ARGB Light Wings LX Fans High Airflow ATX Case USB-C 10Gbps 400mm GPU Support Vertical GPU Mount Black

Drive Bays
1 x 3.5 bay
2 x 2.5 bays

IO Ports
1 x USB 3.2 Gen2 Type-C (10 Gbps)
2 x USB 3.2 Gen1 Type-A
1 x 3.5 mm audio jack combo

Cooling
Preinstalled Fans: 4 x Light Wings LX 120 mm PWM ARGB (3 side 1 rear)
Maximum Fan Installation:
Top: 2 x 140 mm / 3 x 120 mm
Side: 3 x 120 mm
Rear: 1 x 120 mm / 1 x 140 mm
Bottom: 3 x 120 mm

Radiator Support:
Top: 120 / 240 / 280 / 360 mm
Side: 120 / 240 mm
Rear: 120 mm

Dimensions
Dimensions (L x W x H): 432 x 305 x 436 mm
Net Weight: Approx. 10.95 kg

Package Weight
12.85 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
