RGB Gaming Build AMD Ryzen 5 7600X3D 6 Core 12 Thread 4.70GHz 32GB DDR5 RGB RAM 1TB NVMe Storage RTX4070 Super Liquid Cooler CPU WiFi Windows 11 Home

Product Description
RGB Gaming Build AMD Ryzen 5 7600X3D 6 Core 12 Thread 4.70GHz 32GB DDR5 RGB RAM 1TB NVMe Storage RTX4070 Super Liquid Cooler CPU WiFi Windows 11 Home

Processor
AMD Ryzen 5 7600X3D 6 Core with 12 Threads 4.10GHz base clock speed Up to 4.70GHz Boost Clock 5nm FinFet Process 96MB L3 Cache Dual Channel DDR5 Controller

Processor Cores
6

Processor Threads
12

Core Clock Speed
4.10GHz

Core Boost Speed
4.70GHz

CPU Cooler
Antec Skeleton 240 ARGB Liquid CPU Cooler Universal Socket Black 240mm Radiator PWM up to 2000 RPM Cooling Fans Addressable RGB LED Lighting

Memory
Kingston FURY Beast KF556C36BBEAK2-32 32GB (2x 16GB) DIMM System Memory 5600MHz DDR5 CL36 Black RGB Intel XMP AMD EXPO

Memory Configuration
2 x 16GB
4 Lanes (2 occupied)

SSD Drive
Adata Legend 860 (SLEG-860-1000GCS) 1TB NVMe SSD PCIe Gen4 M.2 Interface 2280 Read 5000 MB/s Write 3000 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 5000MB/S
Write: Up to 3000MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte NVIDIA GeForce RTX 4070 SUPER WINDFORCE OC 12G Graphics Card 12GB GDDR6X 7168 CUDA Cores 2505 MHz Core Clock Triple Fan
Core Clock
2505 MHz (Reference Card: 2475 MHz)
CUDA Cores
7168
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680 x 4320
Multi-view
4

Graphics Card I/O
DisplayPort 1.4a x 3
HDMI 2.1a x 1

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Prevo 1200mbps AC1200 PCI-Express Dual Band Wireless AC Adapter with Detachable Antennas
Interface: PCI Express
Frequency: 2.4 & 5GHz Dual Band support
Signal Rate (Dynamic): 5GHz - 11ac up to 867 Mbps 11n up to 300 Mbps
11a up to 54 Mbps. 2.4 GHz -11n up to 300 Mbps 11g up to 54 Mbps 11b up to 11 Mbps Security: 64/128-bit WEP Encryption WPA WPA-PSK WPA2 WPA2-PSK TKIP/AES Configuration: Plug & Play Setup & Installation
Operating System: Windows MacOS Linux

Power Supply
be quiet! Power Zone 2 750W PSU - 80 PLUS Platinum Semi-Passive Cooling Pure Wings 3 Fan PCIe 5.1/ATX 3.1 Compatibility
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): 1
12VHPWR Cables: 1
PCI-e 6+2-pin (GPU): 3
PCI-e 6-pin (GPU): None
SATA: 6
PATA: 1
FDD (Floppy): None

Motherboard
Gigabyte B850M DS3H AMD AM5 Socket Motherboard Micro-ATX 4x DDR5 Slots 2x M.2 Sockets 2x USB-C Port 2.5GbE LAN 2x DisplayPorts / 1x HDMI Port

Expansion Slot
1 x PCI Express x16 slot (PCIEX16) integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage
1 x M.2 connector (M2A_CPU) integrated in the CPU supporting Socket 3 M key type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU) integrated in the CPU supporting Socket 3 M key type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0 RAID 1 and RAID 10 support for SATA storage devices

Rear I/O
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Chassis

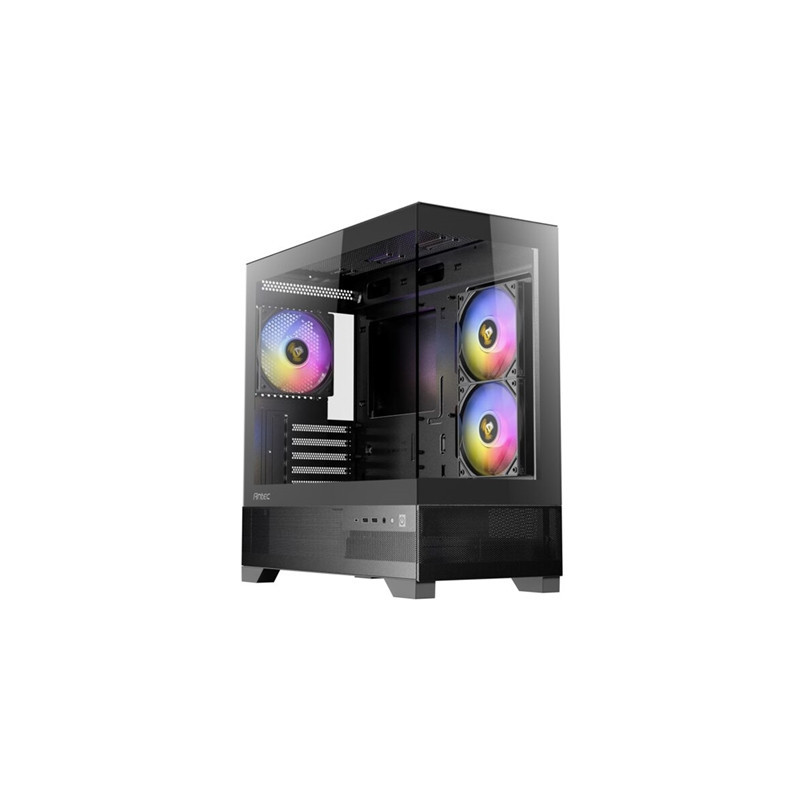

ANTEC CX500M Micro Tower Gaming Case Black ARGB 2x USB 3.0 / 1 x USB Type-C Tempered Glass Side Panel

Drive Bays
3.5 / 2.5: 2 / 1
2.5: 1

IO Ports
Power
LED Control Button
USB 3.0 x 2
Type-C 3.2 Gen 2 x 1
Headphone/Mic Combo Jack

Cooling
Fan Support:
Top: 3 x 120mm / 2 x 140mm
Side: 2 x 120mm
Power Supply Shroud: 3 x 120mm
Rear: 120mm

Included Fans:
2 x 120mm ARGB reverse fans (Right side)
1 x 120mm ARGB fan (Rear)

Radiator Support:
Top: 120 / 140 / 240 / 280 / 360mm

Dimensions
436 x 210 x 446mm (DxWxH)

Package Weight
12.40 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
