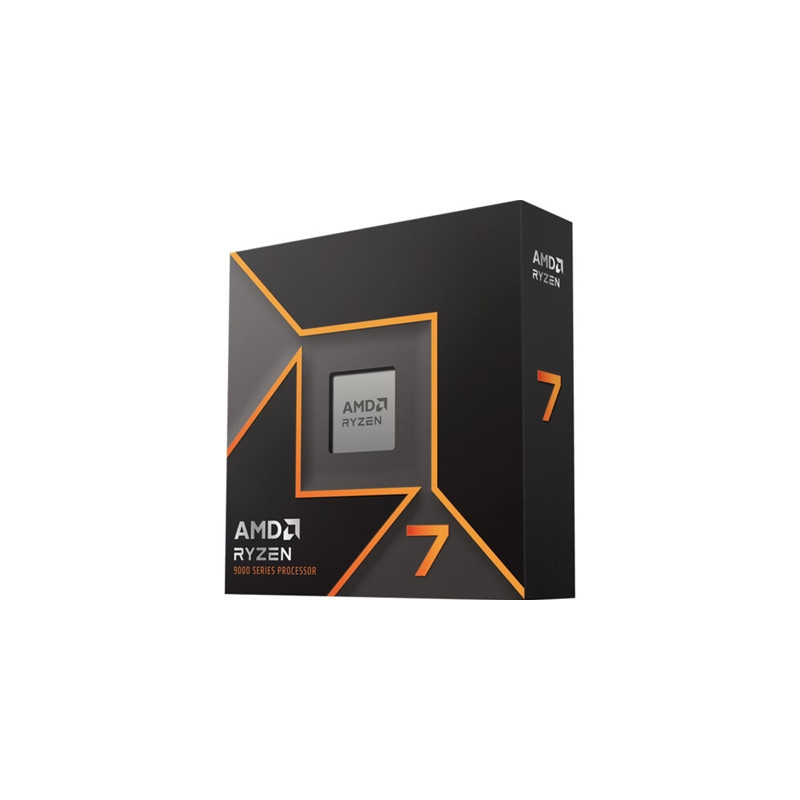

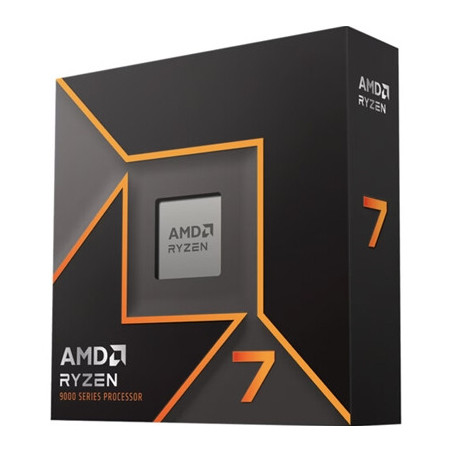

AMD Ryzen 7 9700X with Radeon Graphics 8 Core AM5 Processor 16 Threads 3.8Ghz up to 5.5Ghz Turbo 32MB Cache 65W No Fan

AMD Ryzen 7 9700X 3.8 GHz 8-Core AM5 Processor

Key Features
8 Cores & 16 Threads
3.8 GHz Base Clock
5.5 GHz Max Boost Clock
Socket AM5
8MB L2 & 32MB L3 Cache
DDR5-5600 ECC Memory
Integrated AMD Radeon Graphics
Unlocked Processor
Supports PCIe 5.0 x16
Zen 5 Architecture

Take your computing experiences to a new level with the AMD Ryzen 7 9700X 3.8 GHz 8-Core AM5 Processor. Featuring 8 cores and 16 threads with 32MB of L3 Cache this desktop processor quickly loads and multitasks demanding applications.

Designed for socket AM5 motherboards using the powerful Zen 5 4nm architecture this processor offers exceptional performance. With a base clock speed of 3.8 GHz and a max boost clock speed of 5.5 GHz the Ryzen 7 9700X delivers the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 5 technology and 5600 MHz ECC DDR5 RAM with compatible motherboards.

This processor has a 65W TDP (Thermal Design Power) and does not include a cooling solution. Integrated Radeon Graphics delivers rich visuals.

Precision Boost 2
AMD Ryzen processors monitor the system's energy consumption temperatures and other factors to automatically raise clock speeds allowing applications to perform faster.

Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.

AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU GPU and DDR5 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.

System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility which features a histogram of per-core clock rates and temperature including average and peak readings.

Specifications

General

CPU Model
AMD Ryzen 7 9700X

CPU Socket
AM5

Manufacturing Process
4 nm

Maximum CPU Configuration
1S

Maximum Number of PCIe Lanes
28 (Revision 5.0)

Unlocked
Yes

Performance

Number of Cores
8

Number of Threads
16

Base Clock Speed
3.8 GHz

Maximum Boost Speed
5.5 GHz

L3 Cache
32 MB

Memory Support

Maximum Capacity
192 GB

Memory Support
DDR5 Up to 5600 MHz

ECC Memory
Yes

Channel Architecture
Dual Channel

Power

Thermal Design Power (TDP Max)
65 W

Included Thermal Solution
No

Maximum Temperature
203°F / 95°C

Thermal Monitoring Technologies
Yes

Technology

AES Support
Yes

Extension
AVX AVX 2.0 AVX-512 FMA3 SSE 4.1/4.2

Instruction Set
64-Bit

Virtualization
Yes: AMD-V

Performance Technologies
Precision Boost 2

Integrated Graphics

Integrated Graphics
AMD Radeon

Output Support
DisplayPort HDMI

Base Clock Speed
2200 MHz

Warranty
Limited 3-Year Manufacturer Warranty
