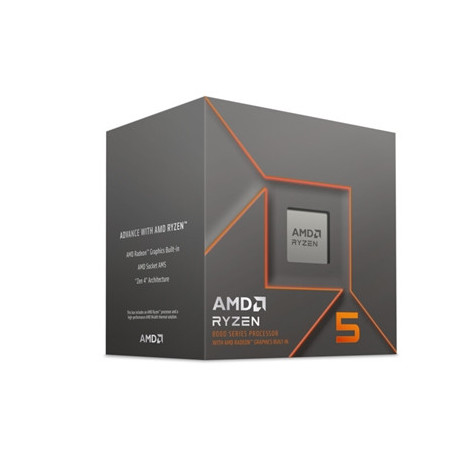

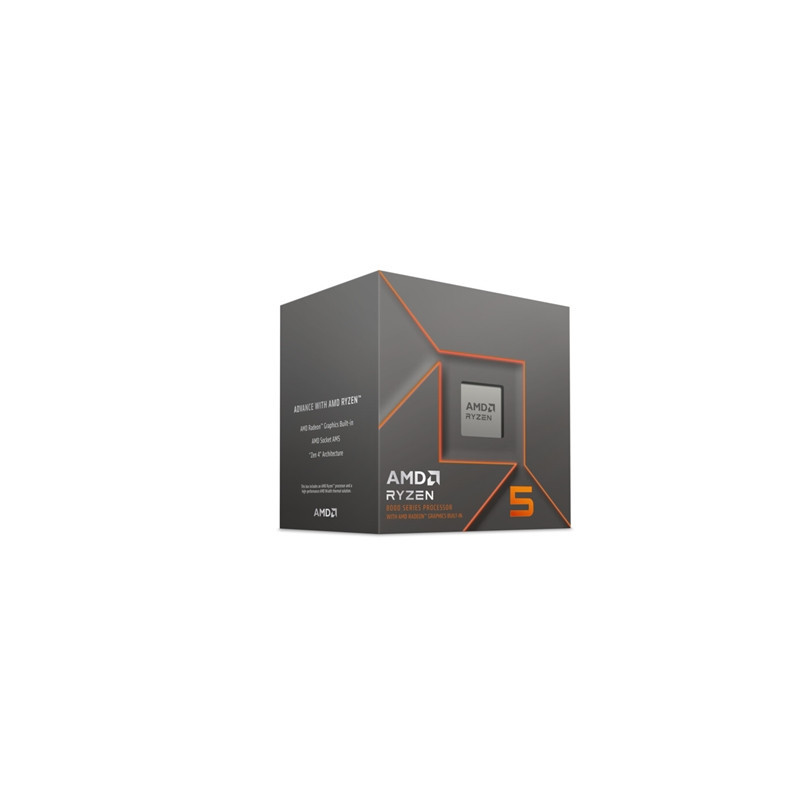

AMD Ryzen 5 8500G 3.7GHz 6 Core AM5 Processor 12 Threads 5.0GHz Boost Radeon Graphics

Performance Redefined: AMD Ryzen 5 8500G 3.7GHz 6 Core AM5 Processor
Embark on a journey of superior performance with the AMD Ryzen 5 8500G processor. Featuring a robust 3.7GHz base clock and a dynamic 6-core configuration this AM5 processor is designed to elevate your computing experience. With 12 threads and an impressive 5.0GHz boost clock the Ryzen 5 8500G ensures responsive multitasking for seamless productivity.

Effortless Multitasking: 12 Threads and 5.0GHz Boost
Experience unparalleled efficiency with 12 threads that effortlessly handle a variety of tasks ensuring a smooth and responsive computing experience. The AMD Ryzen 5 8500G's impressive 5.0GHz boost clock adds an extra layer of speed making it ideal for handling demanding applications content creation and multitasking with ease.

Immersive Visuals: Radeon Graphics for Exceptional Quality
Elevate your visual experience with the integrated Radeon Graphics. The AMD Ryzen 5 8500G processor delivers exceptional graphics performance eliminating the need for a separate graphics card. Immerse yourself in high-quality visuals whether you're gaming streaming or engaging in creative projects.


Specifications

General Specifications

Platform:
Desktop

Product Family:
AMD Ryzen™ Processors

Product Line:
AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics

AMD PRO Technologies:
No

Consumer Use:
Yes

Regional Availability:
Global

Former Codename:
Phoenix

Architecture:
2 x Zen4 4 x Zen4c

# of CPU Cores:
6

Multithreading (SMT):
Yes

# of Threads:
12

Max. Boost Clock:
Up to 5.0GHz

Max Zen4c Clock:
Up to 3.7GHz

Base Clock:
3.5GHz

Zen4 Base Clock:
4.1GHz

Zen4c Base Clock:
3.2GHz

L2 Cache:
6MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 4nm FinFET

CPU Compute Die (CCD) Size:
137mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

AMD EXPO™ Memory Overclocking Technology:
Yes

Precision Boost Overdrive:
Yes

Curve Optimizer Voltage Offsets:
Yes

AMD Ryzen™ Master Support:
Yes

CPU Socket:
AM5

CPU Boost Technology:
Precision Boost 2

Instruction Set:
x86-64

Supported Extensions:
AES AMD-V AVX AVX2 AVX512 FMA3 MMX(+) SHA SSE SSE2 SSE3 SSE4.1 SSE4.2 SSE4A SSSE3 x86-64

Max. Operating Temperature (Tjmax):
95°C

OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

Native USB 4 (40Gbps) Ports:
2

Native USB 3.2 Gen 2 (10Gbps) Ports:
2

Native USB 2.0 (480Mbps) Ports:
1

PCI Express® Version:
PCIe® 4.0

Native PCIe® Lanes (Total/Usable):
14 / 10

NVMe Support:
Boot RAID0 RAID1

System Memory Type:
DDR5

Memory Channels:
2

Max. Memory:
256GB

System Memory Subtype:
UDIMM

Max Memory Speed:
2x1R DDR5-5200
2x2R DDR5-5200
4X1R DDR5-3600
4x2R DDR5-3600

Graphics Capabilities

Integrated Graphics:
Yes

Graphics Model:
AMD Radeon™ 740M

Graphics Core Count:
4

Graphics Frequency:
2800 MHz

DirectX® Version:
12

DisplayPort™ Version:
2.1

DisplayPort Extensions:
HDR Metadata
Adaptive-Sync
UHBR10

DisplayPort Max Refresh Rates (SDR):
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR):
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz

HDMI® Version:
2.1

HDCP Version Supported:
2.3

USB Type-C® DisplayPort™ Alternate Mode:
Yes

Multi-Monitor Support:
Yes

Max Displays:
4

AMD FreeSync™:
Yes

Wireless Display:
Miracast

Max Video Encode Bandwidth (SDR):
1080p630 8bpc H.264
1440p373 8bpc H.264
2160p175 8bpc H.264
1080p630 8bpc H.265
1440p373 8bpc H.265
2160p175 8bpc H.265
4320p43 8bpc H.265
1080p864 8/10bpc AV1
1440p513 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1

Max Video Decode Bandwidth:
1080p60 8bpc MPEG2
1080p60 8bpc VC1
1080p786 8/10bpc VP9
2160p196 8/10bpc VP9
4320p49 8/10bpc VP9
1080p1200 8bpc H.264
2160p300 8bpc H.264
4320p75 8bpc H.264
1080p786 8/10bpc H.265
2160p196 8/10bpc H.265
4320p49 8/10bpc H.265
1080p960 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1

AMD SmartAccess Memory:
Yes
