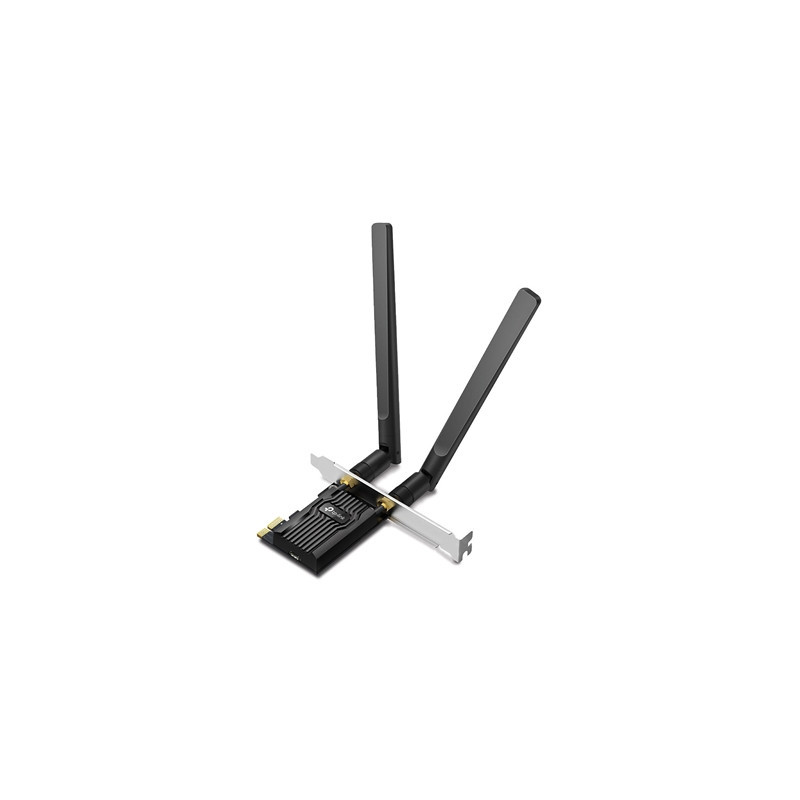

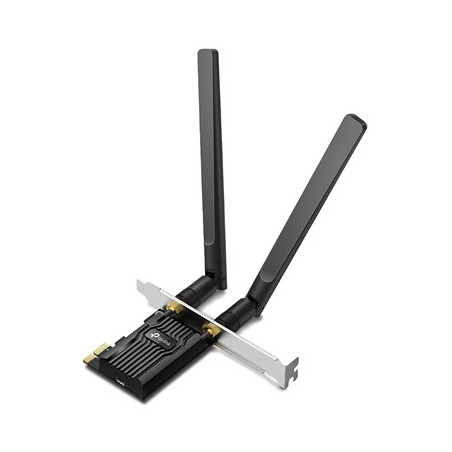

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Boost your internet speed and connectivity with the TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter. Experience lightning-fast wireless performance and seamless connectivity for your desktop computer. This cutting-edge adapter supports the latest Wi-Fi 6 technology delivering speeds up to 1.8 Gbps and reducing latency for smoother online gaming streaming and downloading.

With its dual-band capability you can enjoy a more stable and reliable connection by utilizing the 2.4 GHz band for everyday tasks and the 5 GHz band for bandwidth-intensive activities. Say goodbye to buffering and lag as you unleash the full potential of your network with this high-performance adapter.

The Archer TX20E also features Bluetooth 5.2 technology enabling you to connect various devices such as wireless headphones keyboards and mice with ease. Experience faster and more stable data transfers while enjoying a seamless connection between your computer and Bluetooth-enabled devices.

Installing the Archer TX20E is a breeze with its PCI Express interface ensuring compatibility with most desktop computers. The included magnetic antenna base allows for flexible placement and optimal signal reception ensuring maximum coverage and minimizing dead spots.

Upgrade your desktop computer's wireless capabilities and enjoy unparalleled speed stability and versatility with the TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter. Enhance your online experience and stay connected like never before.


Specifications

Dimensions:
4.76 x 3.09 x 0.82 in
(120.8 x 78.5 x 20.9 mm)


Antenna Type:
Two High-Gain Dual Band Antennas


Chipset:
Realtek Wi-Fi 6 Chipset

WIRELESS FEATURES:

Wireless Standards:

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

WLAN Signal Rate:
5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)


WLAN Reception Sensitivity:
5 GHz :
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm


WLAN Transmit Power:
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes:
Infrastructure mode


Wireless Security:
Support 64/128 bit WEP WPA/WAP2/WPA3 WPA-PSK/WPA2-PSK 802.1x


Modulation Technology:
DBPSK DQPSK CCK OFDM 16-QAM 64-QAM 256-QAM 1024QAM

OTHERS:

Certification:
CE FCC RoHS

Package Contents:
Archer TX20E
Two High-Gain Dual Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD

System Requirements:
Windows 11/10(64-bit) only
