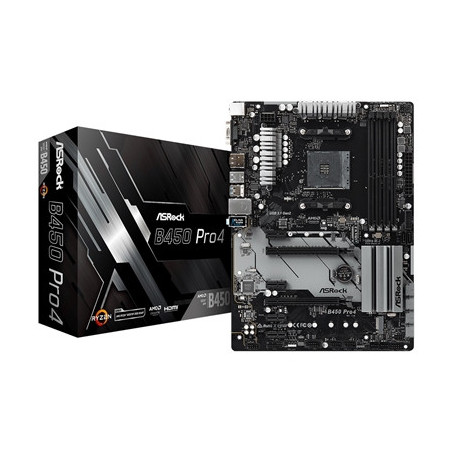

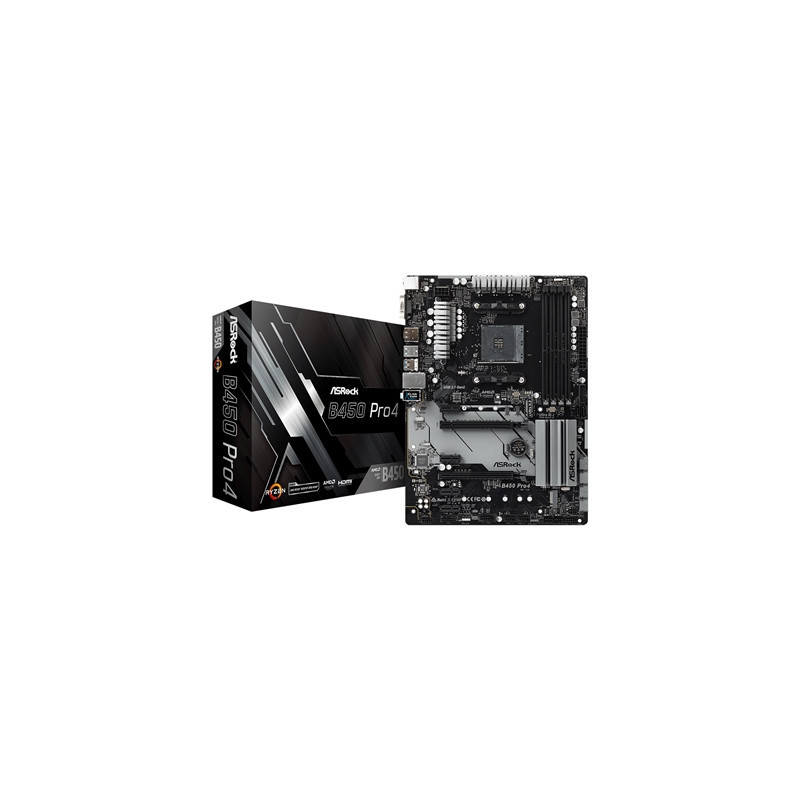

ASRock B450 Pro4 R2.0 Super Alloy AMD AM4 Socket Motherboard ATX 4x DDR4 Slots 2x M.2 Sockets GbE LAN 1x D-Sub / 1x Display

WINDOWS 11 READY

- AMD AM4 Socket
- Supports DDR4 3200+ (OC)
- 2 PCIe 3.0 x16 4 PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output: HDMI Display Port D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec) ELNA Audio Caps
- 6 SATA3 1 Ultra M.2 (PCIe Gen3 x4) 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.1 Gen2 (Rear Type A+C)
- 6 USB 3.1 (2 Front 4 Rear)
- Realtek Gigabit LAN

Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

2oz Copper
It comes with 2 ounces copper inner layers using only carefully selected copper materials for PCB layers delivering lower temperature and higher energy efficiency for overclocking.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.

Specifications

Features
ASRock USB 3.1 Gen2
ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
Premium Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB Audio LAN Ports)
ASRock Live Update & APP Shop

CPU
AMD AM4 Socket
Digi Power design
9 Power Phase design
Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)

Chipset
AMD Promontory B450

Memory
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 non-ECC un-buffered memory
Max. capacity of system memory: 64GB
15µ Gold Contact in DIMM Slots

BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
Supports Plug and Play
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
DRAM Voltage multi-adjustment

Graphics
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
DirectX 12 Pixel Shader 5.0
Max. shared memory 2GB
Three graphics output options: D-Sub HDMI and DisplayPort 1.2
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with HDMI and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports

Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps

LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)
AMD Ryzen series CPUs (Raven Ridge)
2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)
4 x PCI Express 2.0 x1 Slots
Supports AMD Quad CrossFireX™ and CrossFireX™

Storage
4 x SATA3 6.0 Gb/s Connectors support RAID (RAID 0 RAID 1 and RAID 10) NCQ AHCI and Hot Plug
2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061 support NCQ AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1) supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge Raven Ridge and Pinnacle Ridge)
1 x M.2 Socket (M2_2) supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

Connectors
1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
1 x Addressable LED Header
1 x AMD Fan LED Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.2
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock A-Tuning
ASRock Polychrome RGB
ASRock XFast LAN
UEFI
ASRock Full HD UEFI
ASRock Instant Flash
ASRock Easy RAID Installer

Support CD
Drivers Utilities AntiVirus Software (Trial Version) Google Chrome Browser and Toolbar

Accessories
Quick Installation Guide Support CD I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets

Hardware Monitor
Temperature Sensing: CPU MB
Fan Tachometer: CPU CPU/Water Pump Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU CPU/Water Pump Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU CPU/Water Pump Chassis/Water Pump Fans
Voltage monitoring: +12V +5V +3.3V Vcore

Form Factor
ATX Form Factor: 12.0-in x 8.8-in 30.5 cm x 22.4 cm

OS
Microsoft® Windows® 10 64-bit
