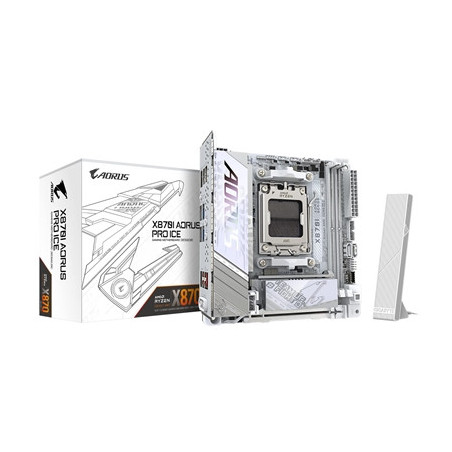

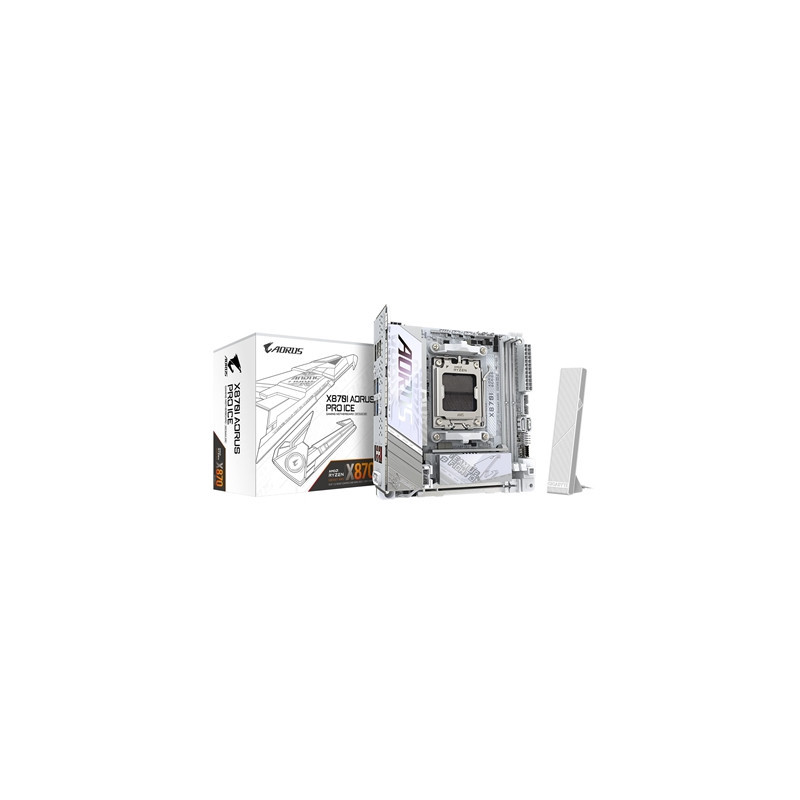

Gigabyte X870I AORUS PRO ICE AMD AM5 Socket Motherboard Mini-ITX 2x DDR5 Slots 2x M.2 Sockets 3x USB-C Port Fitted I/O Shie

X870I AORUS PRO ICE

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital 8+2+1 phases VRM solution
Dual Channel DDR5: 2 x DIMMs with AMD EXPOMemory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI: Multi-Theme AIO Fan Control and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage: 2 x M.2 slots including 1 x PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: USB4 Type-C with DP-Alt HDMI
Reliable Audio: Realtek ALC4080 HD Audio & Audiophile Grade Capacitors
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

AORUS AI SNATCH Bullet Point
Unleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory Boost
With just a single click unleash the full potential of DDR5 memory instantly boosting your gaming and work efficiency.

One-Click Acceleration:
Enhance DDR5 speeds with a single click.
Real time Analyze
OC accuracy UP
EZ to Pro

Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
Shielded Memory Routing:
Daisy-Chained Routing
10-Layer Server-Grade PCB

Digital VRM Design
Delivers consistent high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter EZ to install.

Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard the PCB holds a fundamental and vital influence on system performance.

All-round Connectivity
Experience ultimate connectivity with next-generation network storage and Wi-Fi solutions delivering lightning-fast data transfer speeds.

Born from Ultra Durable
Technology embodies our commitment to excellence providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community we democratize next-level computing power.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking 1 capabilities featuring faster dual-channel DDR5 memory support AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000 8000 and 7000 Series processors.

Specifications

CPU
AMD Socket AM5 support for:
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors

Chipset
AMD X870

Memory
Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
1 x USB4 USB Type-C port supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Integrated Graphics Processor with AMD Radeon Graphics support:
1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz

Audio
Realtek ALC4080 CODEC
High Definition Audio
2-channel

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module
Realtek Wi-Fi 7 RTL8922AE
802.11a b g n ac ax be supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Storage Interface
1 x M.2 connector (M2A_CPU) integrated in the CPU supporting Socket 3 M key type 2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB) integrated in the Chipset supporting Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices

USB
CPU+ASMedia USB4 controller:
1 x USB4 USB Type-C port on the back panel
CPU:
1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C header with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors
1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x USB4 USB Type-C port (DisplayPort (Note))
1 x USB Type-C port with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit

Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
