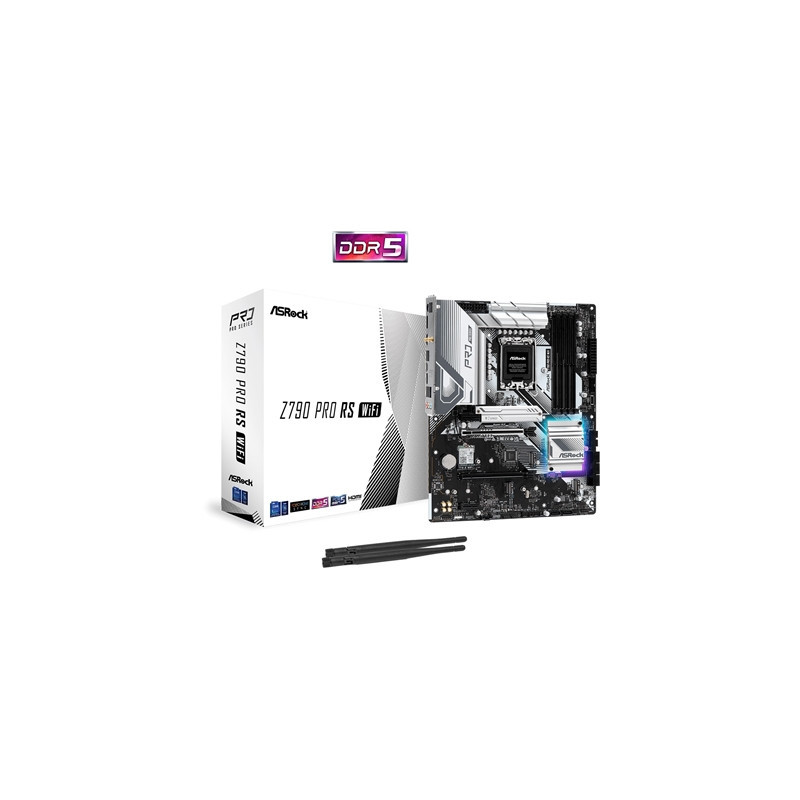

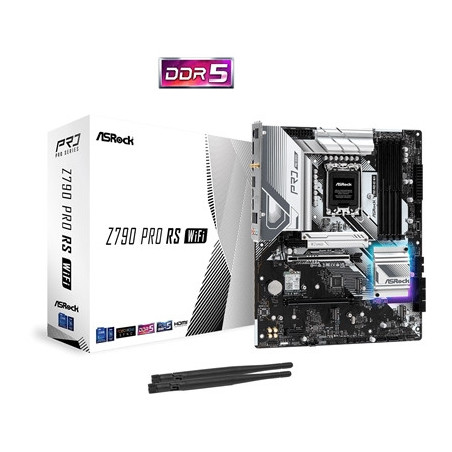

ASRock Z790 Pro RS WiFi Intel 1700 Socket Motherboard ATX 4x DDR5 Slots 5x M.2 Sockets 2x USB-C Port Fitted I/O Shield 2.5

Modern and futuristic with the attractive specifications and perfect balance the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept ASRock does not compromise on any details. This motherboards is built with low-loss materials enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this ASRock has implemented a trouble free protection circuit on every DDR5 motherboard lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot the SMT type PCIe slot improves signal flow and maximize stability under high speed a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps ready to unleash the full potential of future high end graphic cards.

Unique Feature

Superb Productivity
PCIe Gen5 (Graphics)
Dual Channel DDR5

Rock-Solid Durability
14+1+1 Power Phase 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
Flexible Integrated I/O Shield

Ultrafast Connectivity
2.5G LAN 802.11ax Wi-Fi 6E Module

EZ Update
ASRock Auto Driver Installer

EZ Troubleshooter
ASRock Post Status Checker

CPU
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)

Chipset
Intel Z790

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 3.0

BIOS
128Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x eDP 1.4 supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game Browser and Streaming Modes
User Customized Priority Control

Wireless LAN
802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth + High speed class II
Supports MU-MIMO

Slots

CPU:
1 x PCIe 5.0 x16 Slot (PCIE2) supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode
2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire


Storage

CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:
1 x Hyper M.2 Socket (M2_2 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_4 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
8 x SATA3 6.0 Gb/s Connectors


RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 RAID 1 and RAID 5 for M.2 NVMe storage devices

USB
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
6 x USB 3.2 Gen1 (2 Rear 4 Front)
8 x USB 2.0 (4 Rear 4 Front)

Connector
1 x eDP Signal Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Rear Panel I/O
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC

UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer

Accessories
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Form Factor
ATX Form Factor: 12.0-in x 9.6-in 30.5 cm x 24.4 cm
2oz Copper PCB

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
