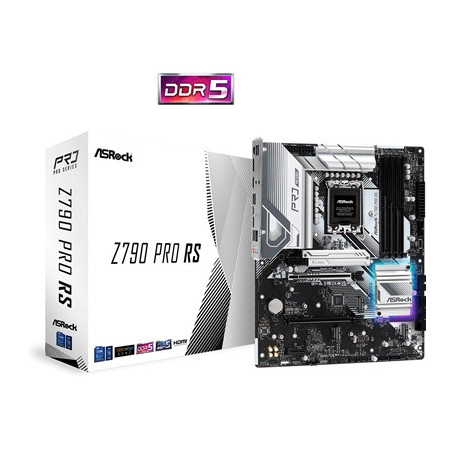

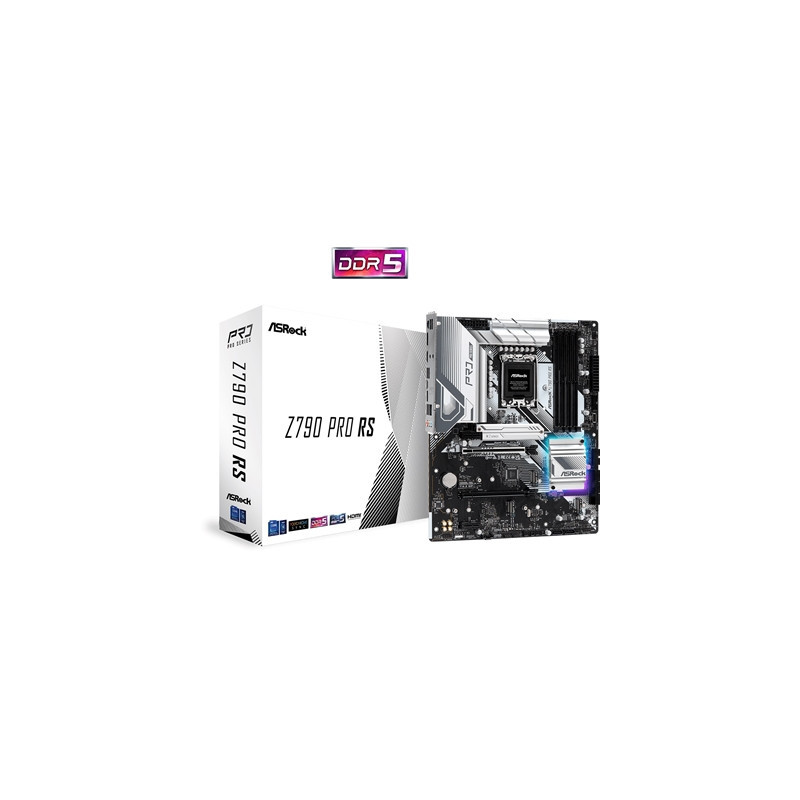

ASRock Z790 Pro RS Intel 1700 Socket Motherboard ATX 4x DDR5 Slots 5x M.2 Sockets 2x USB-C Port Fitted I/O Shield 2.5GbE L
£193.74
VAT included
ASRock Z790 Pro RS Intel 1700 Socket Motherboard ATX 4x DDR5 Slots 5x M.2 Sockets 2x USB-C Port Fitted I/O Shield 2.5GbE LAN 1x DisplayPort / 1x HDMI Port
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Overview
Modern and futuristic with the attractive specifications and perfect balance the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
Specifications
Unique Feature
Superb Productivity
PCIe Gen5 (Graphics)
Dual Channel DDR5
Rock-Solid Durability
14+1+1 Power Phase 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
Flexible Integrated I/O Shield
Ultrafast Connectivity
2.5G LAN
EZ Update
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker
CPU
Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel Z790
Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC un-buffered memory up to 6800+(OC)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x eDP 1.4 supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game Browser and Streaming Modes
User Customized Priority Control
Slots
CPU:
1 x PCIe 5.0 x16 Slot (PCIE2) supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode
2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x Hyper M.2 Socket (M2_2 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_4 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
8 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
6 x USB 3.2 Gen1 (2 Rear 4 Front)
8 x USB 2.0 (4 Rear 4 Front)
Connector
1 x eDP Signal Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Accessories
1 x User Manual
2 x SATA Data Cables
5 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Form Factor
ATX Form Factor: 12.0-in x 9.6-in 30.5 cm x 24.4 cm
2oz Copper PCB
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Modern and futuristic with the attractive specifications and perfect balance the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
Specifications
Unique Feature
Superb Productivity
PCIe Gen5 (Graphics)
Dual Channel DDR5
Rock-Solid Durability
14+1+1 Power Phase 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
Flexible Integrated I/O Shield
Ultrafast Connectivity
2.5G LAN
EZ Update
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker
CPU
Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel Z790
Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC un-buffered memory up to 6800+(OC)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x eDP 1.4 supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game Browser and Streaming Modes
User Customized Priority Control
Slots
CPU:
1 x PCIe 5.0 x16 Slot (PCIE2) supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode
2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x Hyper M.2 Socket (M2_2 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_4 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
8 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
6 x USB 3.2 Gen1 (2 Rear 4 Front)
8 x USB 2.0 (4 Rear 4 Front)
Connector
1 x eDP Signal Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Accessories
1 x User Manual
2 x SATA Data Cables
5 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Form Factor
ATX Form Factor: 12.0-in x 9.6-in 30.5 cm x 24.4 cm
2oz Copper PCB
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
MBASR-Z790PRORS-TL01
