Kingston ValueRAM KVR56S46BS6-8 8GB No Heatsink (1 x 8GB) DDR5 5600MHz SODIMM System Memory

KVR56S46BS6-8 8GB 1Rx16 1G x 64-Bit PC5-5600 CL46 262-Pin SODIMM

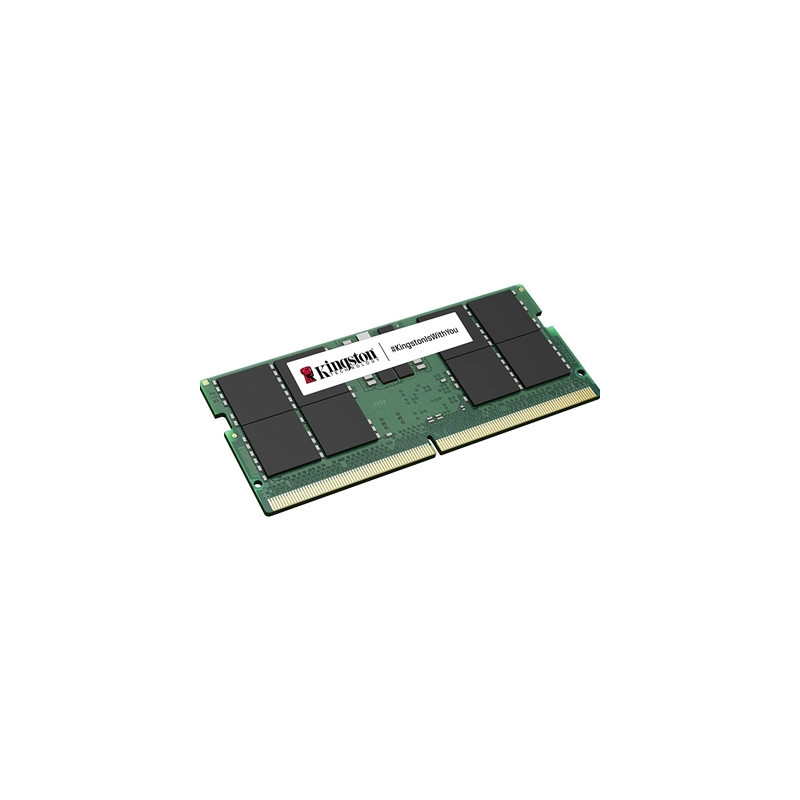

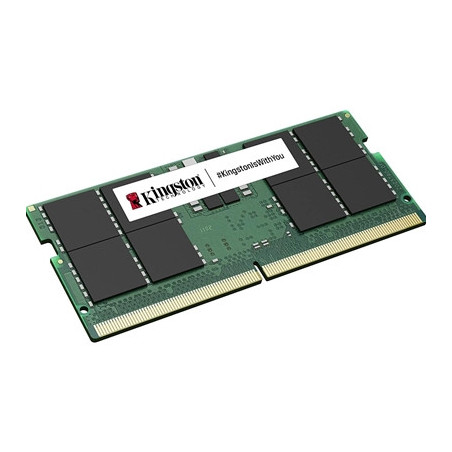

Kingston ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM) 1Rx16 memory module based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Features
Power Supply: VDD 1.1V Typical
VDDQ 1.1V Typical
VPP 1.8V Typical
VDDSPD 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free

Specification

Product Type
Memory Module

Capacity
8 GB

Memory Type
DDR5 SDRAM - SO-DIMM 262-pin

Upgrade Type
Generic

Data Integrity Check
On-die ECC

Speed
5600 MHz (PC5-44800)

Latency Timings
CL46 (46-45-45)

Features
Single rank unbuffered

Voltage
1.1 V

Lead Plating
Gold

Compliant Standards
RoHS UL 94 V-0 halogen-free JEDEC

Manufacturer Warranty
Limited Lifetime Warranty
