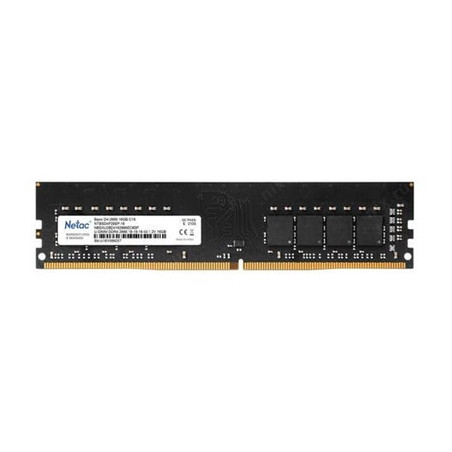

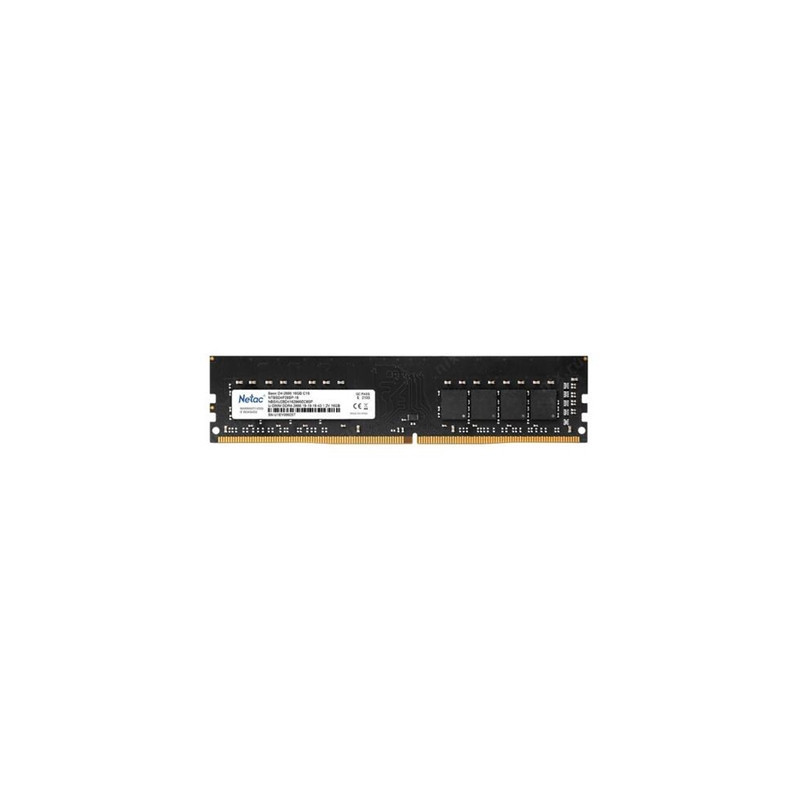

Netac NTBSD4P26SP-16 16GB DIMM System Memory DDR4 2666MHz 1 x 16GB 288 Pin 1.35v CL16-20-20-40

Netac Unbuffered DDR4 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power high-speed operation memory modules that use DDR4 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PC's

Features

Nominal and dynamic on-die termination (ODT) for data strobe and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- On-board I2C serial presence-detect (SPD) EEPROM
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Databus write cyclic redundancy check (CRC)
- Temperature controlled refresh (TCR)
- Command/Address (CA) parity
- Per DRAM Addressability is supported
- 8 bit pre-fetch
- Fly-by topology
- Command/Address latency (CAL)
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- Gold edge contacts
- RoHS Compliant and Halogen-Free

Specifications

Internal memory
16 GB

Internal memory type
DDR4

Memory clock speed
2666 MHz

Suitable For
Notebook

Memory voltage
1.2 V

Colour
Black

Backlight
No
