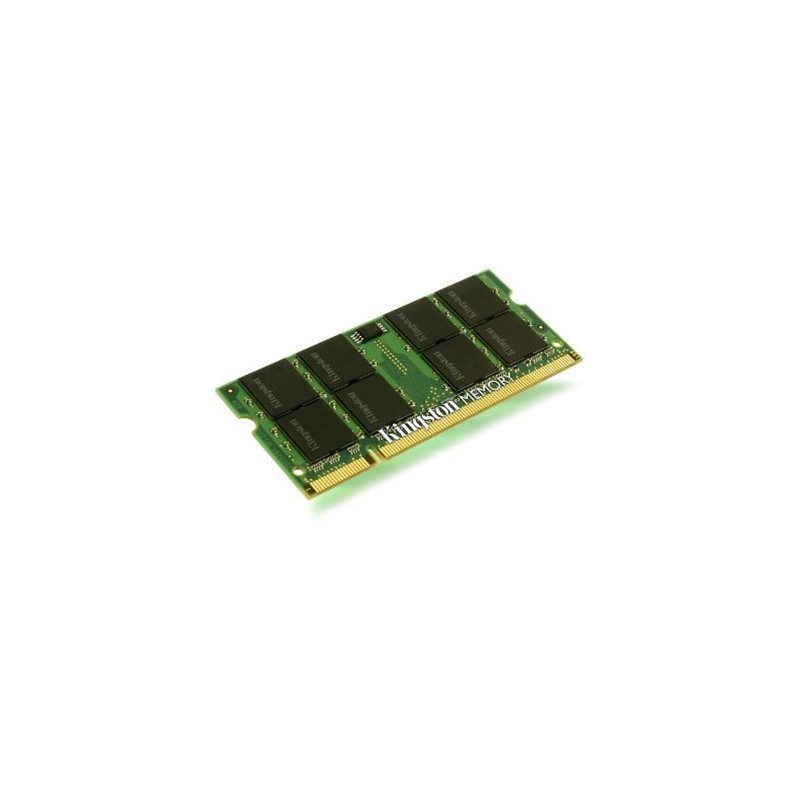

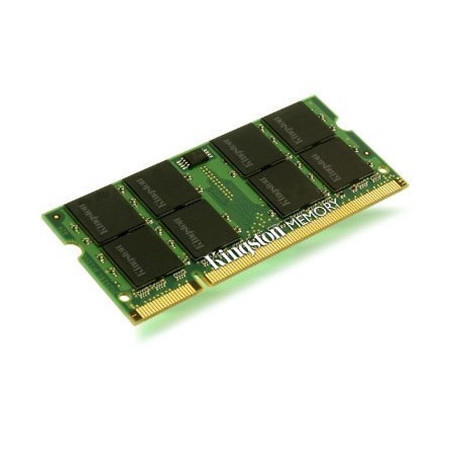

Kingston ValueRAM 8GB No Heatsink (1 x 8GB) DDR3L 1600MHz SODIMM System Memory

Kingston Technology is the world's independent memory leader and is well-known for providing high quality memory products at an attractive price. Kingston ValueRAM is your best source for industry-standard memory to maximise the performance and productivity of your system. Built with A-grade components only Kingston ValueRAM memory modules come with a lifetime warranty.

•


Key Features

JEDEC standard
1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply

VDDQ
= 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)

800MHz fCK for 1600Mb/sec/pin

8 independent internal bank

Programmable CAS Latency:
11 10 9 8 7 6

Programmable Additive Latency:
0 CL - 2 or CL - 1 clock

8-bit pre-fetch

Burst Length:
8 (Interleave without any limit sequential with
starting address 000 only) 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or MRS]

Bi-directional Differential Data Strobe

Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm 1%)

On Die Termination using ODT pin

Average Refresh Period
7.8us at lower than TCASE 85C
3.9us at 85C< TCASE
< 95C

Asynchronous Reset

PCB: Height 1.18 (30mm) double sided component

CL(IDD)
11 cycles

Row Cycle Time (tRCmin)
48.125ns (min.)

Refresh to Active/Refresh
260ns (min.)

Row Active Time (tRASmin)
35ns (min.)

Maximum Operating Power
(1.35V) = 2.376 W*

UL Rating
94 V - 0

Operating Temperature
0C to 85C

Storage Temperature
-55C to +100C
