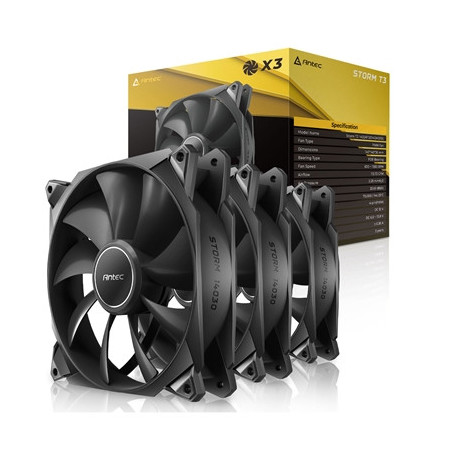

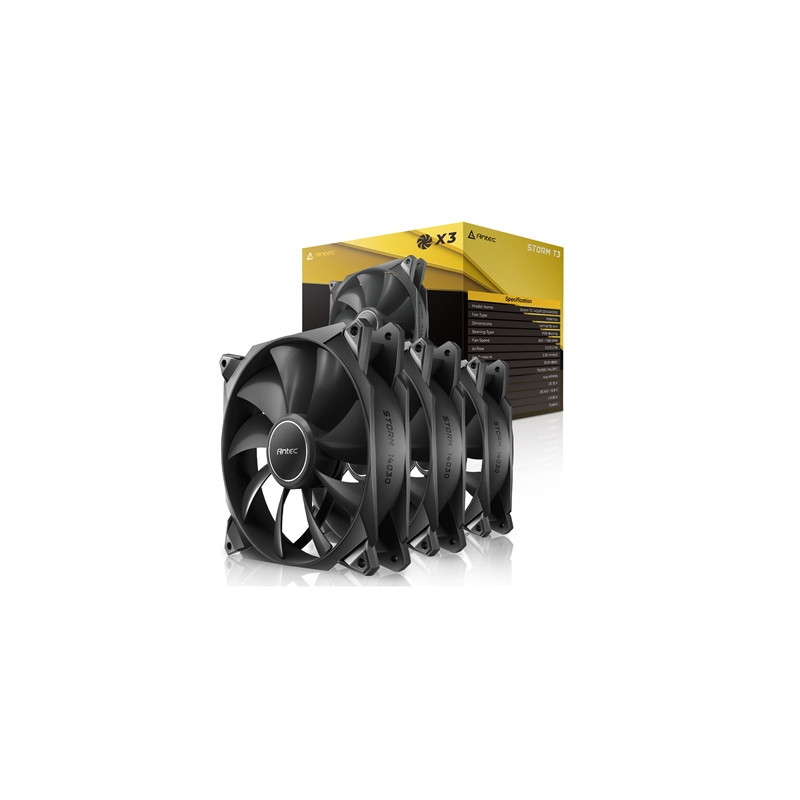

Antec Storm T3 140mm PWM Case Fan 3 Pack Fluid Dynamic Bearing 600-1500 RPM Black

STORM T3 140 PWM Case Fan 3PK

Storm T3 with a Thickness of 30 mm and Thickened Fan Blades
Increased 25% thicker fan blade width for high pressure and airflow performance so as to minimize the resonance.
Increase the thickness by 30 mm makes the contact surface wider and bigger air inlet area between the fan and the chassis max. 112.72 CFM.

Air-Concentrating Design
The well-designed case frame and curves make the airflow stronger reduce turbulent flow and fan noise and enhance the efficiency.

PWM Daisy-Chain Design
To avoid signal interference fans are daisy-chained with 3-pin connectors. But the fans fully support the PWM function.

Fluid Dynamic Bearing Fan
The FDB bearing fan can extend durability and lifespan.

Vibration-Absorbing & Anti-Noise Pads
The 8 x 6mm rubber pads can efficiently reduce vibration and noise.

Specifications

Model Name
Storm T3 140 (AF12014GM2PB)

Fan Type
PWM Fan

Dimensions
140 x 140 x 30 mm

Bearing Type
FDB Bearing

Fan Speed
600~1500RPM ± 10%

Airflow
min 44.82~max 112.72 CFM

Air Pressure
min 0.42~max 2.29 mmH2O

Fan Noise Level
33.69 dB(A)

Lifespan
70 000 hrs 25°C

Connector
4-pin PWM

Rated Voltage
DC 12 V

Operation Voltage
DC 6.0-13.8 V

Rated Current
= 0.36A

Warranty
3 Years
