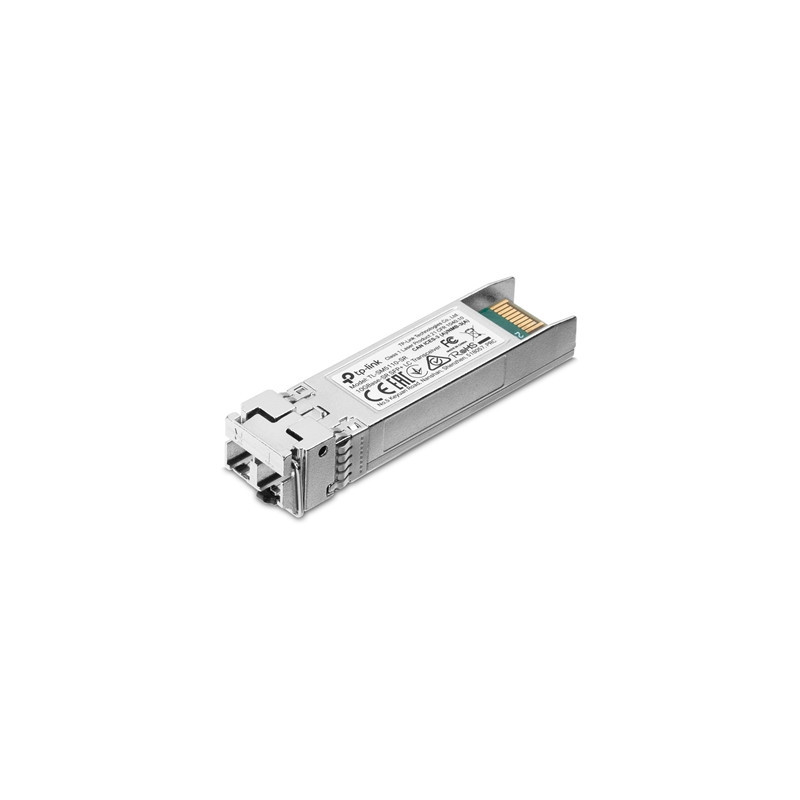

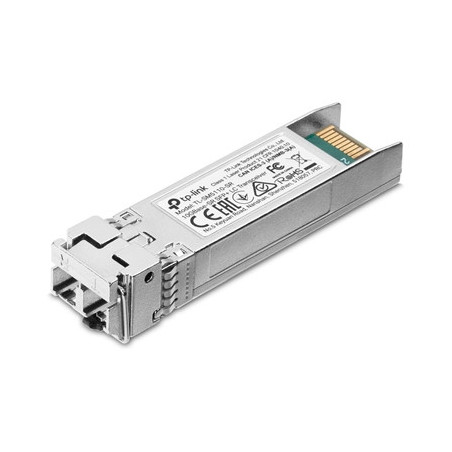

TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Multi-Mode SFP Module
£29.82
VAT included
TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Multi-Mode SFP Module
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
10GBase-SR SFP+ LC Transceiver
Key Features
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports like JetStream TL-SG3428X TL-SG3428XMP and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specifications
PACKAGE CONTENTS
10G SFP+ Module TL-SM5110-SR
Installation Guide
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
MEDIA CONVERTER & MODULE
Dimensions (W x D x H)
2.4 x 0.6 x 0.5 in (61.3 x 14.5 x 12.2 mm)
TRANSCEIVER
Standards and Protocols
IEEE 802.3ae TCP/IP SFF-8472
Wave Length
850nm
Power Supply
3.3V
Fiber Type
50/125um or 62.5/125um Multi-mode
Max. Cable Length
300m (OM3)
Data Rate
10Gbps
Port Type
LC/UPC
Safety & Emission
FCC CE
Environment
Operating Temperature: 0–70 ? (32–158 ?)
Storage Temperature: -40–80 ? (-40–176 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Key Features
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports like JetStream TL-SG3428X TL-SG3428XMP and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specifications
PACKAGE CONTENTS
10G SFP+ Module TL-SM5110-SR
Installation Guide
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
MEDIA CONVERTER & MODULE
Dimensions (W x D x H)
2.4 x 0.6 x 0.5 in (61.3 x 14.5 x 12.2 mm)
TRANSCEIVER
Standards and Protocols
IEEE 802.3ae TCP/IP SFF-8472
Wave Length
850nm
Power Supply
3.3V
Fiber Type
50/125um or 62.5/125um Multi-mode
Max. Cable Length
300m (OM3)
Data Rate
10Gbps
Port Type
LC/UPC
Safety & Emission
FCC CE
Environment
Operating Temperature: 0–70 ? (32–158 ?)
Storage Temperature: -40–80 ? (-40–176 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
