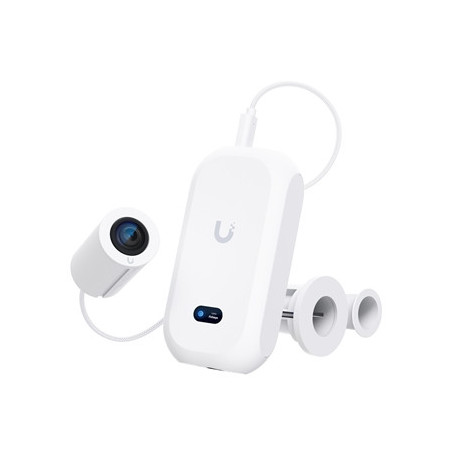

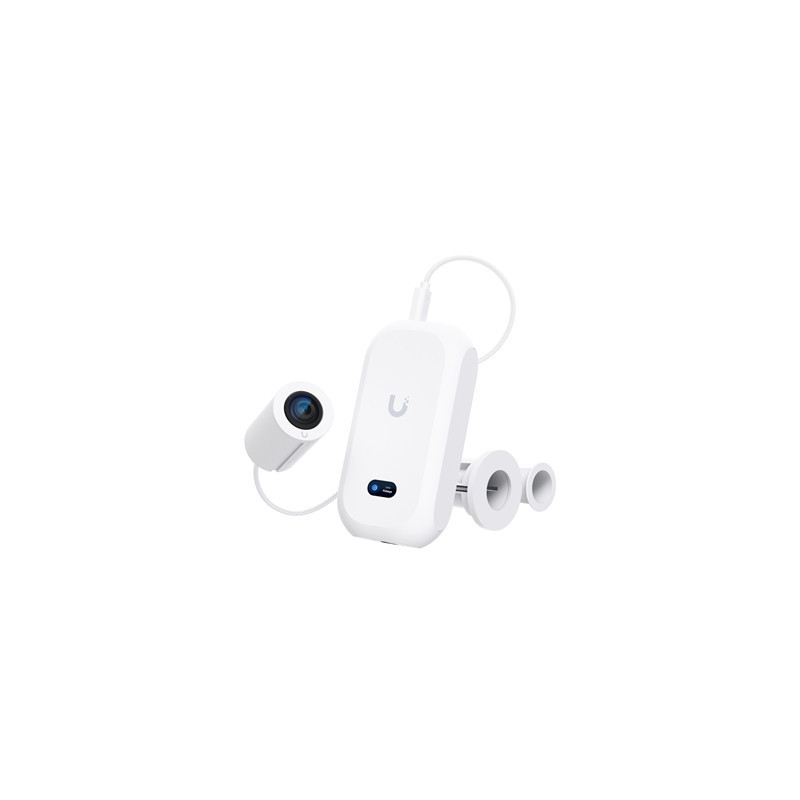

Ubiquiti UVC-AI-Theta-Pro Camera AI Theta Pro Ceiling Mount 360 Degree Camera

A complete ceiling 360 degree AI Theta system designed to discreetly provide a panoramic view of large busy spaces.

Dimensions
UVC-AI-Theta-Hub: 170 x 70 x 38mm
UVC-AI-Theta-ProLens360: 36.6mm diameter 58.9mm long

Weight
UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-ProLens360: 58 g (2 oz)
UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz)

Enclosure Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360: aluminum alloy polycarbonate

Mount Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate

Cable Jacket Enclosure Dimensions
28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3)

Cable Jacket Enclosure Material
PVC

Cable Length
1m

Cable Diameter
3.7mm

Cable Jacket Material
Woven Fabric

Cable Weight
18g

Cable Connector Type
Theta Proprietary

Sensor
8MP 1/1.8 CMOS

Lens
Fixed Focal Length

Viewing Angle
H: 180° V: 180° D: 180°

Resolution
4MP 2160 x 2160 (1:1)

Max. Frame Rate
24 FPS

Image Settings
Color brightness sharpness contrast white balance exposure control 2DNR 3DNR NR by motion masking text overlay

Power Supply
5V DC 0.5A

Processor
Quad-core Arm Cortex-A53 based chip

Networking Interface
GbE RJ45 port

Max. Power Consumption
12.5W

Power Method
PoE

Supported Voltage Range
37—57V DC

Output Power
5V DC 1A per port

Display
0.96 color display

Button
Factory Reset

Mounting
Wall/Ceiling Mount

Certifications
FCC IC CE
