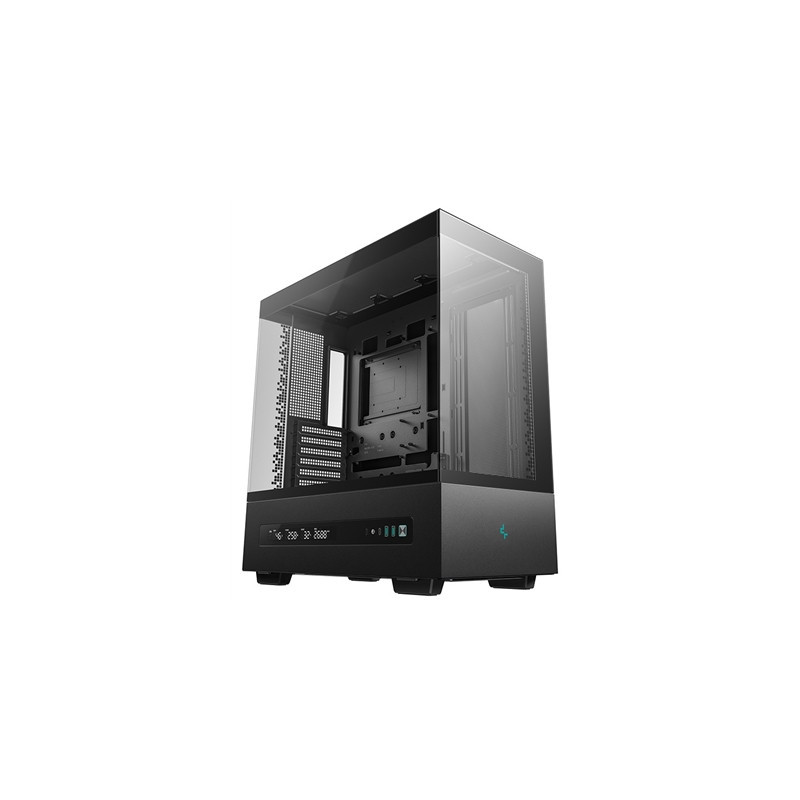

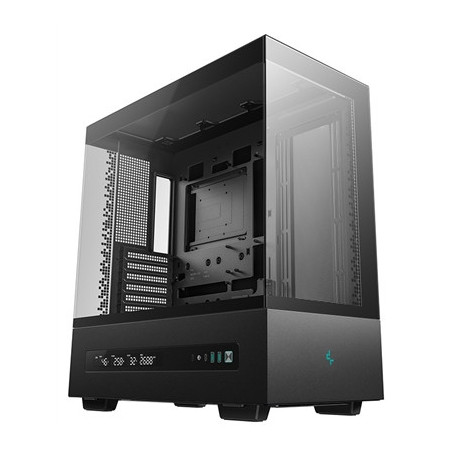

DeepCool CH690 Digital ATX Mid-Tower Case High-Airflow PC Case with Semi-Glass Panel USB-C Port Support for 420mm Radiator 4

The DeepCool CH690 Digital Black ATX Caseis designed with beauty and adaptability in mind. It features a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance the rear of the case supports DIY modifications allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere blending aesthetics with functionality for a truly personalized setup.

Specifications
Model Number:
R-CH690-BKNNA0D-G-1

Case Type:
Mid-Tower

Motherboard Support:
Mini-ITX Micro-ATX ATX

Dimensions:
552mm (L) x 332mm (W) x 589mm (H)

Net Weight:
9.8 kg

Materials:
ABS SPCC Tempered Glass

Front I/O Ports:
2 x USB 3.0
1 x USB Type-C (Gen 2)
1 x HD Audio/Mic

Drive Bays:
1 x 3.5 Drive Bay
2 x 2.5 Drive Bays

Expansion Slots:
8

Pre-Installed Fans:
None

Fan Support:
Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
PSU Shroud: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm

Radiator Support:
Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Side: 120mm / 140mm / 240mm / 280mm
PSU Shroud: 120mm / 240mm / 360mm

CPU Cooler Height Limit:
182mm

GPU Length Limit:
450mm

Power Supply Type:
ATX PS2 (maximum length: 180mm)

Warranty:
1 Year
