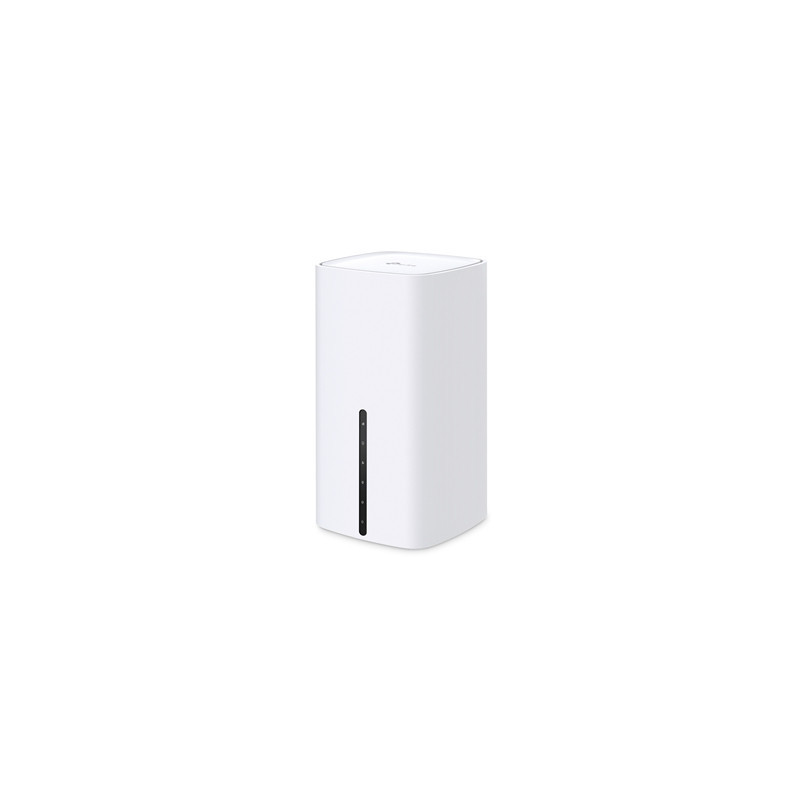

TP-Link Archer NX200 5G AX1800 Wireless Dual Band Gigabit Router

TP-Link 5G AX1800 Wireless Dual-Band Gigabit Router

Features
Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies blazingly fast file downloads and smooth video chats and video conferences.
AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
Plug & Play - Enjoy 5G network right after inserting a SIM card.
EasyMesh-Compatible - Co-work with EasyMesh products to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX210 to work as a traditional wireless router which is compatible with cable fiber and DSL modems.

Superior 5G –A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies blazingly fast file downloads and smooth video chats and video conferences. At the same time NX210 is backward compatible with 4G mode.

Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech NX210 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology NX210 is designed to deliver a huge boost in coverage speed and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Plug and Play Enjoy 5G Network Everywhere
Simple just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home farm or suburban warehouse. Long contract periods also create headaches for short-rentals pop-up venues and temporary shops to access the internet. Archer NX210 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Available WAN Connection Backup
The gigabit WAN/LAN port enables NX210 to work as a traditional wireless router which is compatible with cable fiber and DSL modems. And when it's set as a wireless router its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Use
Set up the Archer NX210 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings including Parental Controls and Access Control from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Specifications

Interface
1 x 10/100/1000 Mbps LAN/WAN Port
2 x 10/100/1000 Mbps LAN Ports
1 x Nano SIM Card Slot
2 x External SMA-F Antenna Interface

Button
WPS Button Reset Button Power On/Off Button Wi-Fi On/Off Button

External Power Supply
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A

Dimensions (W x D x H)
3.9 x 3.9 x 7.5 in ( 99 x 99 x 190 mm)

Antenna
8 x 5G/LTE Internal Antennas
2 x Wi-Fi Internal Antennas

Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

Frequency
2.4 GHz and 5 GHz

Signal Rate
574 Mbps at 2.4 GHz 1201 Mbps at 5 GHz

Reception Sensitivity
5GHz:
11a 54M:-80 dBm
11ax HE20:-68 dBm
11ax HE40:-65 dBm
11ax HE80:-62 dBm
11ac VHT20:-76 dBm
11ac VHT40:-72 dBm
11ac VHT80:-68 dBm
11n HT20:-79 dBm
11n HT40:-75 dBm
2.4GHz
11g 54M:-78 dBm
11ax HE20:-65 dBm
11ax HE40:-62 dBm
11ac VHT20:-73 dBm
11ac VHT40:-68 dBm
11n HT20:-75 dBm
11n HT40:-72 dBm

Wireless Functions
Enable/Disable Wireless Radio Wireless Schedule WMM Wireless Statistics

WAN Failover
Yes

Wireless Security
64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK encryptions

Transmission Power
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)

Network Type
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Quality of Service
Prioritizes network traffic by device or application

Security
DoS IPv4 SPI Firewall IPv6 Firewal IP and MAC Address Binding Access Control

WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features
TP-Link Cloud Local Management Remote Management

DHCP
Server DHCP Client List Address Reservation

Port Forwarding
ALG Virtual Server Port Triggering UPnP DMZ

Dynamic DNS
TP-Link DynDns NO-IP

VPN
PPTP VPN IPSec VPN OpenVPN

Access Control
Parental Control Local Management Control

Firewall Security
DoS SPI Firewall IP Address Filter/Domain Filter
IP and MAC Address Binding

Protocols
IPv4 IPv6

Guest Network
2.4 GHz Guest Network x 1
5 GHz Guest Network x 1

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

IPv6 DHCP Server
IP address assignment (DHCPv6)
Port: 547 Protocol: UDP

DNS
Port: 53 Protocol: TCP

App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20002 Protocol: TCP

Certification
CE RoHS

System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10 MAC OS
NetWare UNIX or Linux
Internet Explorer 11 Firefox 12.0 Chrome 20.0 Safari 4.0 or other
Java-enabled browser
Nano SIM Card

Package Content
5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
