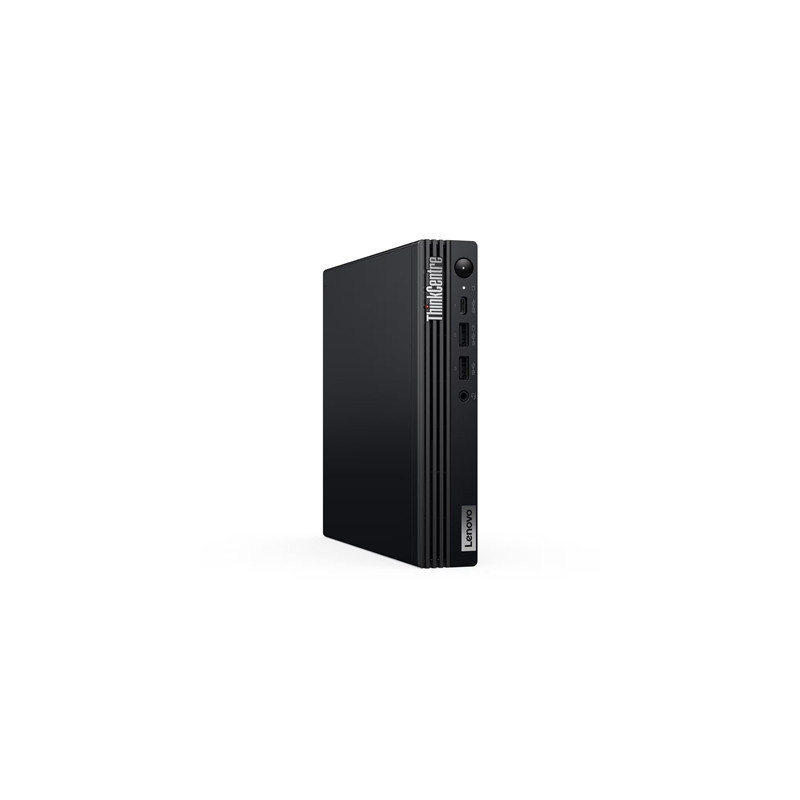

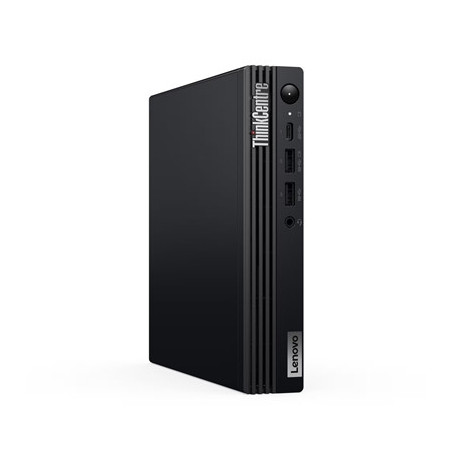

Lenovo ThinkCentre M70q G5 12TD003QUK Tiny PC Intel Core i5-14400T 14th Gen 8GB DDR5 RAM 256GB SSD Intel UHD Graphics 730 Windows 11 Pro with Keyboard and Mouse

GENERAL

Product Type
Desktop PC

Form Factor
Tiny (1L)

Case Colour
Black

Mounting
VESA Mount

OPERATING SYSTEM

Operating System
Windows® 11 Pro English

PROCESSOR

Processor
Intel® Core™ i5-14400T (10 cores: 6 Performance + 4 Efficient 16 threads)
P-core: 1.5 / 4.5 GHz
E-core: 1.1 / 3.2 GHz
20 MB Intel® Smart Cache

Chipset
Intel® Q670

GRAPHICS

Graphics
Integrated Intel® UHD Graphics 730

MEMORY

Memory
8 GB DDR5-4800 (1 x 8 GB SODIMM)

Memory Slots
2 x DDR5 SODIMM slots (dual-channel supported)

Maximum Memory
Up to 64 GB (2 x 32 GB DDR5)

STORAGE

Storage
256 GB M.2 2280 PCIe® 4.0 x4 NVMe® SSD (Opal)

Maximum Storage Support
Dual SSD mode:
Up to 2 x M.2 SSD
M.2 2280 SSD up to 2 TB each

RAID Preset
None

Card Reader
None

Optical Drive
None

AUDIO

Audio Chip
High Definition (HD) Audio
Realtek® ALC233VB or Conexant CX11771 codec

Speakers
2 W x 1

INPUT DEVICES

Keyboard
USB Traditional Keyboard Black UK English

Mouse
USB Calliope Mouse Black

EXPANSION

Expansion Slots
3 x M.2 slots (1 for WLAN 2 for SSD)

PORTS

Front Ports
1 x USB-C® (USB 5 Gbps / USB 3.2 Gen 1) with 5V / 0.9A charging
1 x USB-A (USB 10 Gbps / USB 3.2 Gen 2) with Always On and 5V / 2.1A charging
1 x USB-A (USB 10 Gbps / USB 3.2 Gen 2)
1 x Headphone / microphone combo jack (3.5 mm)

Rear Ports
1 x USB-A (USB 2.0) with smart power-on
1 x USB-A (USB 5 Gbps / USB 3.2 Gen 1)
2 x USB-A (USB 10 Gbps / USB 3.2 Gen 2)
1 x HDMI® 2.1 TMDS
1 x DisplayPort™ 1.4a (HBR2 DSC)
1 x Ethernet (RJ-45)

CONNECTIVITY

Wireless
Intel® Wi-Fi® 6E AX211 (802.11ax 2x2)

Bluetooth
Bluetooth® 5.3

WWAN
Not supported

Ethernet
Integrated 10/100/1000M

SECURITY

Security Chip
Discrete TPM 2.0 (TCG certified FIPS 140-2 certified)

Fingerprint Reader
None

Physical Security
Kensington Security Slot™ (3 x 7 mm)
Chassis Intrusion Switch

POWER

Power Supply
90 W external adapter (89% efficiency)

DIMENSIONS & WEIGHT

Dimensions (W x D x H)
179 x 182.9 x 36.5 mm (with rubber feet)

Weight
Approximately 1.25 kg

MANAGEABILITY

System Management
Non-vPro®

WARRANTY & SERVICE

Base Warranty
1 Year Onsite

Included Upgrade
3 Year Onsite upgrade from 1 Year Onsite
1 Year Premier Support
CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)

CERTIFICATIONS

Environmental Certifications
ENERGY STAR® 8.0
EPEAT™ Silver Registered
ErP Lot 3/7
RoHS compliant
TCO Certified

Military Standard
MIL-STD-810H military-grade testing passed

SOFTWARE

Bundled Software
None

ACCESSORIES

Bundled Accessories
None
