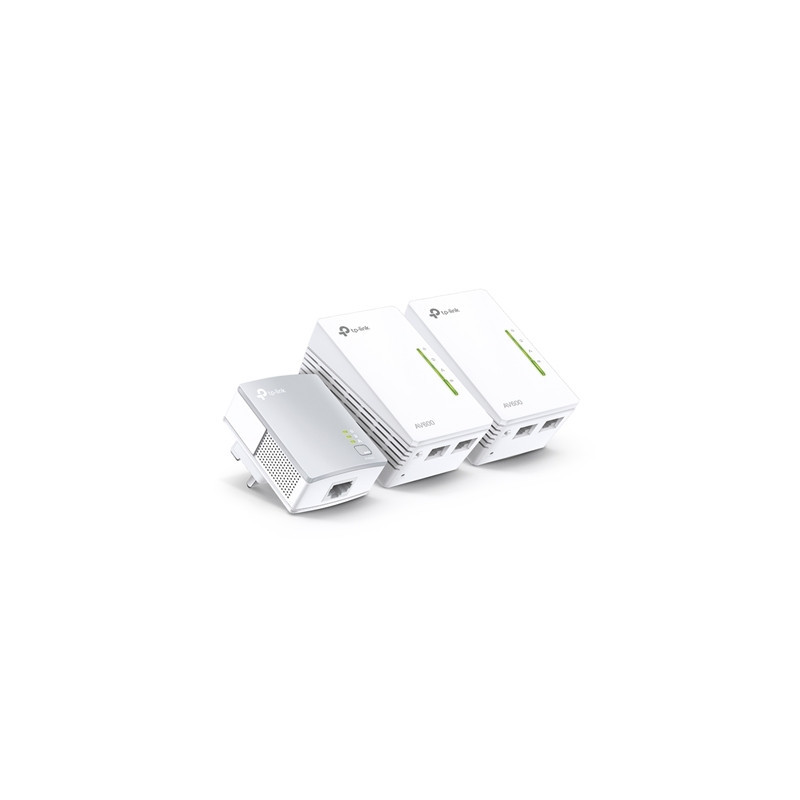

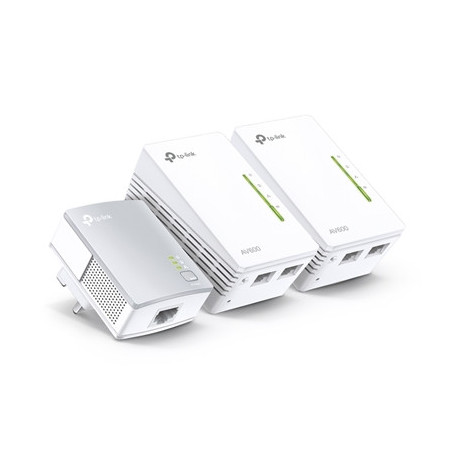

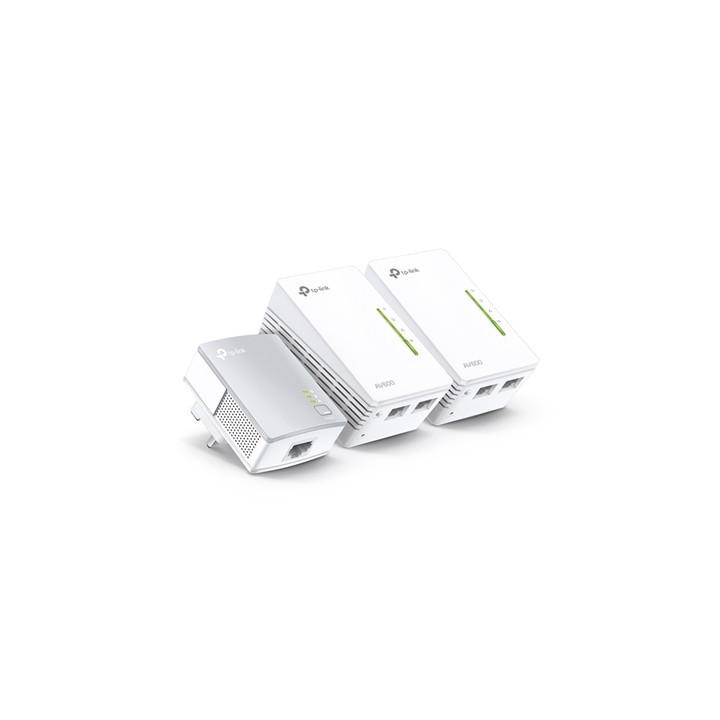

TP-Link TL-WPA4220 TKIT AV600 Powerline Wi-Fi Booster 2 LAN 3 units

Extend wired and wireless network to any room using existing electrical system
One-Touch Wi-Fi Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
HomePlug AV2 standard providing up to 600 Mbps1 high speed data transmission over a home’s existing electrical wiring ideal for lag-free HD or 3D video streaming and online gaming
Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office
Two fast Ethernet ports of every extender enable TL-WPA4220 to run multiple high-speed and reliable wired connections for devices
*TL-WPA4220T KIT contains TL-WPA4220 x 2 and TL-PA4010 x 1

Extend Wi-Fi to Every Room Using Existing Electrical Wiring
AV600 Powerline Universal Wi-Fi Range Extender

Extend Wired and Wireless Network to Any Room Using Existing Electrical System
The powerline products TL-WPA4220 TKIT transforms your home’s existing electrical circuit into a high-speed network and brings wired and wireless networks to anywhere there is a power outlet.

No need for new wires or drilling
Network passes through walls and floors
Compatible with any Wi-Fi routers or other powerline products
Expand coverage by adding more extenders

AV600 Speeds and 300 Meters Range
Using advanced HomePlug AV technology TL-WPA4220 TKIT provides stable and high-speed data transmissions of up to 600 Mbps for ranges up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD game online and download large files without interruption thanks to reliable powerline links.

One-Touch Wi-Fi Configuration
Instantly copy the wireless network name (SSID) and password from your router by pressing the Wi-Fi Clone button.

Besides any changes made to the Wi-Fi settings of any unit will be automatically applied across the entire Powerline network.

Two Fast Ethernet Ports for Reliable Wired Connections
With two Ethernet ports every TL-WPA4220 runs multiple high-speed and reliable wired connections at the same time for devices like smart TVs PCs and game consoles. Three Ethernet cables are included in the box.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android iOS) or download new tpPLC Utility on PCs to manage the powerline network.

View real-time powerline speed
LED control
Guest network

Specifications

Standards and Protocols
HomePlug AV2 IEEE802.3 IEEE802.3u IEEE802.11b/g/n

Interface
TL-WPA4220: 2x 10/100 Mbps Ethernet Port
TL-PA4010: 1x 10/100 Mbps Ethernet Port

Button
Pair Reset Wi-Fi/Wi-Fi Clone

Max. Power Consumption
Maximum: 12.916W (220V/50Hz)
Typical: 12.302W (220V/50Hz)
Standby: 8.780W (220V/50Hz)

LED
PWR PLC ETH Wi-Fi/Wi-Fi Clone

Dimensions (W x D x H)
TL-WPA4220: 2.1 x 1.6 x 3.7 in (54 x 40 x 94 mm)
TL-PA4010: 2.0 x 1.1 x 2.6 in (52 x 28.5 x 65 mm)

Range
300 Meters over electrical circuit

Frequency
2.4-2.4835GHz

Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Wireless Security
64/128-bit WEP / WPA / WPA2 WPA-PSK / WPA2-PSK

Advanced Features
Enable/Disable Wireless Radio WMM Wireless Statistics

Transmission Power
CE:<20dBm(2.4GHz)
FCC:<30dBm

Modulation Technology
OFDM (PLC)

Encryption
Powerline Security:
128-bit AES
Wireless Security:
WEP WPA/WPA2 WPA-PSK/WPA2-PSK Encryption

Certification
CE RoHS

System Requirements
Windows 2000/XP/2003/Vista Windows 7/8 Mac Linux

Package Content
Powerline Ethernet Adapter 2x TL-WPA4220 & 1x TL-PA4010
3x 6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide
