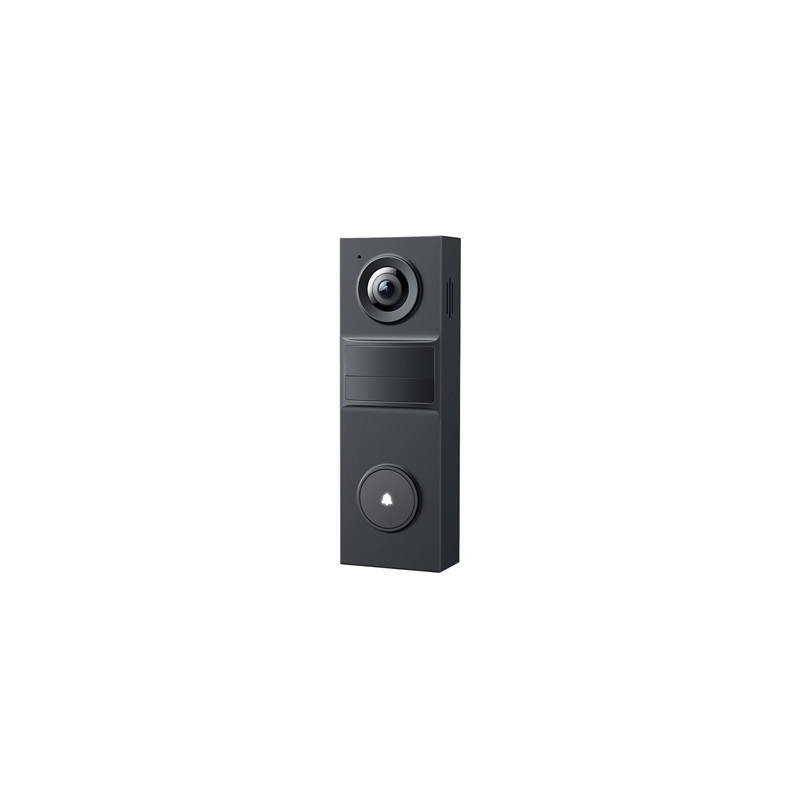

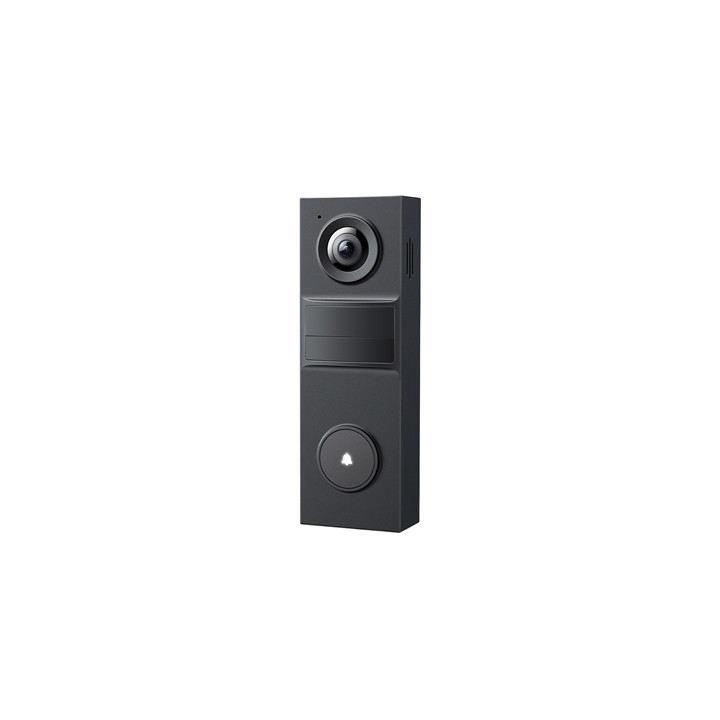

TP-Link TD20 Smart Video Doorbell Mini

Sharp 2K Live View
When it comes to protecting your home every detail matters. With a clear 2K video nothing will go unnoticed.

Ultra-Wide 160° FOV
Offers exceptional coverage ensuring you see everything from head to toe in a single uninterrupted frame.

Accurate Alerts: AI Detection with No Fees
Receive smart real-time notifications when people are at your doorstep – no subscription required.

Doorbell Calls
Get a call when a visitor presses your doorbell and talk to them instantly.

Quick Response
When you're busy send a preset Quick Response to reply to your visitor.

Two-Way Audio
Have a real-time conversation with visitors at your door with clear video.

Custom Activity Zones
Only get alerts when people enter your specified zones.

Battery Powered
Built-in 5 200mAh battery provides up to 180 days of battery life per charge.

Tapo Solar Panel Supported
Enjoy maintenance-free security.

IP54 Weatherproof
Built to handle rain dust and changing seasons.

Seamless Integration
Get instant chime alerts with your existing Tapo Hub or smart assistant.

Local and Cloud Storage
Supports microSD card (up to 512GB) and Tapo Care cloud services.

See Everything in 2K Day or Night
When it comes to protecting your home every detail matters. With clear 2K video nothing will go unnoticed.

Accurate Alerts: AI Detection with No Fees
Gain peace of mind and receive smart real-time notifications with AI detection that alerts you when people are at your doorstep – no subscription required.

Doorbell Calls: Never Miss a Visitor
Get a doorbell call when some presses your doorbell and talk to them instantly - just like a regular phone call. No need to unlock the screen or open the Tapo App manually.

Specifications

Image Sensor
1/2.8 Progressive Scan CMOS Sensor

Lens
Focal Length: 2.4 mm
Aperture: F2.2
Field of View: 160 (Diagonal) 145°(Horizontal) 83°(Vertical)

Night Vision
2x 850 nm IR LEDs (25 ft 7.6 m)
Black and White Image

Interface and Button
1x RESET Button
1x Doorbell Button
1x microSD Card Slot
1x USB Type-C Port

Maximum Resolution
2K 3MP (2304 x 1296px)

Frame Rate
15 fps

Digital Zoom
10x

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input and Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

Sensor
Single PIR Motion Sensor
Motion Detection Range: 25 ft

AI Detection
Person and Motion Detection

Activity Zones
Yes

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
IEEE 802.11b/g/n 2.4 GHz Wi-Fi

Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

Power Source
5200mAh Built-in Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200 A201 A202 (Sold separately)

Input Voltage
Doorbell Battery Pack Adapter Input: 100-240 V 50/60 Hz

Output Voltage
Doorbell Battery Pack Adapter Output: 5.0 V 1.0 A

Smart Integration
Google Assistant Amazon Alexa

Weather Resistance
IP54

System Requirements
Tapo App: iOS 9.0 or higher Android 4.4 or higher

Mounting Options
Stick to a Wall
Mount to a Wall

Dimensions ( W x D x H )
Doorbell Dimensions: 5.51 x 1.81 x 1.19 in (140 x 46 x 30.2mm)

Package Content
Tapo Video Doorbell x 1
Mounting Brackets x 1
Horizontal Mounting Wedge x 1
3M Adhesive x 1
Foam Pad x 1
Screws and Anchors
USB Cable x 1
Mounting Template Sticker x 1
Quick Start Guide
