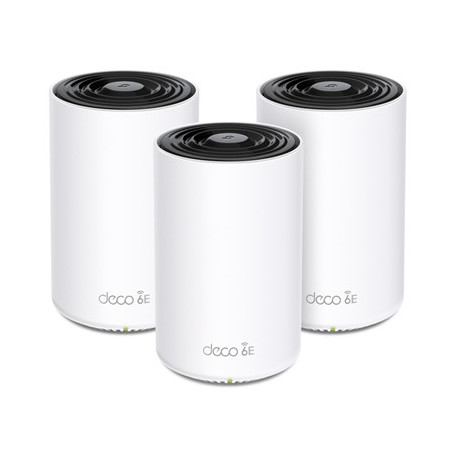

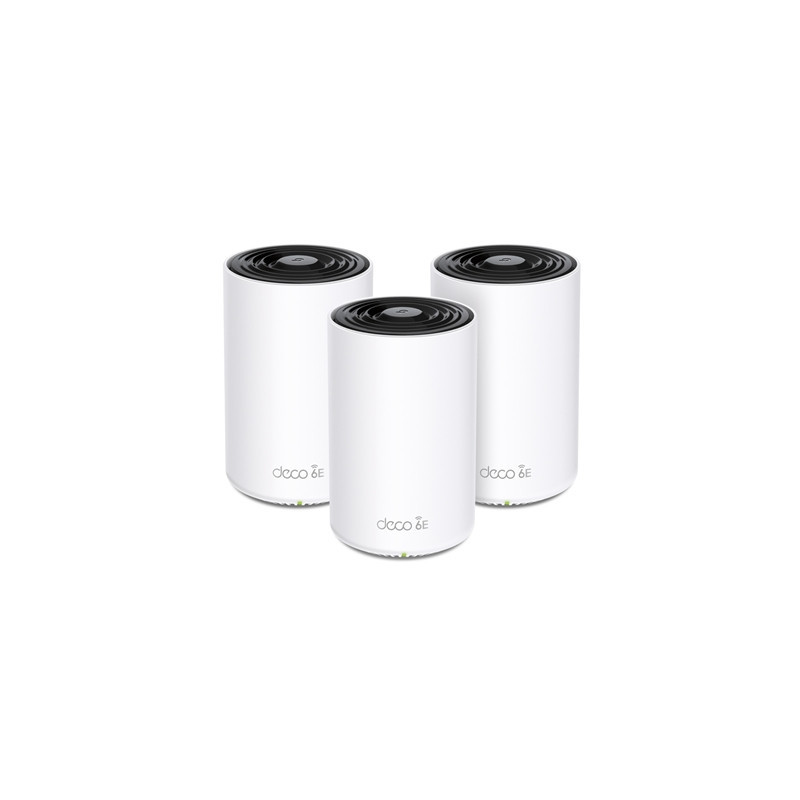

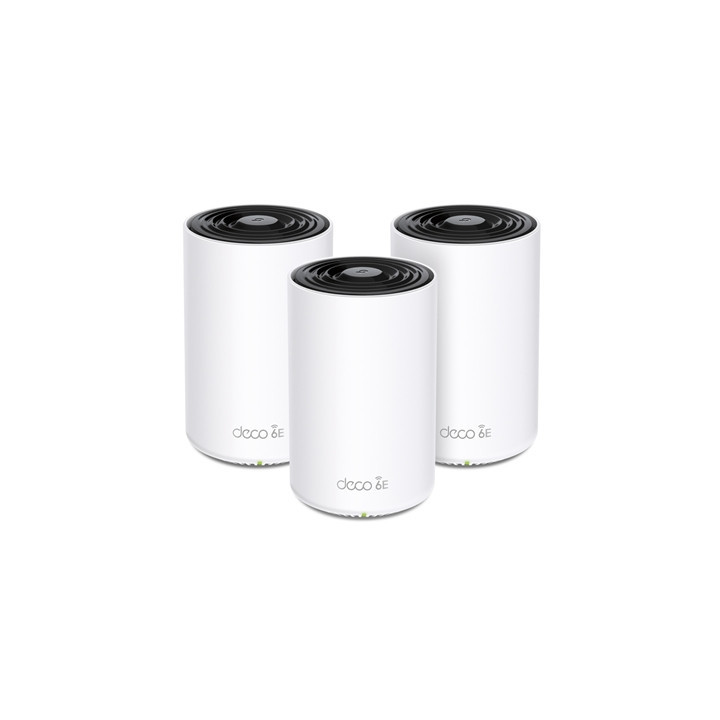

TP-Link Deco XE75(3-pack) AXE5400 Whole Home Mesh Wi-Fi 6E System(Tri-Band) 3 pack

Whole Home WiFi 6E
Cover up to 7 200 ft with next-gen seamless WiFi and make dead zones and buffering a thing of the past

True Tri-Band Speed
All three WiFi bands work together to unleash your network’s total speeds up to 5 400 Mbps for 200 devices

AI-Driven Mesh
Unites your home under one name and password while delivering the best connections as you move room to room

TP-Link HomeShield
Keeps your home network safe with cutting-edge features for network and IoT protection

Setup Made Easier Than Ever
The Deco app walks you through setup step-by-step

Universal Compatibility
Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem

New Band. New Possibilities.
The brand new 6 GHz band opens up the fastest possible speeds lowest ever latency and unprecedented capacity.

The Power of 6E
WiFi 6E more than doubles the available spectrum meaning no more competition over the airwaves. Experience blazing-fast speed WiFi thanks to the clean 6 GHz band and the added 160 MHz channels eliminating interference from legacy devices.

WiFi that Reaches Every Corner
Experience smooth streams and solid connections from anywhere in your home.

The Best Performance & Coverage
The 6G band is used together with other bands to serve as the wireless backhaul connection between the Deco units bringing the most stable and strongest network covering every corner of your home. Thus it also improves the overall WiFi performance of all non-6E devices.

Out of This World Speeds
Reach gigabit speeds so fast you can stream flawless video even as you explore AR/VR worlds.

Engineered for More Devices
No matter how many screens or devices are on at once the newest generation of WiFi enables congestion-free signals.

Intelligent Networking for a Smarter Home
Deco uses its custom algorithms to automate the connections on your network ensuring the strongest possible signals at all times.

Protect Your Network and Everything on It
TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.

Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device prioritize your own and set up a guest network.

Voice Control
Pair with Alexa to control Deco XE75 with simple voice commands. Enjoy the convenient life.

All Decos Work Together
Deco XE75 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.

Specifications

Standards and Protocols
Wi-Fi 6E
IEEE 802.11ax 6 GHz
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds
AXE5400
6 GHz: 2402 Mbps (802.11ax HE160)
5 GHz: 2402 Mbps (802.11ax HE160)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range
4-7+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4x High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
Very High
Tri-Band
Distribute devices to different bands for optimal performance

2x2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

6 Streams
More than enough bandwidth for connected devices

Working Modes
Router Mode
Access Point Mode

Network Security
SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
1x 6 GHz Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
Effective Time
Bandwidth Control

VPN Server
Open VPN Server
PPTP VPN Server
L2TP/IPSec VPN Server

VPN Client
Open VPN Client
PPTP VPN Client
L2TP/IPSec VPN Client

WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

Ethernet Ports
3x Gigabit Ports Per Deco Unit
Supports WAN/LAN auto-sensing

Buttons
Reset Button

Advanced Features
Reboot Schedule
Tapo/Kasa onboarding
IoT network & Device Isolation
Static Routing Function
Node/Band Connection Preference

Protocols
IPv4
IPv6

Service Kits
HomeShield

Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
HomeShield QoS
QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link

Management Features
Deco App

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DNS
Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20001 Protocol: TCP
Port: 30001 Protocol: TCP
Port: 20002 Protocol: UDP

WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
<23 dBm (6 GHz)

FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)
<30 dBm(6 GHz)

Dimensions (W x D x H)
4.1 x 4.1 x 6.7 in
(105 x 105 x 169 mm)

Certifications
CE FCC RoHS

Package Content
3 Deco XE75 units
1 RJ45 Ethernet cable
3 Power adapters
1 Quick Installation Guide
