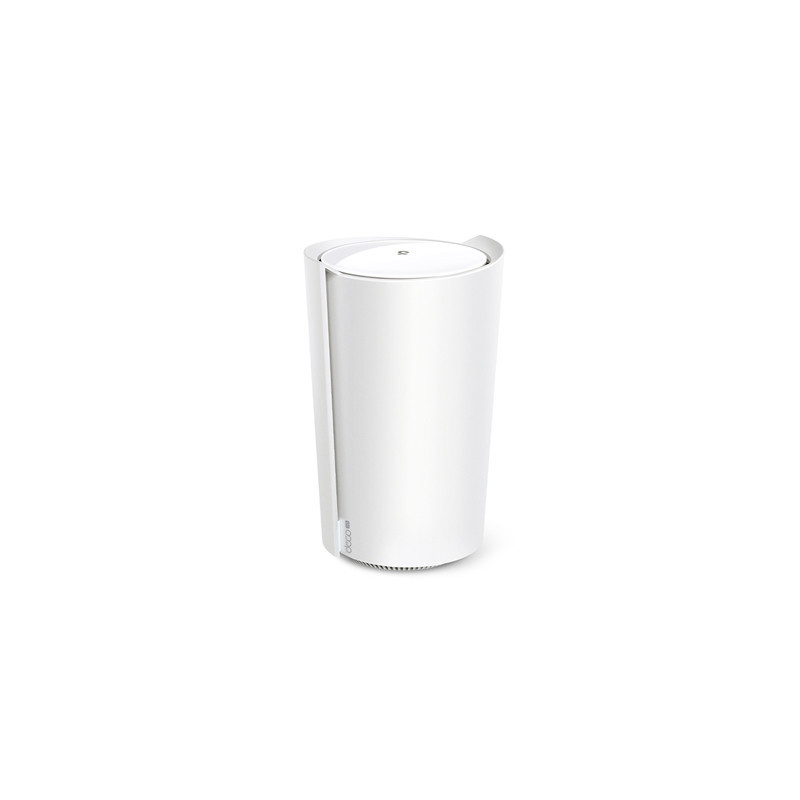

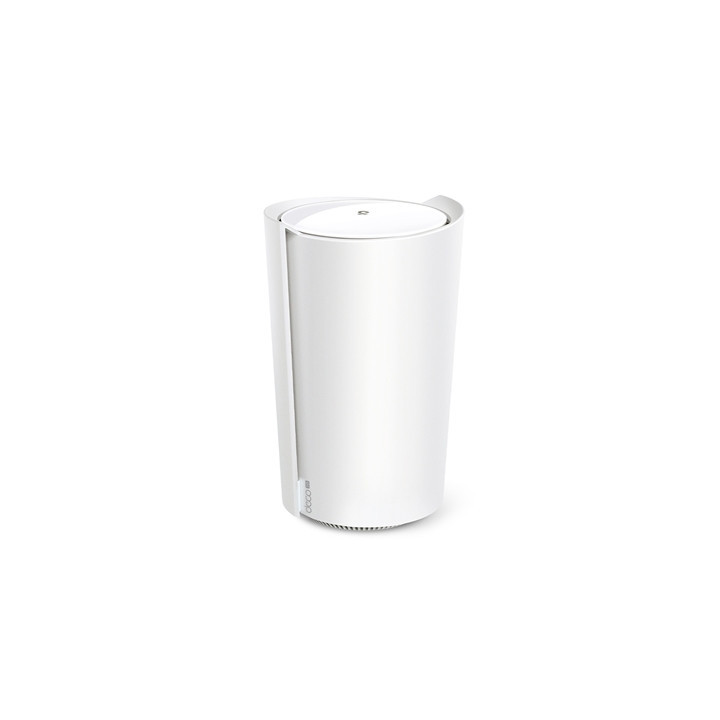

TP-Link Deco X50-5G(1-pack) 5G AX3000 Whole Home Mesh Wi-Fi 6 Router with Built-In 5G Modem

Ultra-Fast Broadband Connection
Supports Sub-6 GHz 5G technology boosts download speeds up to 3.4 Gbps

Ultra-Low Latency
5G brings responsive network connections with only 1 ms latency

AX3000 Dual-Band Wi-Fi 6 Speed
2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

2.5 Gigabit Wired Connections
1x 2.5 Gbps port + 2x Gigabit port

Mesh Network
Deco mesh technology ensures strong Wi-Fi signals everywhere

Flexible Network Access
4G 5G Fixed-Line Internet Access

Simplified Setup
Easily set up and manage your network with the TP-Link Deco app

TP-Link HomeShield
Provides comprehensive network protection robust parental controls and real-time loT security

Lower Latency Enhanced Capacity
With massive MIMO optimized OFDM and more 5G technologies brings fast responsive network connections to tomorrow’s mobile devices with only 1 ms latency. Enjoy your online streaming gaming and AR / VR without congestion.

Plug and Play Enjoy 5G Network Everywhere
Traditional broadband or cable installation is expensive and time-consuming for your vacation home farm or suburban warehouse. Long contract periods also create headaches for short-rentals pop-up venues and temporary shops to access the internet. Deco X50-5G ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

WiFi 6 Upgrades Everything
Armed with WiFi 6 technology Deco whole home mesh WiFi is designed to deliver a huge boost in coverage speed and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Better Signal for Connections Everywhere
With advanced 2.5 Gigabit port Deco X50-5G provides reliable warp-speed connections for high-intensive wired devices. When it’s set as a wireless router both Ethernet ports support being used as backup broadband access points.
Furthermore two external antenna ports allow external antenna access which can receive 5G/4G signals more effectively resulting in improved 5G/4G performance.

Seamless Roaming with One WiFi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home creating a truly seamless WiFi experience.

Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield safer internet experiences bring more happiness to your smart living.

Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device prioritize your own and set up a guest network.

Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco X50-5G with just your voice.

All Decos Work Together
Deco X50-5G is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.

Specification

Standards and Protocols
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds
AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range
1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4x LTE/5G internal antennas + 2x Wi-Fi internal antennas
+ 2x external antenna interface
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity
High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices

Working Modes
5G/4G Router Router Access Point

Network Security
SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network

WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

Ports and Connections
1x 2.5 Gigabit port + 2x 1 Gigabit ports
(WAN/LAN auto-sensing)

Compatibility
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28
4G TDD-LTE: B38/B40/B41/B42/B43
3G: B1/B5/B8

Protocols
IPv4
IPv6

Service Kit
HomeShield

WAN Types
Dynamic IP
Static IP
PPPoE
L2TP
PPTP

Quality of Service
HomeShield QoS
QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link

Management Features
Deco App

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DNS
Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20001 Protocol: TCP
Port: 30001 Protocol: TCP
Port: 20002 Protocol: UDP

WiFi Transmission Power
CE:
=20 dBm (2.4 GHz)
=23 dBm (5 GHz)

Dimensions (W x D x H)
8.3 x 5.1 x 4.8 in
(210.5 x 130 x 123mm)

Certification
RoHS CE RCM

Package Content
1 Deco X50-5G unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
