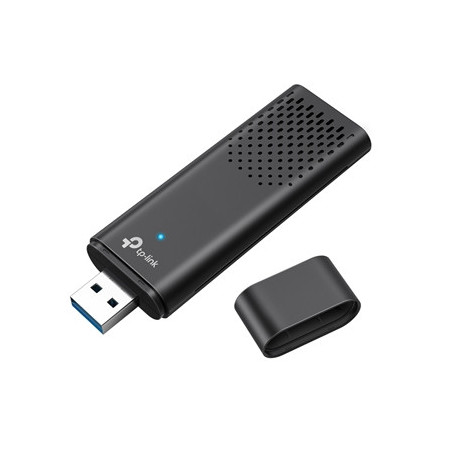

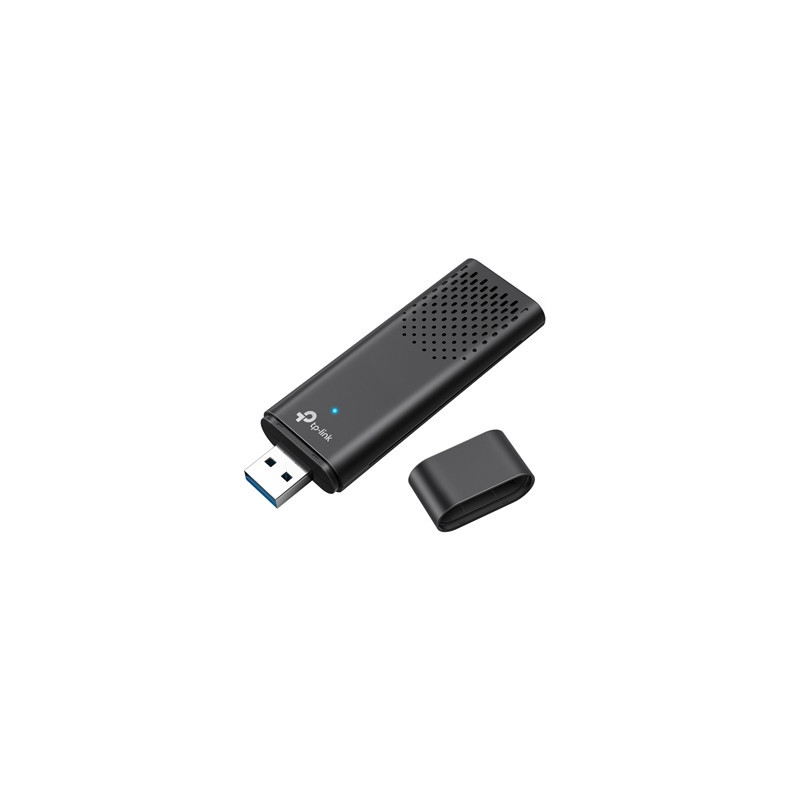

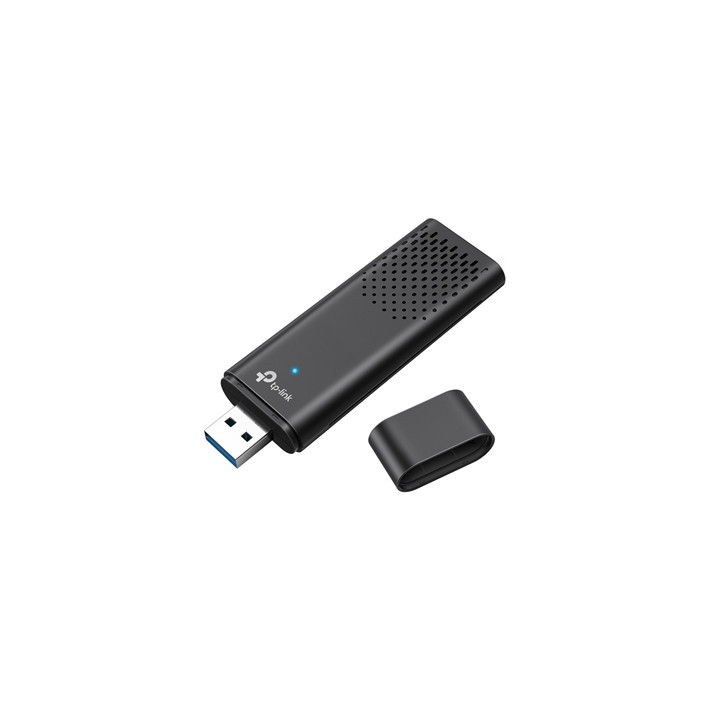

TP-Link Archer TX20U AX1800 High Gain Dual Band Wi-Fi 6 USB Adapter

Fast WiFi 6
Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).

Dual Band Wireless
2.4 GHz and 5 GHz bands for flexible connectivity.

Broader Coverage
Connect to your WiFi from wherever in your home with high-performance antennas and Beamforming.

Lower Latency Gameplay
OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.

Improved Security
WPA3 provides the latest security enhancements for personal password protection.

SuperSpeed USB 3.0
Up to 10x faster transfer speeds than USB 2.0

Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.

Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Lower Latency Higher Efficiency and Less Congestion
MU-MIMO
Experience flawless streams gameplay and uploads while your network simultaneously processes bandwidth for multiple devices.

OFDMA
Working with a compatible router your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi USB 3.0 makes Archer TX20U ideal for HD streaming online gaming and large file downloads.

Sci-fi Design Exquisite Details
The Archer TX20U features our advanced molding technology for a premium matte finish. The ergonomic design allows you to easily take it and use it anywhere. The futuristic cooling hole design brings you the best performance.

Setup Made Easy
TX20U comes with its driver pre-loaded. Just plug and install.

Specifications

LED
Status

Dimensions (W x D x H)
90.2 x 29.2 x 12.9 mm (3.55 x 1.15 x 0.51 in)

Antenna
2x Dual-Band Antennas

Wireless Standards
IEEE 802.11a/b/g/n/ac/ax

Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Wireless Modes
Infrastructure mode

Wireless Security
WEP WPA/WPA2/WPA3 WPA-PSK/WPA2-PSK

Transmission Power
5 GHz: 19dBm(FCC) /21.5dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 18.5dBm(CE) (EIRP)

Certification
FCC CE RoHS

System Requirements
Supported operating systems include Windows 10 11

Package Content
AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter
Quick Installation Guide
