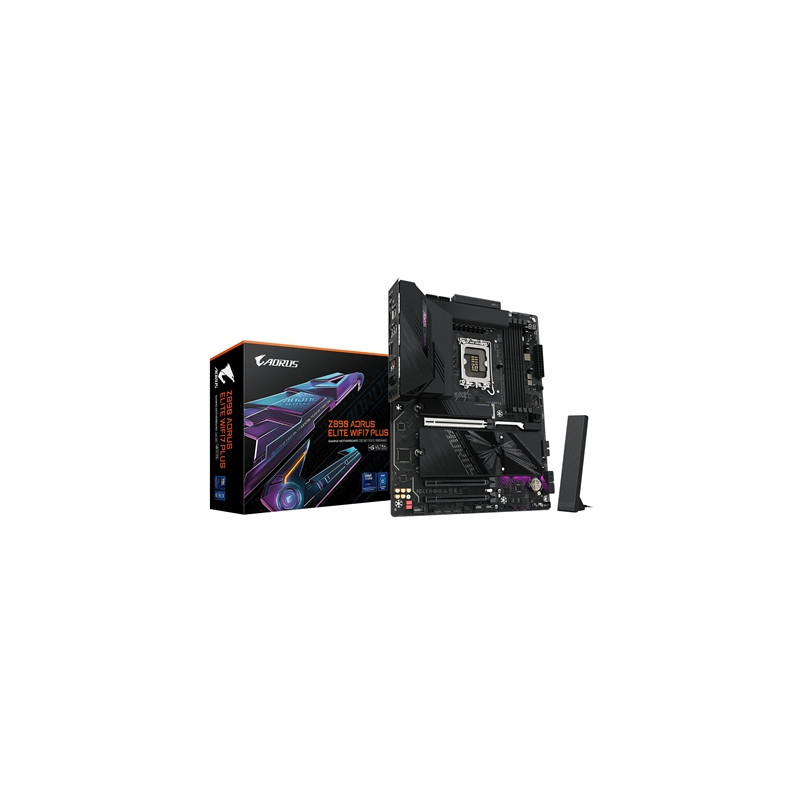

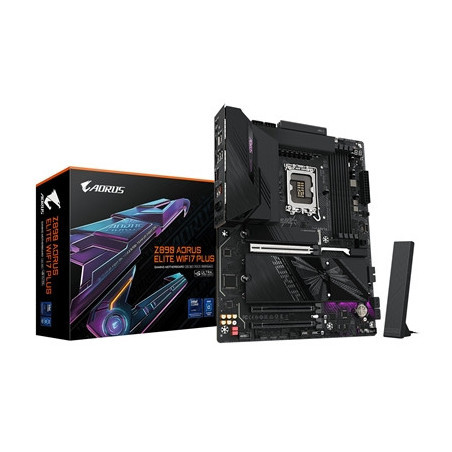

Gigabyte Z890 AORUS ELITE WIFI7 PLUS Intel 1851 Socket Motherboard ATX 4x DDR5 Slots 4x M.2 Sockets Fitted I/O Shield 5GbE LAN Wi-Fi 7 1x DisplayPort / 1x USB-C (USB4)
£267.42
VAT included
Gigabyte Z890 AORUS ELITE WIFI7 PLUS Intel 1851 Socket Motherboard ATX 4x DDR5 Slots 4x M.2 Sockets Fitted I/O Shield 5GbE LAN Wi-Fi 7 1x DisplayPort / 1x USB-C (USB4)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Z890 AORUS ELITE WIFI7 PLUS
Key Features
Ultra Turbo Mode: Unlock the Hidden performance
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive: Provides optimal and customized BIOS preset profile for users
Premium Compatibility: 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI: Multi-Theme AIO Fan Control and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: USB4 Type-C with DP-Alt DisplayPort
High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors
Specification
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® Z890 Express Chipset
Memory
Support up to DDR5 9466+MT/s (OC)
4 x DDR5 DIMM slots Dual Channel
Max. Capacity 256 GB
Support Non-ECC Un-buffered Clocked Unbuffered DIMM (CUDIMM)
Supports Intel® Extreme Memory Profile (XMP) memory module
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
Audio
Realtek® ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 7 BE200NGW
- 802.11a b g n ac ax be supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
Expansion Slots
CPU:
- 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots supporting PCIe 4.0 and running at x4(PCIEX4_1 PCIEX4_2)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3 M key type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3 M key type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for NVMe SSD storage devices
RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices
USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
