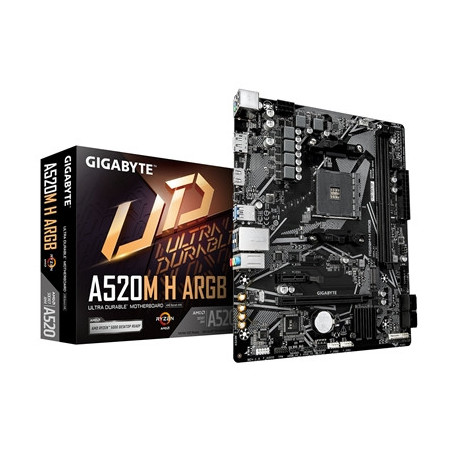

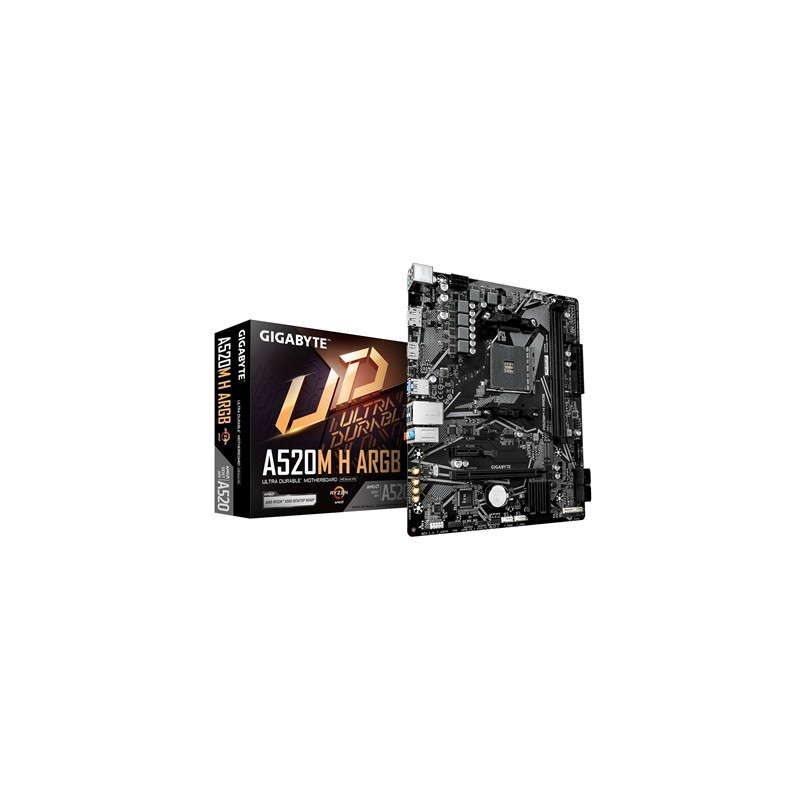

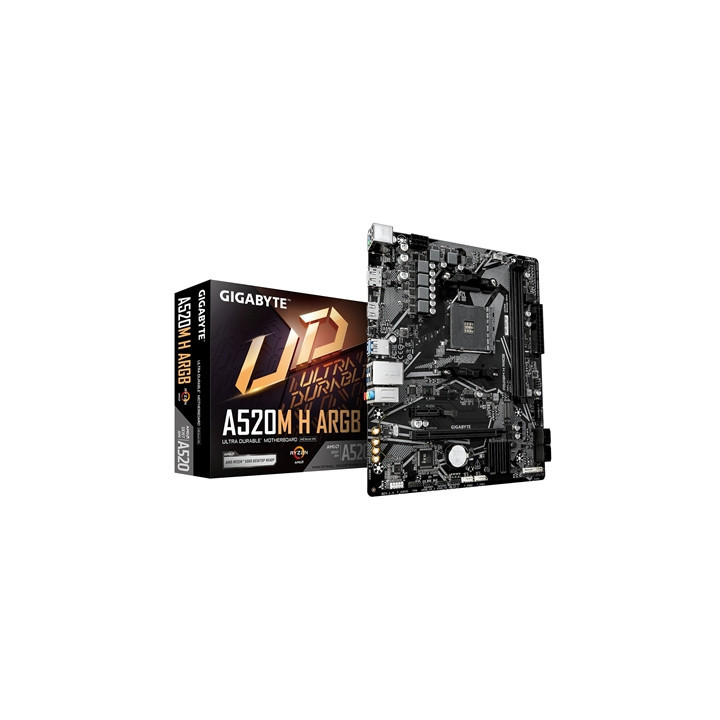

Gigabyte A520M H ARGB AMD AM4 Socket Motherboard Micro-ATX 2x DDR4 Slots 1x M.2 Socket GbE LAN 1x DisplayPort / 1x HDMI Port

A520M H ARGB

Key Features
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors?
Dual Channel ECC/ Non-ECC Unbuffered DDR4 2 DIMMs?
Integrated ARGB header and Q-Flash Plus button
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support?
Fast Network: GbE LAN
8-Channel HD Audio with High Quality Audio Capacitors?
Rear HDMI and DisplayPort for Multi-display Support
Smart Fan 6 Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP?
GIGABYTE CONTROL CENTER (GCC) Simple and Easy Use

Specification

CPU
AMD Socket AM4 support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors

Chipset
AMD A520

Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version HDCP 2.3 and HDR.

- 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version HDCP 2.3 and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication Module
N/A

Expansion Slots
CPU:
- 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1

Storage Interface
1 x M.2 connector integrated in the CPU supporting Socket 3 M key type 2280 SATA and PCIe 3.0 x4/x2 SSD support
4 x SATA 6Gb/s connectors
RAID 0 RAID 1 and RAID 10 support for NVMe SSD storage devices
RAID 0 RAID 1 and RAID 10 support for SATA storage devices

USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (2 ports on the back panel 4 ports available through the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort*
1 x HDMI port*
1 x Q-Flash Plus button
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup

Bundled Software
Norton Internet Security (OEM version)

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 23.3cm x 19.8cm
