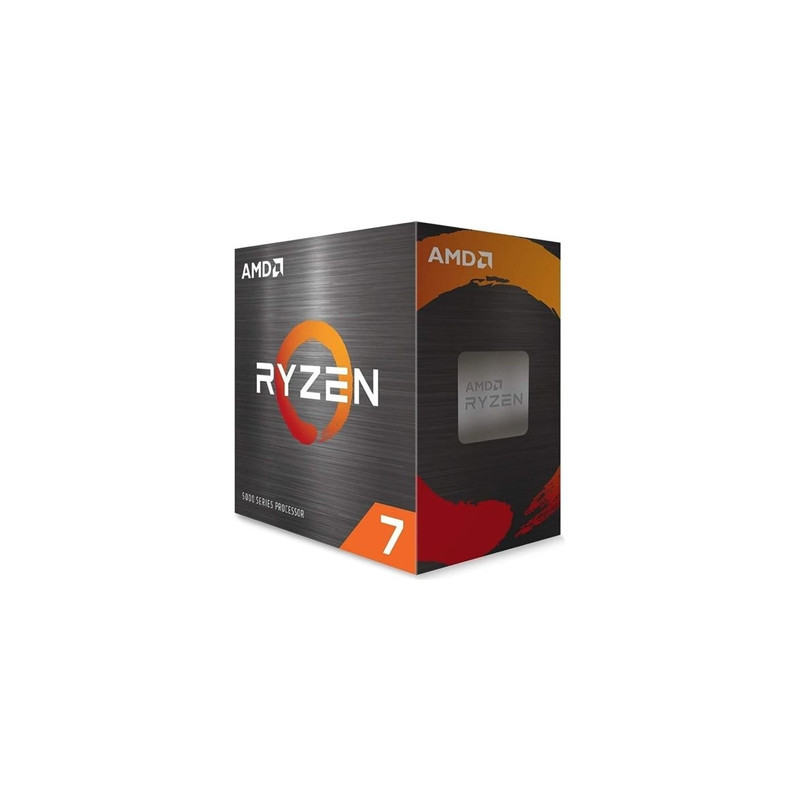

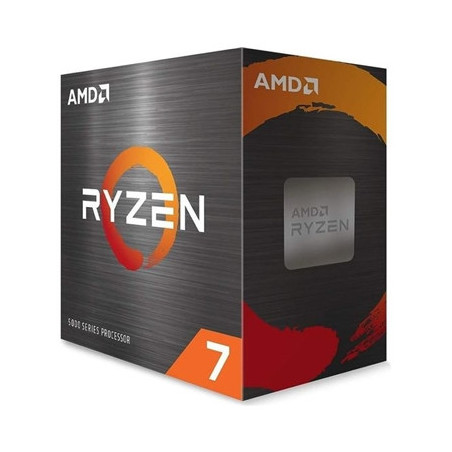

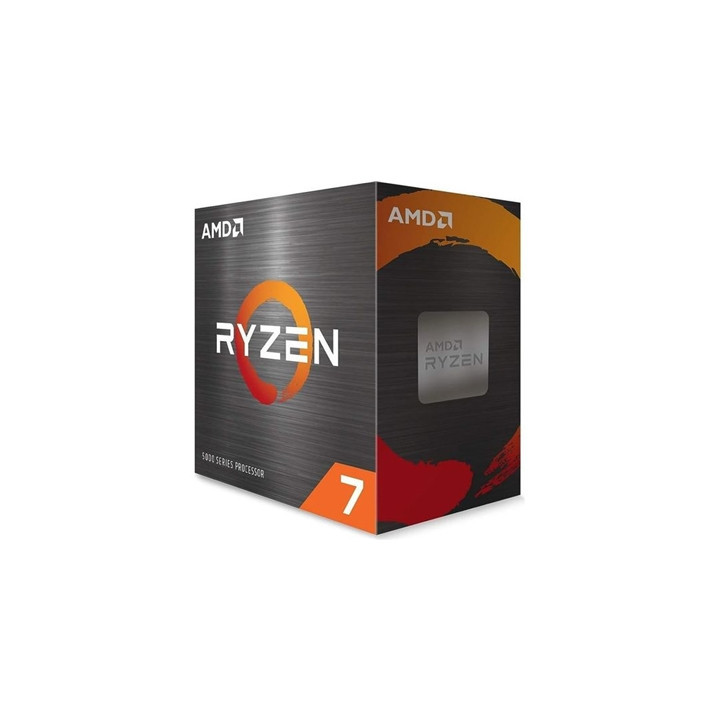

AMD Ryzen 7 5800XT 8 Core AM4 Processor 16 Threads 3.8GHz up to 4.8GHz Boost 36MB Cache 105W No Graphics

AMD Ryzen 7 5800XT

Specifications

Name
AMD Ryzen 7 5800XT

Family
Ryzen

Series
Ryzen 5000 Series

Form Factor
Boxed Processor Desktops

Former Codename
Vermeer

Processor Architecture
Zen 3

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 4.8 GHz

Base Clock
3.8 GHz

L1 Cache
512 KB

L2 Cache
4 MB

L3 Cache
32 MB

Default TDP
105W

Processor Technology for CPU Cores
TSMC 7nm FinFET

Processor Technology for I/O Die
12nm (Globalfoundries)

CPU Compute Die (CCD) Size
74mm²

I/O Die (IOD) Size
125mm²

Package Die Count
2

Unlocked for Overclocking
Yes

CPU Socket
AM4

Supporting Chipsets
X570 B550 A520 X470 B450

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES AMD-V AVX AVX2 FMA3 MMX-plus SHA SSE SSE2 SSE3 SSE4.1 SSE4.2 SSE4A SSSE3 x86-64

Max. Operating Temperature (Tjmax)
90°C

*OS Support
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 3.2 Gen 1 (5Gbps)
0

Native USB 2.0 (480Mbps)
0

Native SATA Ports
2

PCI Express Version
PCIe 4.0

Native PCIe Lanes (Total/Usable)
24 20

Additional Usable PCIe Lanes from Motherboard
amd_x570 16x Gen 4
amd_x470 2x Gen 3 8x Gen 2

NVMe Support
Boot RAID0 RAID1 RAID10

System Memory Type
DDR4

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
Discrete Graphics Card Required

Supported Technologies
AMD Zen 3 Core Architecture AMD StoreMI Technology AMD Ryzen™ Master Utility AMD Ryzen™ VR-Ready Premium
