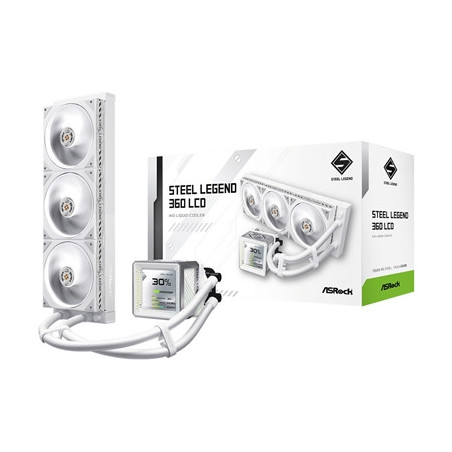

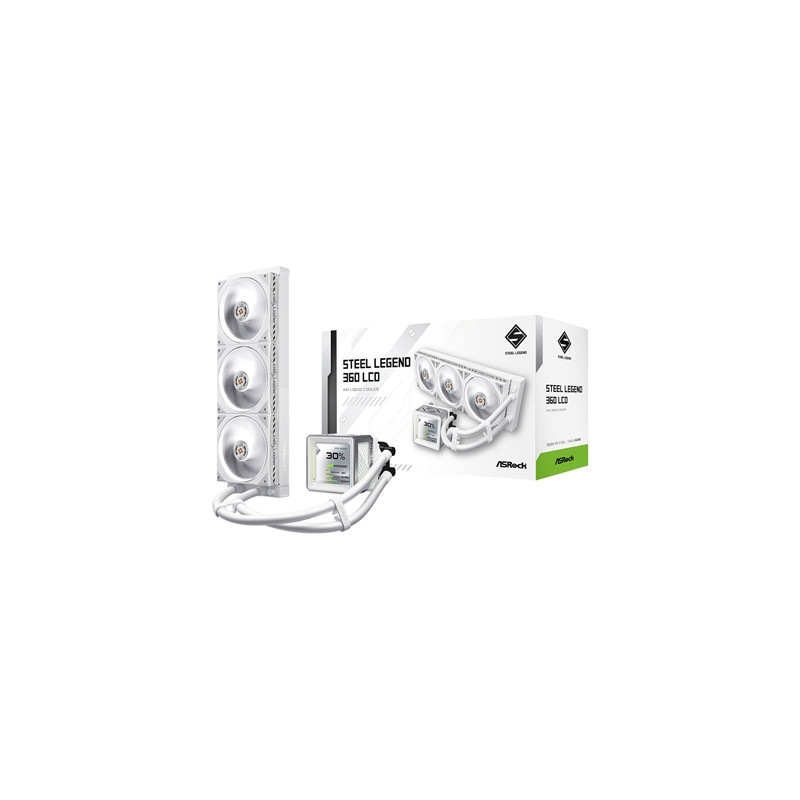

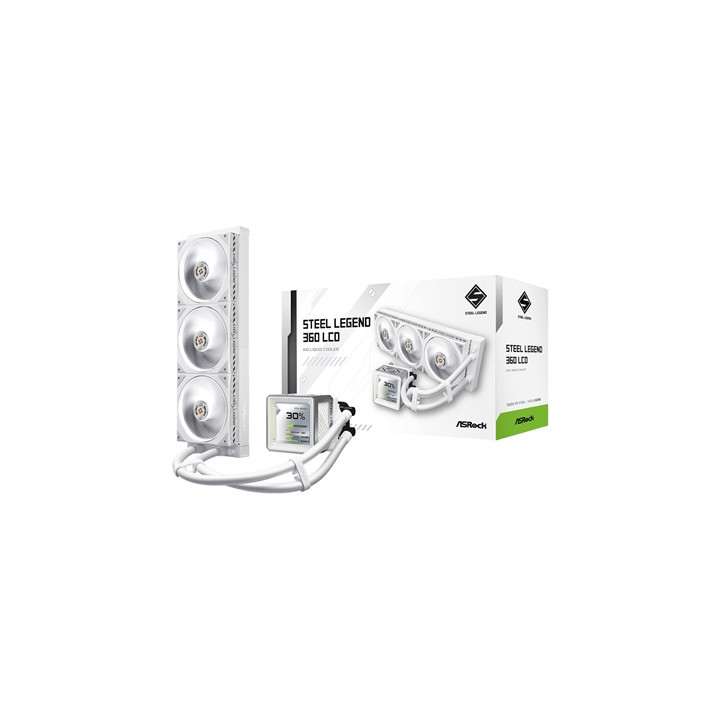

ASRock Steel Legend 360 LCD White AIO Liquid CPU Cooler 360mm Radiator Triple 120mm PWM ARGB Fans LCD Display Intel LGA1700/1851 & AMD AM5/AM4 Compatible
£154.67
VAT included
ASRock Steel Legend 360 LCD White AIO Liquid CPU Cooler 360mm Radiator Triple 120mm PWM ARGB Fans LCD Display Intel LGA1700/1851 & AMD AM5/AM4 Compatible
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
ASRock Steel Legend 360 LCDAIO Liquid Cooler - White
Steel Legend 360 LCD
Steel Legend stands for uncompromising strength and enduring reliability.
With industrial-grade dual-ball bearings and aerospace-grade LCP fan blades it delivers steadfast cooling performance and long-lasting durability — a true legend forged in steel.
3.4 Full-Color LCD Display
A 3.4 full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.
Polychrome DISPLAY
Combines real-time monitoring with customizable visuals letting users display system stats preferred images or animations — all through an intuitive interface with multi-language support.
Customizable Animations
Explore built-in animations or import your own for a fully customized display experience.
Next-Gen Cooling System
Next-Gen Cooling Pump
Precision-engineered structure and automotive-grade components powered by a 3-phase 6-slot 4-pole motor for stronger flow extended durability and peak cooling performance for unwavering CPU stability.
Continuous Magnetic Field: - Continuous rotating magnetic field for higher energy conversion efficiency.
Low Torque Ripple: - Low torque ripple ensures smooth and stable operation.
Balanced Current Load: - Balanced current distribution minimizes copper loss.
Reduced Core Loss: - Reduced core loss improves overall operating efficiency.
Lower Thermal Output: - Lower thermal output maintains efficiency during prolonged operation.
Simplified Motor Architecture: - No starting capacitors or coils required improving reliability.
Dual-Side Inlet Cooling Path
The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions the design helps keep temperatures more even and improves overall thermal efficiency.
Optimized Thermal Fan Design
Targeted Airflow Technology
Integrated ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency.
Striped Ring Fan
The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator driving high-volume intake to keep power delivery components cool and stable while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency.
Aerospace-grade LCP Fan
LCP Blade Structure
Crafted from aerospace-grade LCP (Liquid Crystal Polymer) the blades maintain flawless geometry under extreme RPM and thermal stress — ensuring enduring precision durability and performance stability.
Copper Alloy Bearing Hub
Crafted for superior concentricity ensuring stable and effortless rotation under extreme conditions.
Dual-ball Bearing
The dual-bearing mechanism delivers consistent long-lasting performance even under continuous high-temperature operation.
0dB Silent Cooling Technology
Fan stops completely under low load for absolute silence and extended lifespan.
POLYCHROME RGB
Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support experience perfectly synchronized full-system RGB illumination with seamless control.
SignalRGB
SignalRGB unifies your RGB devices offering seamless customization game-reactive effects macro automation and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.
Hidden Connection Design
Clean Build Aesthetic
Cables remain hidden between fans with only a single cable required to connect to the motherboard for a cleaner build.
ASRock Therm-X1 Thermal Grease
High thermal conductivity enables efficient heat transfer enhancing system stability and extending CPU lifespan.
Specifications
Model Number
90-ASLA36-WAAGA5
Compatibility
AMD:AM5 AM4
Intel:LGA1851 1700
Water Block
Dimension:(L)100.4 x (W)86 x (H)107.6 mm
Material (Cold Plate):Copper
LEDs :ARGB
Radiator
Dimension:(L)397 x (W)120 x (H)27 mm
Material:Aluminum
Pump
Speed:1200 - 3100 ± 10% RPM
Current/ Voltage:0.38A/ 12V
Connector:PWM (4-Pin)
VRM Fan
Dimension:(L)70 x (W)70 x (H)25 mm
Speed:(Max.) 3000 ± 10% RPM
Connector:PWM (4-Pin)
Current/ Voltage:0.12A/ 12V
Radiator Fan
Dimension:(L)120 x (W)120 x (H)28 mm
Speed:0 - 2500 ± 10% RPM
Air Flow:(Max.) 76.7 CFM
Air Pressure:(Max.) 4.16 mmH20
Noise:(Max.) 38.3 dB(A)
Connector:PWM (4-Pin)
Current/ Voltage:0.30A/ 12V
Bearing:Dual-ball Bearing
LEDs:ARGB Gen1
Screen
Type:IPS LCD
Size:3”
Resolution:480 x 480
Display Color:24-bit
Brightness:250 cd/m²
Refresh Rate:60 Hz
Frames Per Second (FPS):60 FPS
Connector:USB Type-C to Motherboard 9-Pin
Tubing
Material:IIR + EPDM
Length:450mm
Warranty
AIO Cooler Module:6 years
Display Module:2 years
