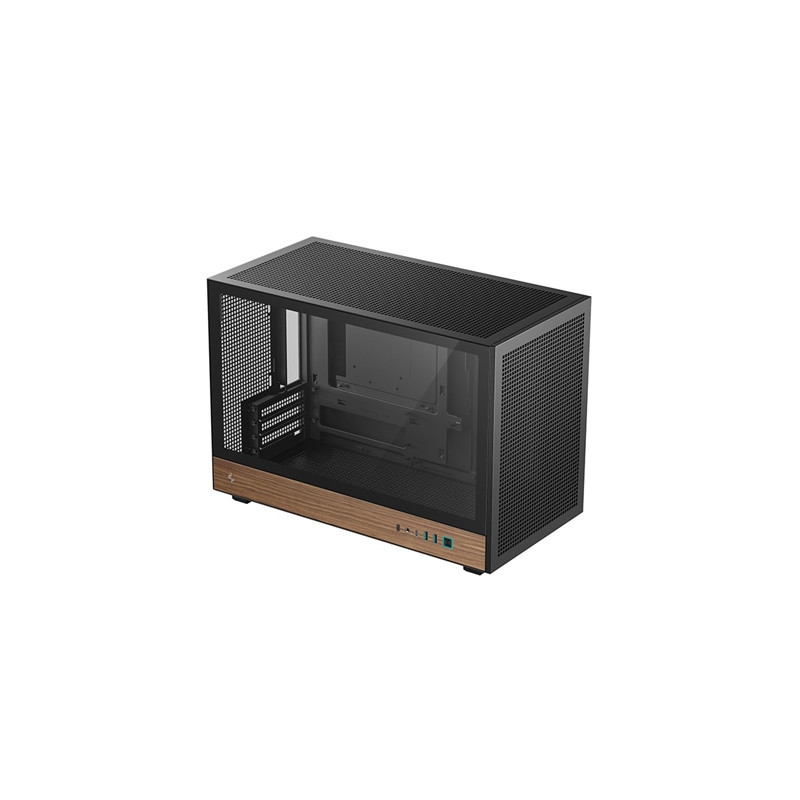

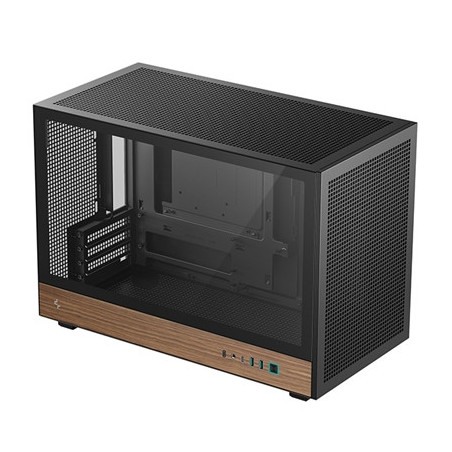

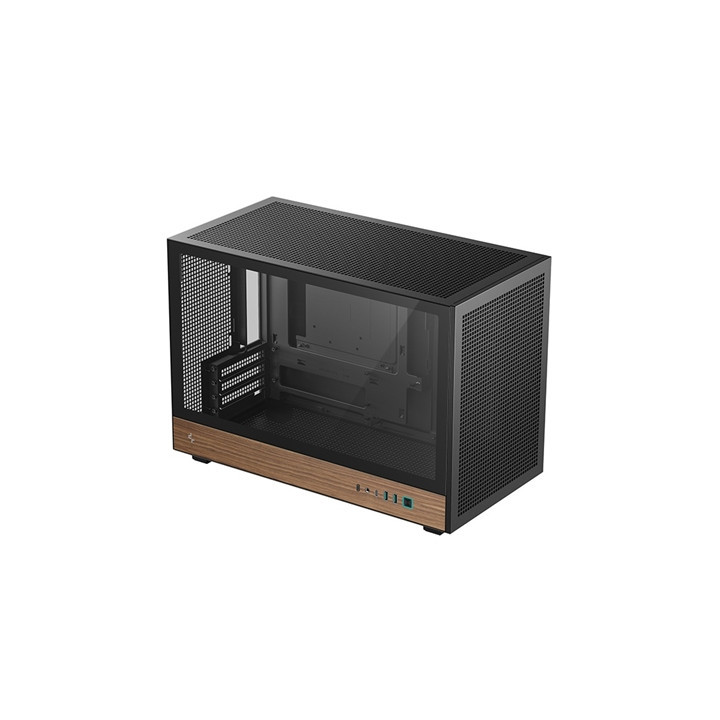

DeepCool CH260 Micro-ATX Mini Tower PC Gaming Case Wood Tempered Glass Side Panel USB Type-C High Airflow Supports ATX PSU & RTX GPUs Black

DeepCool CH260 Wood Case

The CH260 series is an expanded version of the classic DeepCool ITX case CH160 capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel now available in a wood-grain option.

GO MICRO
The Micro Form Factor CH260 WOOD comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.

NATURAL AESTHETIC
The wood-grain I/O panel adds a natural elegance to the CH260 WOOD giving your build a furniture-like presence that fits beautifully into modern living spaces.

SMALL SIZE OUTSIDE FULL SIZE INSIDE
The CH260 WOOD provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.

Specifications

Product Dimensions
438mm*225mm*312.5mm(LxWxH)

Net Weight
5.3Kg

Materials
ABS+SPCC+Tempered Glass

Motherboard Support
Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector)

Front I/O Ports
USB3.0x2
Gen2 Type-C x1
Audio/Micx1

3.5 Drive Bays
1

2.5 Drive Bays
1

Expansion Slots
4

Fan Support
Front:2x120mm
Top:3x120mm/2x140mm
Rear: 1x120mm

Radiator Support
Front: NA
Top:120/140/240/280/360mm
Bottom: NA
Rear:120mm

CPU Cooler Height Limit
174mm

GPU Length Limit
388/413mm(No Front fans)

Power Supply Type
ATX PS2(maximum length: 150mm)

EAN
6933412765653

P/N
R-CH260-BKNWM0-G-1

SlotsPre-Installed Fans
None
