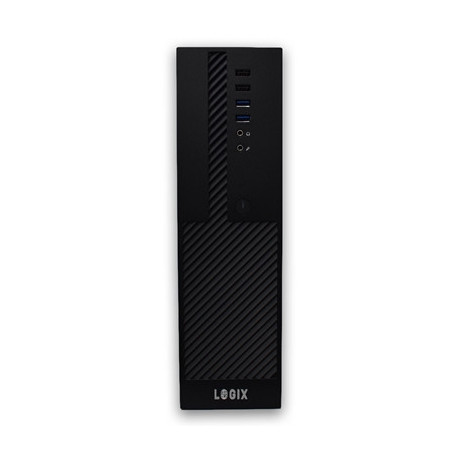

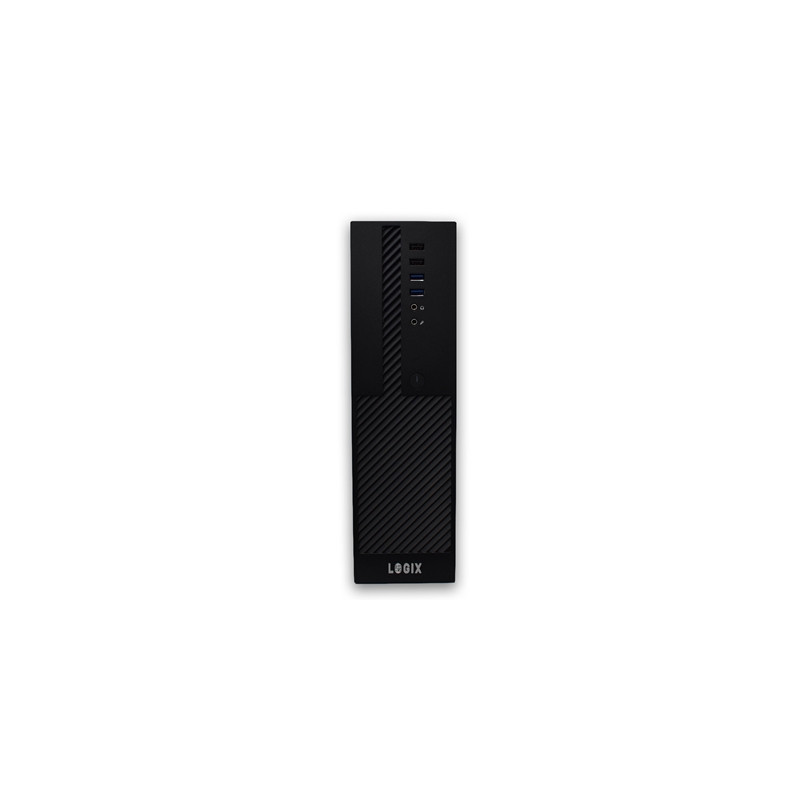

LOGIX Intel Core Ultra 5 10 Core Small Form Factor SFF Business / Education PC with 16GB DDR5 RAM 500GB SSD Windows 11 Pro Keyboard Mouse & 3 Year Warranty

Be Future Ready for AI
Prepare for the next era of PC gaming with an Intel Core Ultra processor-based AI PC. Unlock better streaming and gaming performance. Offload AI tasks like background removal audio optimisation and auto-framing to the NPU so you can stream and game smoothly.

Main Features

Compact & Stylish Case
The discreet LOGIX small form case fits perfectly in any home setup—small enough to save space yet roomy enough for powerful components and efficient cooling.

Fast & Reliable Performance
Powered by the latest Intel Ultra Core 5 processor with 10 cores and 10 threads it runs at a base speed of 2.70GHz and can boost up to 4.90GHz—ideal for multitasking streaming and everyday computing.

Smooth Multitasking
Comes with 16GB of ultra fast Kingston DDR5 memory giving you plenty of speed for browsing working and entertainment. You can upgrade later if needed.

Superfast Storage
A 500GB Kingston PCIe 4.0 NVMe SSD means lightning-fast boot times quick file access and smooth performance—much faster than traditional hard drives.

Whether you're working from home browsing the web watching movies or managing family tasks the LOGIX U1-516P delivers smooth reliable performance. It’s built with care in the UK combining quality components with a clean professional look—no flashy lights just solid performance.

Why It’s Great for Home Use

Quiet & Compact – Fits easily on or under a desk without taking up space.
Ready to Go – Comes with Windows 11 Pro pre-installed and updated. No bloatware so you get a clean fast experience from the start.
Secure & Stable – Wired-only internet connection helps reduce online threats.
Plug & Play – Includes a Logitech MK120 keyboard and mouse so you can get started right away.
Built to Last:
With trusted brands and high build standards this PC is designed to be futureproof and reliable. It even comes with a full 3-year warranty for peace of mind.

Specification:

Operating System:Windows 11 Pro
Processor:Intel Ultra Core 5 225
Memory (RAM):Kingston Technology 16GB DDR5 (upgradeable to 64GB DDR5)
Storage:Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Graphics:Intel Graphics (maximum resolution 7680 x 4320)
Motherboard:Gigabyte H810M Ultra Durable Motherboard
Case:LOGIX Small Form Factor
Connections:
Front –
2 x USB-A 3.0
2 x USB-A 2.0
3.5mm HD microphone & audio
Back:
1 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired:Realtek 1Gbps GbE LAN
Peripherals:Logitech MK120 Wired Keyboard & Mouse
Warranty:3 years - parts and collection included (UK mainland only)


Processor
Intel Core Ultra 5 225 2.7Ghz up to 4.9GHz 10 Core 10 Threads 20MB Cache Integrated Graphics

Processor Cores
10

Processor Threads
10

Core Clock Speed
2.70GHz

Core Boost Speed
4.90GHz

Total Cores: 10
# of Performance-cores: 6
# of Efficient-cores: 4
# of Low Power Efficient-cores: 0
Total Threads: 10
Max Turbo Frequency: 4.9 GHz
Performance-core Max Turbo Frequency : 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core Base Frequency: 3.3 GHz
Efficient-core Base Frequency: 2.7 GHz
Cache: 20 MB Intel Smart Cache
Total L2 Cache: 22 MB
Processor Base Power: 65 W
Maximum Turbo Power: 121 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes

NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO WindowsML DirectML ONNX RT WebNN

Memory
Kingston ValueRAM KVR56U46BS8-16 16GB (1x 16GB) DIMM System Memory 5600MHz DDR5 CL46
Voltage: 1.10V
Latency Timing: CL46
Speed: 5600MT/s (PC5-44800)
1 x 16GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/500G) 500GB NVMe SSD M.2 Interface PCIe Gen4 2280
Data storage life
160 TBW
MTBF
1 500 000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 2200MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
GPU Name: Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.8 GHz
GPU Peak TOPS (Int8): 4
Graphics Output: eDP1.4b DP 2.1 UHBR20 HDMI 2.1 FRL
Xe-cores: 2
Max Resolution (HDMI): 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) (7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP) - Integrated Flat Panel) 3840 x 2400 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
H.264 Hardware Encode/Decode: Yes
H.265 (HEVC) Hardware Encode/Decode: Yes
AV1 Encode/Decode: Yes
Intel Quick Sync Video: Yes
# of Displays Supported: 2 Native (4 via daisy chain)
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
AI Software Frameworks Supported by GPU: OpenVINO WindowsML DirectML ONNX RT WebGPU

Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware

Card Reader
No Card Reader Fitted

Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Power Supply
300w TFX Pre-Fitted PSU

Motherboard
Gigabyte H810M K Intel 1851 Socket Motherboard Micro ATX 2x DDR5 Slots 1x M.2 Socket GbE LAN 1x DisplayPort / 1x HDMI Port

Expansion Slot
CPU:
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage
Chipset:
1 x M.2 connector (Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices

Rear I/O
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
LOGIX Small Form Purpose Built Robust Chassis

Drive Bays
5.25 x 0
3.5 x 1
2.5 x 2

IO Ports
2 x USB 3.0
2 x USB 2.0
HD Mic
HD Audio
Power

Cooling
1 x 80mm fan included

Dimensions
321mm x 95mm x 283mm (W x H x D)

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
