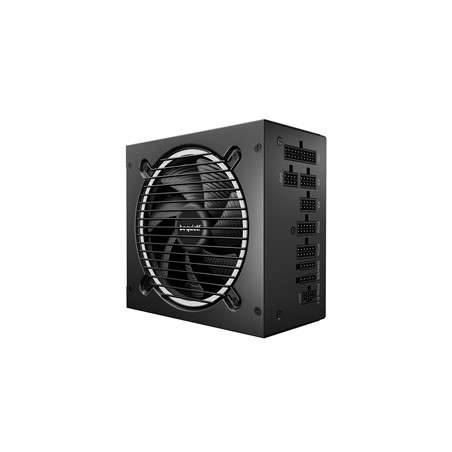

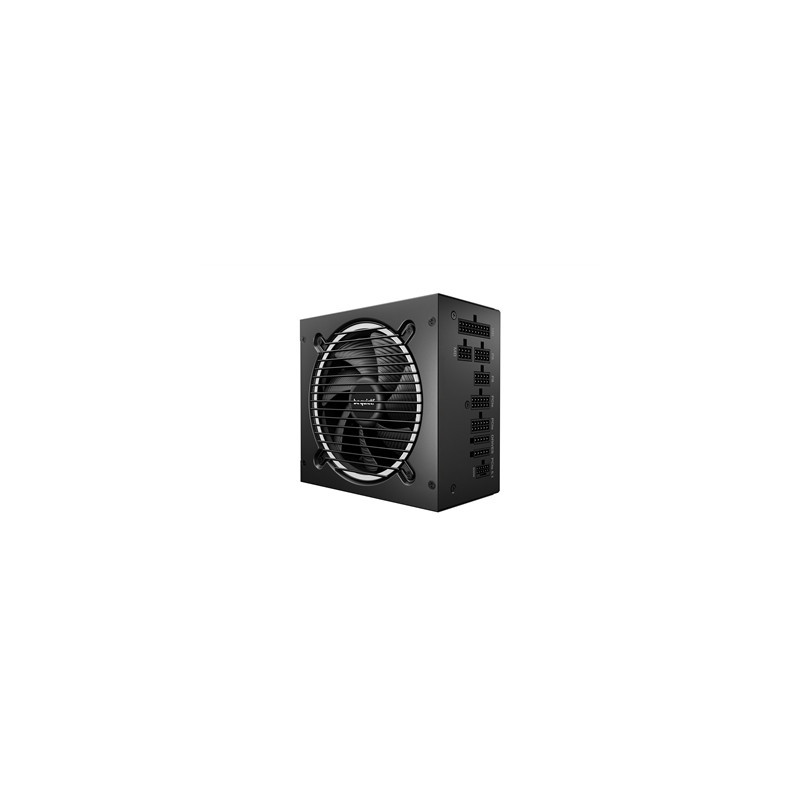

be quiet! Pure Power 13 M 1200W PSU 80 PLUS Gold Exceptionally Quiet 120mm Fan ATX 3.1 10 Year Warranty

be quiet! PURE POWER 13 M

Exceptional quiet superior features
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.

80 PLUS Gold efficiency (up to 93.5%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Exceptionally silent semi-passive 120mm be quiet! fan
Semi-passive construction for quiet and energy-saving operation
LLC technology for advanced stability and voltage regulation
One massive high-performance 12V-rail
One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Full suite of safety features
Meets latest requirements for modern standby
10-year manufacturer’s warranty

Specifications

General data
Model PURE POWER 13 M | 1200W
Continuous power (W) 1200
Peak power (W) 1250
Form factor ATX 3.1
Form factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 15 / 7.5
Power factor at 100% load >0.97
Modern standby Yes
Power consumption in standby (W)<0.1
Average life time (h / 25°C) >100 000
Operating temperature up to (°C) 40

Efficiency

80 PLUS certification Gold
Cybenetics ETA Gold
Efficiency (%) at 230V 2% load 75.9
Efficiency (%) at 230V 10% load 91.2
Efficiency (%) at 230V 20% load 93.4
Efficiency (%) at 230V 50% load 93.6
Efficiency (%) at 230V 100% load 90.8

Fan and cooling technology
Cybenetics LAMBDA A
Fan Silence-optimized be quiet! fan
Fan size (mm) 120
Bearing technology Rifle
Motor technology 4-pole fan motor
Max. fan speed (rpm) 2700
dB(A) at 10% load 9.8
dB(A) at 20% load 9.8
dB(A) at 50% load 11.6
dB(A) at 100% load 32.3

Output
Multi-rail operation (12V rails) -
12V single rail operation Yes
Overclocking key -
+3.3V (A) 22
+5V (A) 22
+12V1 (A) 100
+12V2 (A) N/A
+12V3 (A) N/A
+12V4 (A) N/A
+12V5 (A) N/A
+12V6 (A) N/A
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 1200
Max. combined power 12V-2x6 (W) 600
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 19.11
Hold-up time at 80% load (ms) 25.54
Power good signal (ms) 100 - 150

Cables and connectors
Modular cables Yes
Sleeved cables Yes
Flat cables Yes
Maximum cable length (cm) 95
Cable length to motherboard (cm) 55
No. of cables 8
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12V-2x6 cables 1
PCI-E 6+2-pin (GPU) 4
PCI-E 6-pin (GPU) -
SATA 6
PATA 2
FDD (Floppy) -

Protection
OTP (over temperature protection) Yes
OCP (over current protection) Yes
OPP (over power protection) Yes
SCP (short circuit protection) Yes
OVP (over voltage protection) Yes
UVP (under voltage protection) Yes
SIP (Surge & Inrush protection) Yes

Safety certification
BSMI Yes
CB Yes
CCC Yes
CE Yes
cRUus -
cTUVus Yes
CU Yes
FCC Yes
RCM Yes
TÜV Yes
UKCA Yes
IRAM Yes

Environmental directives
ENERGY STAR 9.0
ErP Yes
WEEE Yes
RoHS Yes
Triman -

Scope of delivery
Thumb screws -
Screws Yes
Cable ties Yes
Velcro cable ties -
User manual languages CN DE EN ES FR JP PL RU TW
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -

Casing
Dimensions without cable (L x W x H) (mm) 160 x 150 x 86
Weight (kg) 2.69
Color Black

Service
Warranty (Years) 10
Express replacement service in first year -
International hotline / free of charge Yes/ DE FR
