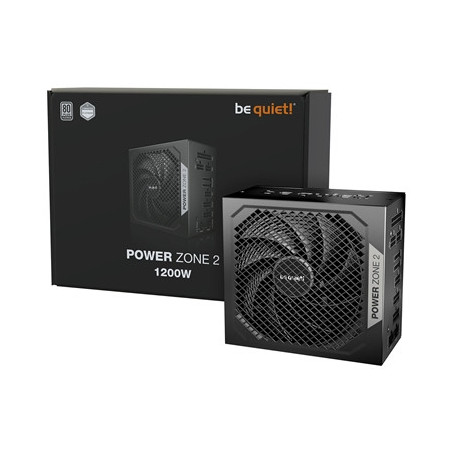

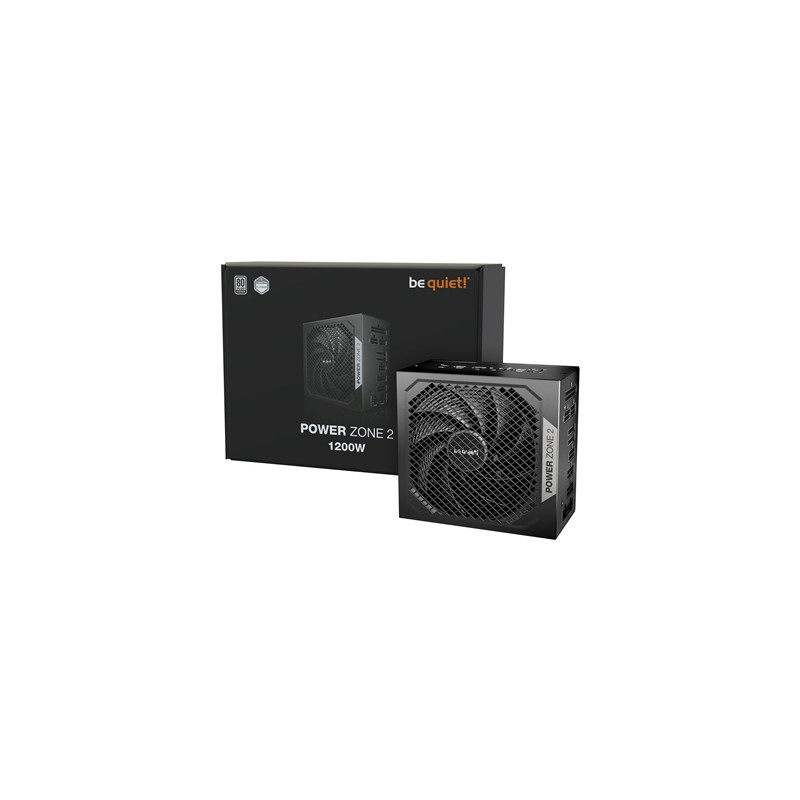

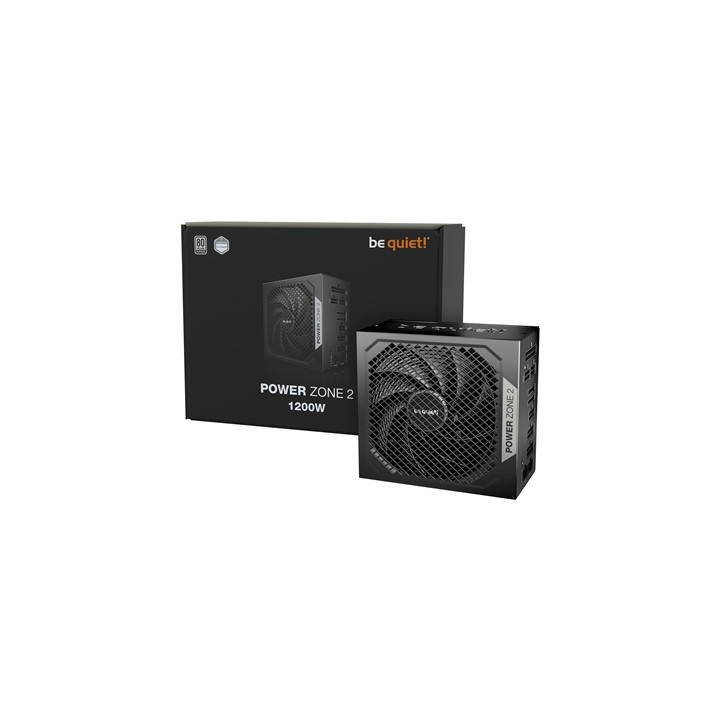

be quiet! Power Zone 2 1200W Semi-passive zero-RPM cooling 2 x 90' angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility 10-year manufacturer's warranty.

The be quiet! Power Zone 2 1200W (MPN: BP030EU) is a high-performance fully modular power supply engineered for enthusiast gaming PCs and professional workstations. Designed to meet the latest ATX 3.1 standard it delivers PCIe 5.1 compatibility with native 12V-2x6 connectors for next-generation GPUs. With 80 PLUS Platinum efficiency and semi-passive cooling it provides exceptional power stability efficiency and near-silent operation backed by a 10-year manufacturer’s warranty.

Key Features
Continuous / Peak Power:1200W continuous / up to ~1270W peak
Efficiency:80 PLUS Platinum
Compliance:ATX 3.1 EPS 12V v2.92
PCIe Support:2 x native 12V-2x6 PCIe 5.1 connectors plus 3 x 6+2-pin PCIe connectors
Rail Design:Single high-capacity 12V rail for stable handling of transient power spikes
Cooling:140mm Pure Wings 3 fan with semi-passive zero-RPM mode at low load
Topology:Advanced LLC + SR + DC/DC topology with digital control
Modularity:Fully modular flat and sleeved cables for optimal airflow and clean builds
Warranty:10-year manufacturer’s warranty; MTBF >100 000 hours

Full Technical Specification

Model / MPN:
Power Zone 2 1200W (BP030EU)

Form Factor:
ATX 3.1 (EPS 12V v2.92)

Power Output:
1200W continuous / ~1270W peak

Efficiency Rating:
80 PLUS Platinum

Input Voltage:
100–240VAC

Input Frequency:
50–60Hz

Input Current:
~15A @ 230VAC ~7.5A @ 115VAC

Power Factor:
0.97 at full load (active PFC)

Modern Standby:
Supported; low standby power consumption

Operating Temperature:
Up to 40°C

MTBF:
100 000 hours at 25°C

Rail Operation:
Single 12V rail rated at approximately 100A+

Additional Rails:
+3.3V and +5V auxiliary rails; -12V and +5VSB supported

Hold-up Time:
Compliant with ATX 3.1 specifications

Protections:
OCP OVP UVP OPP OTP SCP surge and inrush protection

Fan:
140mm Pure Wings 3 fan with semi-passive zero-RPM operation

Noise Levels:
Extremely quiet at low to medium loads; increases gradually under sustained full load

Modularity:
Fully modular cable system using flat and sleeved cables

Cable Length:
Up to ~100cm maximum cable length

Connectors:
1 x 20+4-pin ATX
1 x 8-pin CPU (P8 / EPS)
1 x 4+4-pin CPU (P4+4 / EPS)
2 x 12V-2x6 PCIe 5.1
3 x 6+2-pin PCIe
7 x SATA power
1 x PATA (legacy)

Dimensions:
~160 x 150 x 86mm (W x D x H)

Warranty:
10-year limited manufacturer’s warranty
