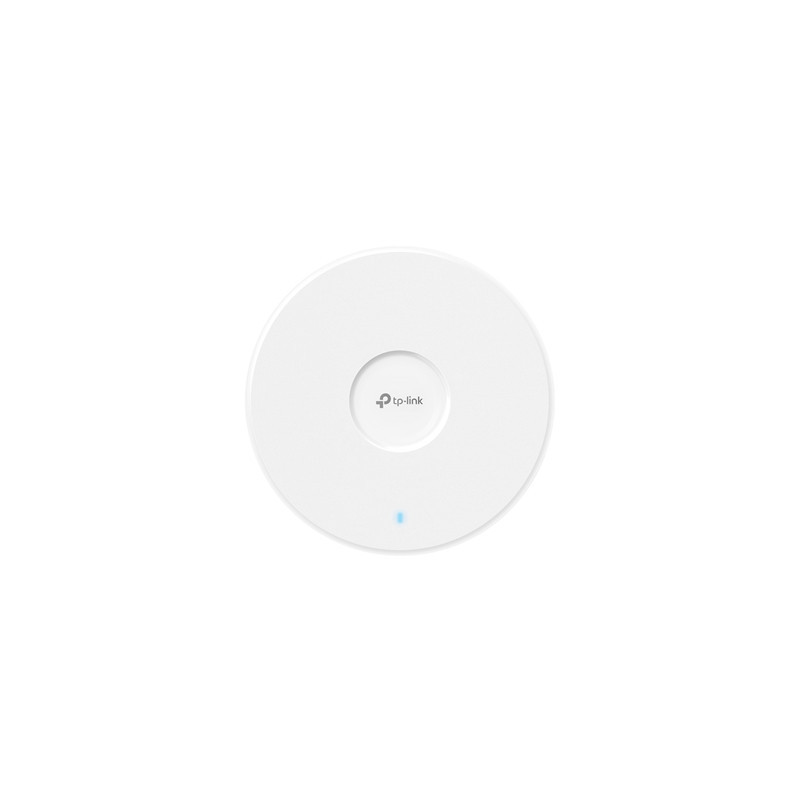

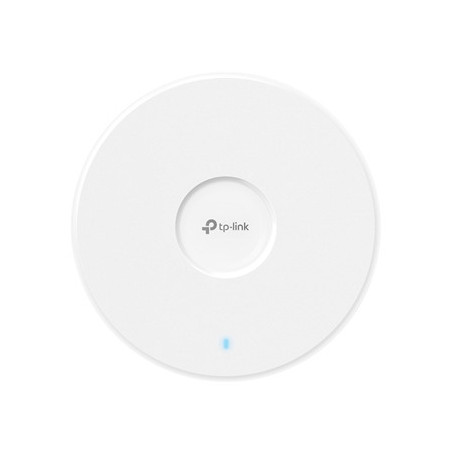

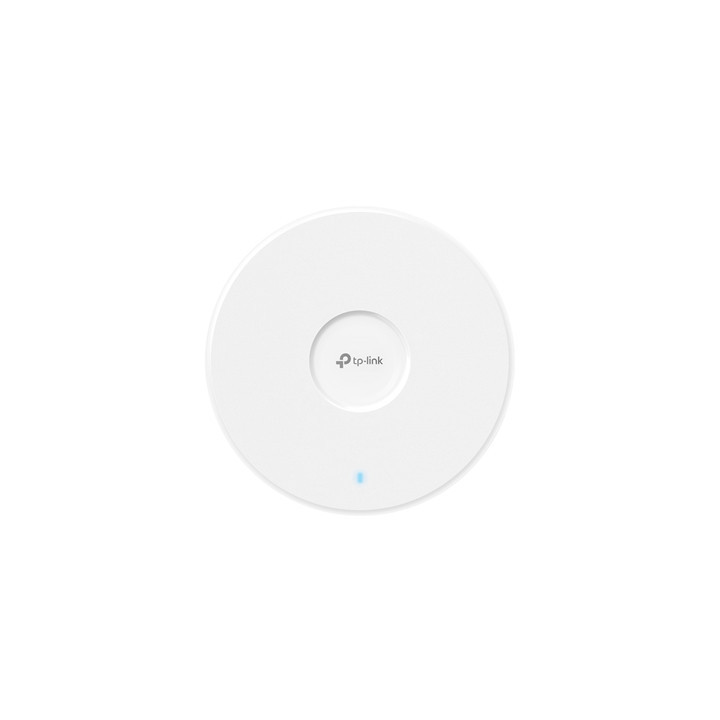

TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Features

BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1x 2.5G Port: Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Advanced Functions: Supports centralized management mesh and AI roaming

Specifications

HARDWARE FEATURES

Interface
1x 2.5G Ethernet Port

Button
Reset

Power Supply
802.3at PoE or 12V/2.5A DC

Max. Power Consumption
24.05 W (For PoE);
20.92 W (For DC)

Dimensions ( W x D x H )
8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm)

Antenna
2.4 GHz: 2 x 3.0 dBi
5 GHz: 2 x 3.0 dBi
6 GHz: 2 x 3.0 dBi

Bluetooth
1 x 4.0 dBi Bluetooth 5.2
*Firmware update may be required.

Mounting
Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage
140m squared(1500 ft²)

Concurrent Clients
380+**

Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be

Frequency
6 GHz 5 GHz and 2.4 GHz

Signal Rate
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)

Wireless Functions
MLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication

Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4 000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise

Transmission Power
<20 dBm (2.4 GHz EIRP)
< 23 dBm (5 GHz band 1&band 2 EIRP)
< 28 dBm (5 GHz band 3 EIRP)
< 23dBm (6 GHz EIRP)

Management Features

Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes. Require the use of an OC300 OC200 Omada Software Controller or an Omada Cloud-Based Controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1 v2c v3

System Logging Local/Remote Syslog
Yes

Web-based Management
Yes

OTHERS
Certification CE FCC RoHS IC

Package Content
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.

Environment
Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
