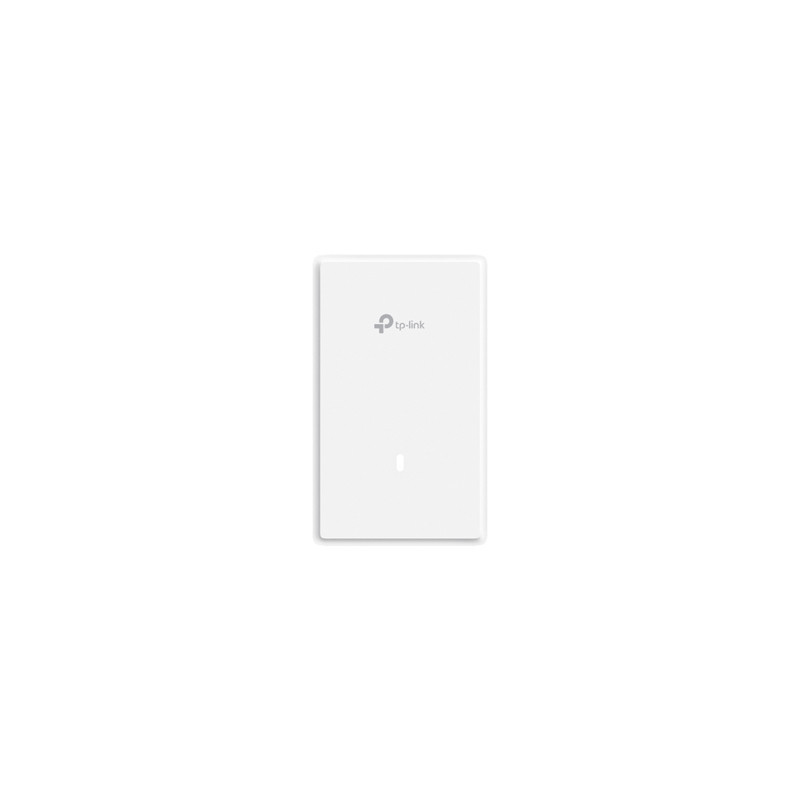

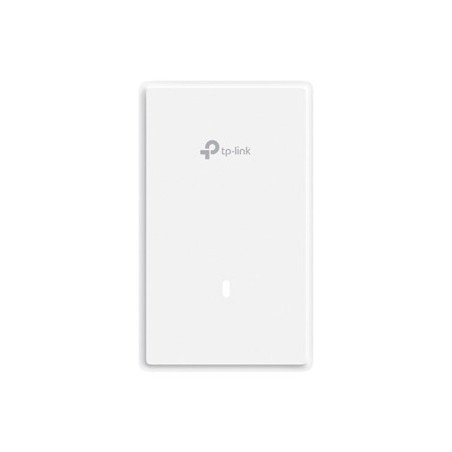

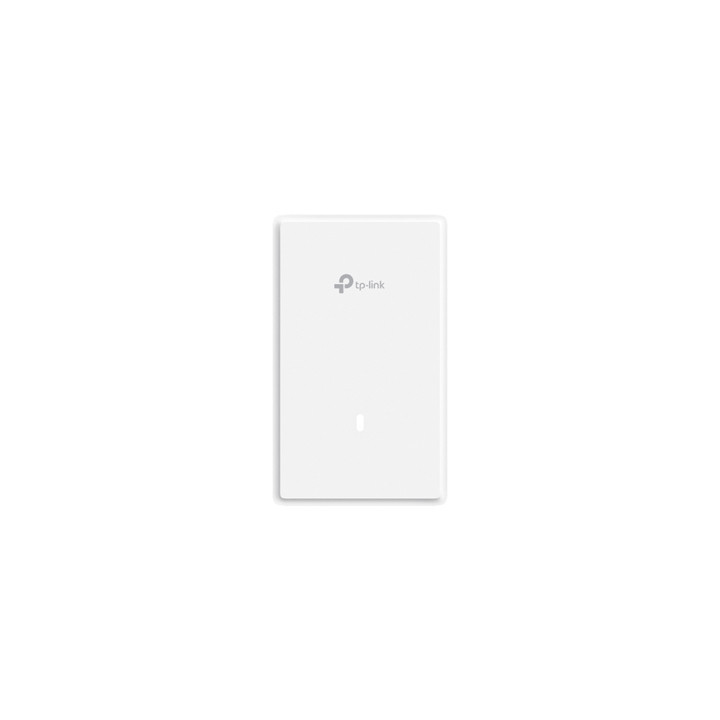

TP-Link Omada EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point

BE3600 Wall Plate Wi-Fi 7 Access Point

BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
1 x 2.5G PoE input port + 1x 2.5G pass-through port + 2x Gigabit RJ45 downlink ports.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management Mesh and Seamless Roaming.

Specifications

HARDWARE FEATURES

Interface
Uplink: 1 x 2.5G Ethernet Port
Downlink: 1 x 2.5G Ethernet Port + 2x Gigabit Ethernet Ports
(The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W the AP needs an 802.3bt input.)

Physical Security Lock
No

Button
Reset LED

Power Supply
802.3at/bt PoE

Max. Power Consumption
802.3bt: 17W (PoE Out support 15.4W)
802.3at: 17W (PoE Out support 7W)

Dimensions ( W x D x H )
143 x 86 x 40 mm (5.6 x 3.4 x 1.6 in)

Antenna
4x Internal Antennas
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi

Mounting
Wall Mounting (Screws included)

WIRELESS FEATURES

Coverage
50 M squared(600 ft²)**

Concurrent Clients
250

Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 2882 Mbps
2.4 GHz: Up to 688 Mbps

Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise
Transmission Power<20 dBm (2.4GHz EIRP)
<23 dBm (5GHz band 1 & band 2 EIRP)
<25 dBm (5GHz band 3 EIRP)

Management Features

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access
Yes. Require the use of an Omada controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1 v2c v3

System Logging Local/Remote Syslog
System Log

SSH
Yes

Web-based Management
Yes

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification CE RoHS

Package Content
EAP725-Wall
Installation Guide
Mounting Kits

System Requirements
Microsoft Windows XP Vista Windows 7 Windows 8 Windows10 Windows 11 Linux

Environment
Operating Temperature: 0–40 c (32–104 f)
Storage Temperature: -40–70 c (-40–158 f)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
