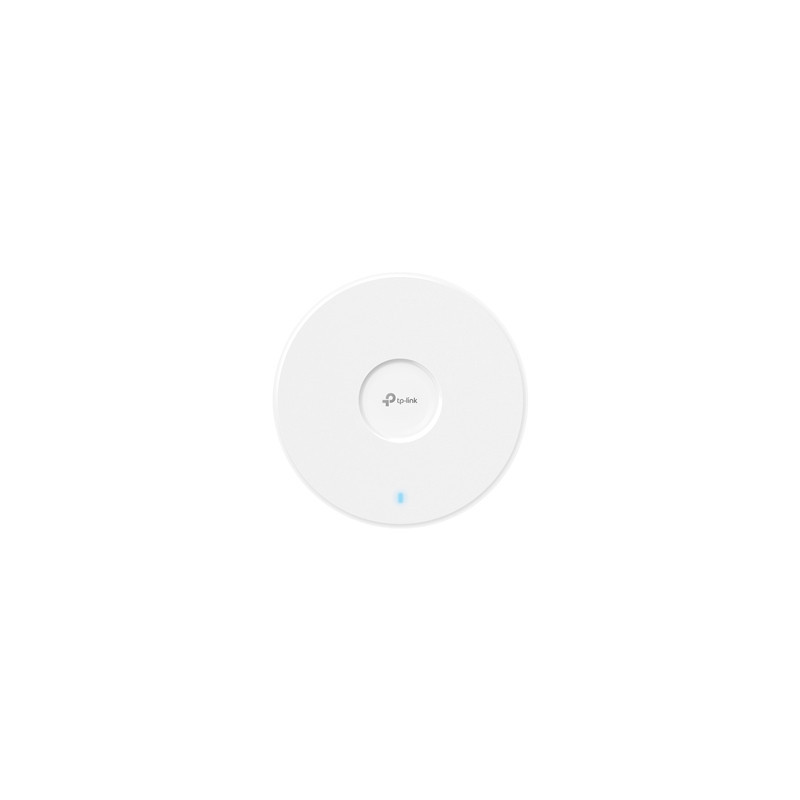

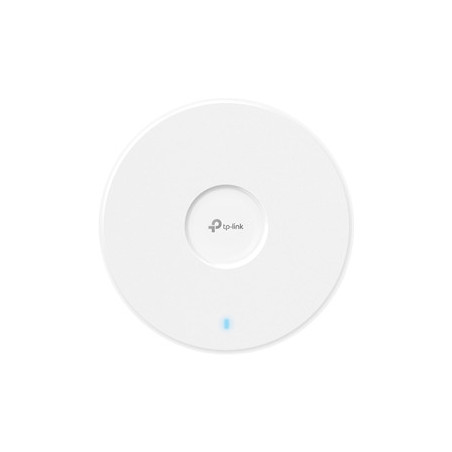

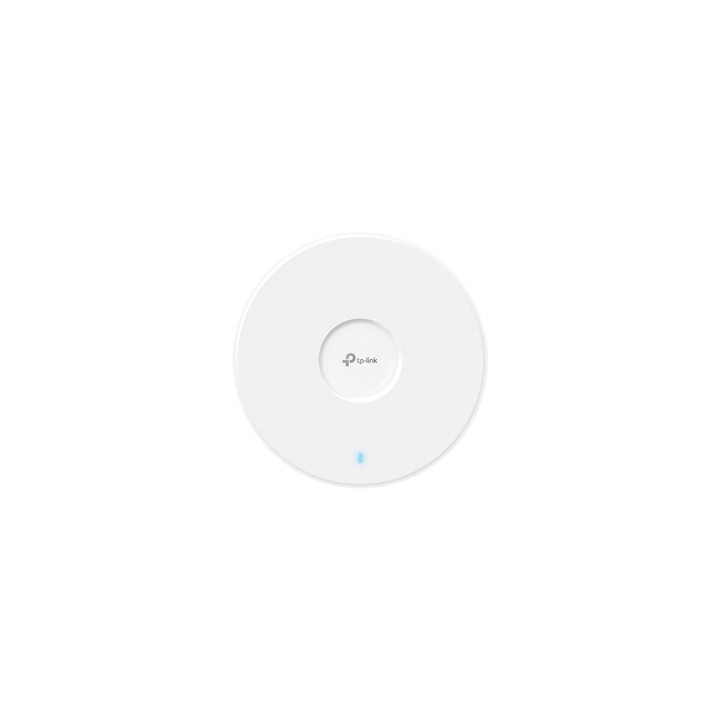

TP-Link Omada EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Features

BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1 x 2.5G port unlocks the full potential of Wi-Fi 7.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management Mesh and Seamless Roaming.

Specifications

HARDWARE FEATURES

Interface
1 x 2.5G Ethernet Port

Button
Reset

Power Supply
802.3at PoE or 12V/2.5A DC

Max. Power Consumption
18.6 W (For PoE);
16.0W (For DC)

Dimensions ( W x D x H )
6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm)

Antenna
2.4 GHz: 2 x 4.0 dBi
5 GHz: 2 x 5.0 dBi

Mounting
Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage
140m squared(1500 ft²)

Concurrent Clients
350+**

Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be

Frequency
2.4 GHz and 5 GHz

Signal Rate
688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

Wireless Functions
4K-QAM
MU-MIMO
EHT160
Mesh
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:16(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication

Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4 000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise

Transmission Power
< 20 dBm (2.4 GHz EIRP)
< 23 dBm (5 GHz band 1&band 2 EIRP)
< 28 dBm (5 GHz band 3 EIRP)

Management Features

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access
Yes. Require the use of an OC300 OC200 Omada Software Controller or an Omada Cloud-Based Controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1 v2c v3

System Logging Local/Remote Syslog
Yes

Web-based Management
Yes

OTHERS
Certification CE FCC RoHS IC

Package Content
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.

Environment
Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
