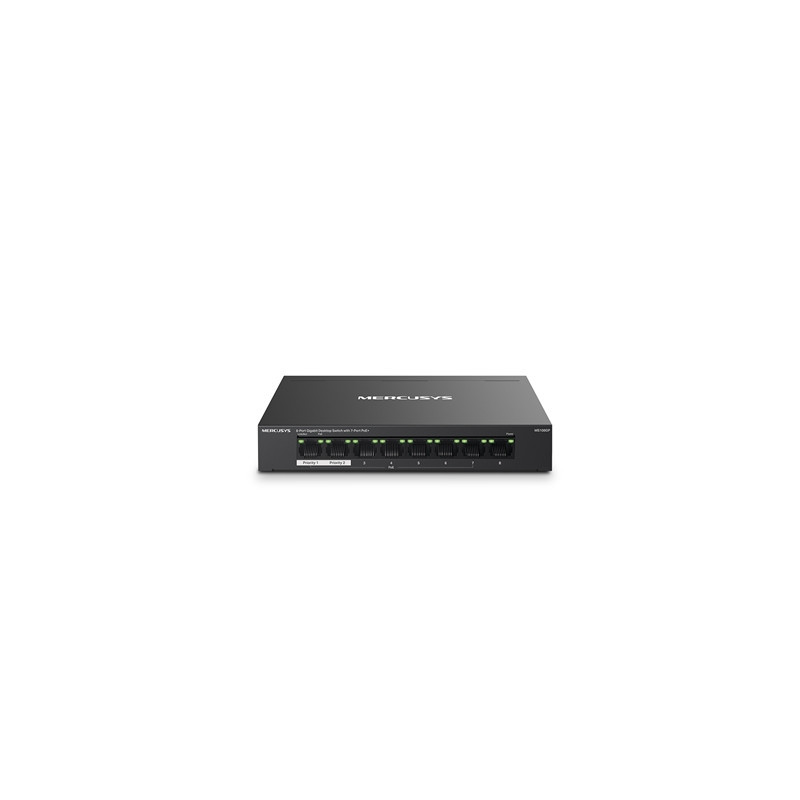

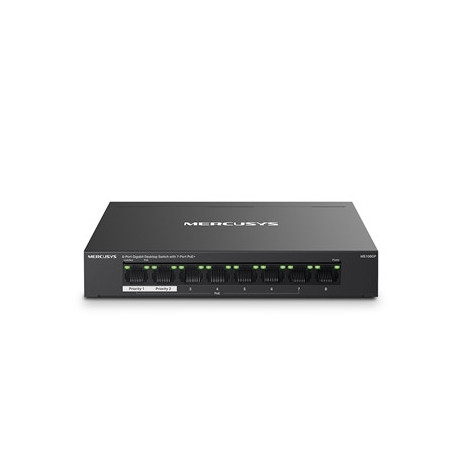

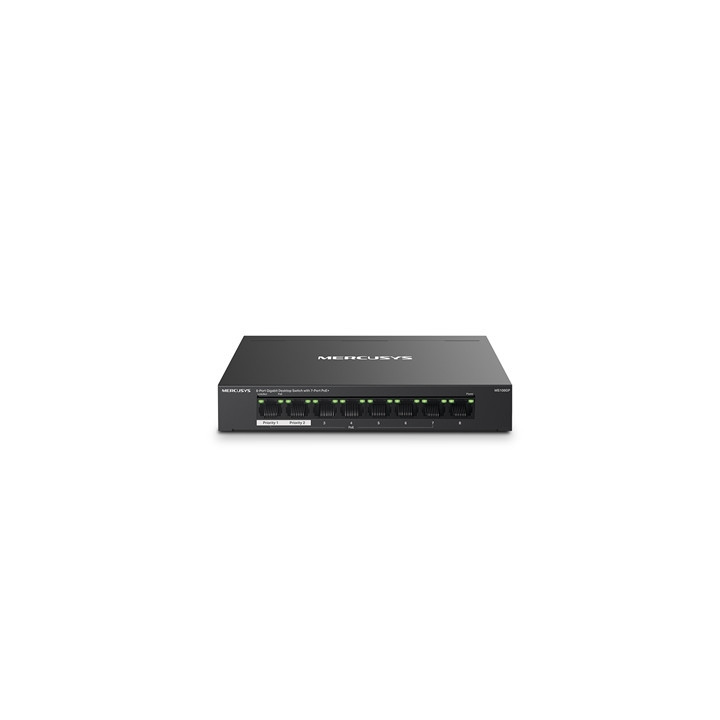

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

Mercusys MS108GP Coming Soon 8-Port Gigabit Desktop Switch with 7-Port PoE

Full Gigabit Ports
8x 10/100/1000 Mbps RJ45 ports

Two Cables in One
With 7 PoE ports transfers data and power on one single cable

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

Isolation Mode
One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing
Allows for efficient heat dissipation and long network life

Plug and Play
Simple to use and saves time and effort

Specifications

Hardware

Dimensions (W X D X H)
171x98x27 mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W

External Power Supply
External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols
IEEE 802.3x Flow Control

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame
9 KB

Mac Address Table
8K

Max Power Consumption
5.07W(220 V / 50 Hz no PD connected)

77.33W(220 V / 50 Hz with 65W PD connected)

Max Heat Dissipation
17.238 BTH/h (no PD connected)
262.922 BTH/h(with 65W PD connected)

Others

Package Contents
8-Port Gigabit Desktop Switch with 7-Port PoE(MS108GP)
Power Adapter
Quick Installation Guide
