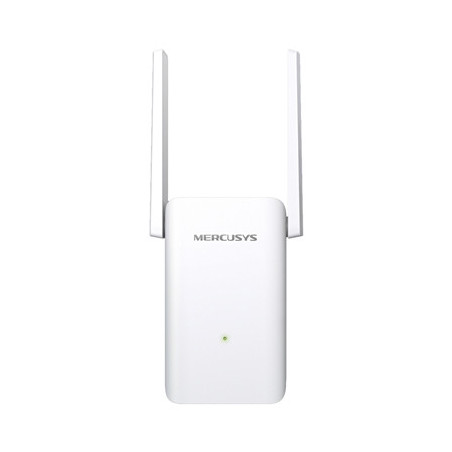

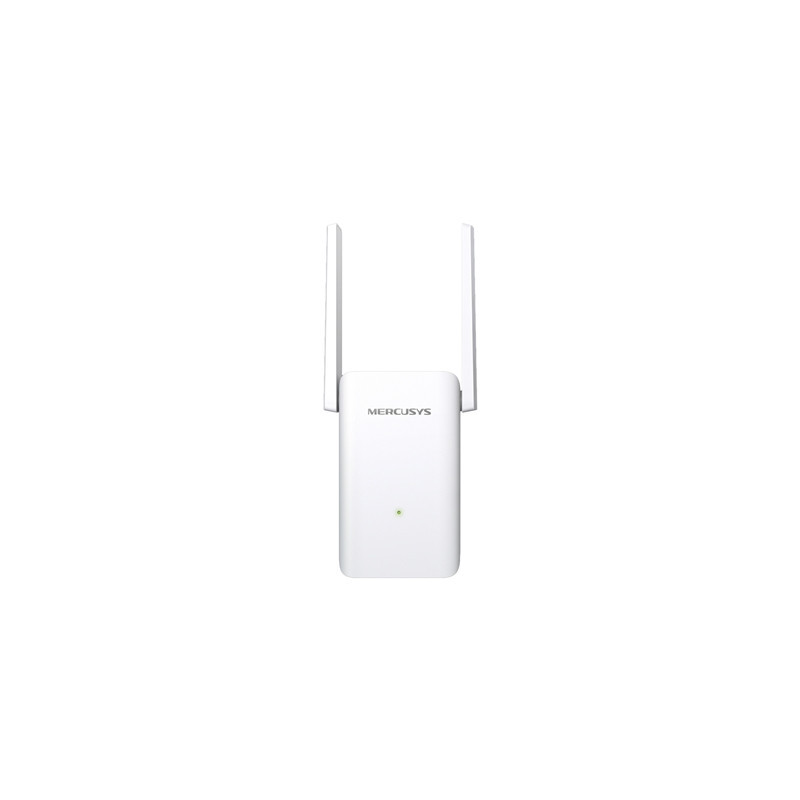

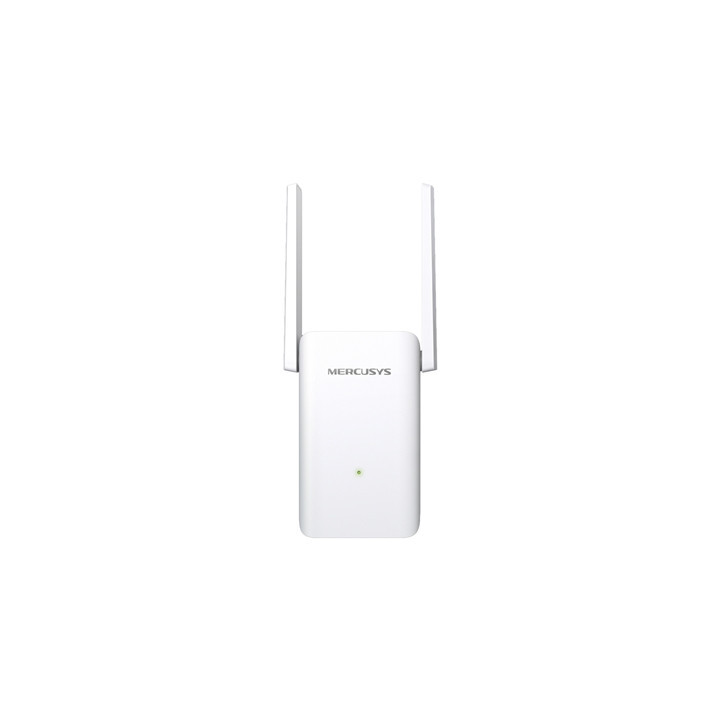

Mercusys ME80X AX3000 Wi-Fi Range Extender

Mercusys ME80X AX3000 Wi-Fi 6 Range Extender

Dual Band Speeds up to 3000 Mbps
2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Armed with WiFi 6
Improves virtually every aspect of your network: speed efficiency and capacity.

Gigabit Wired Connection
Provides speedy wired connections for PCS IPTVS.and game consoles.

Works with Any Routers
To Extend WiFi to Where You Need It Most.

Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.

Built-In Access Point Mode
Works as RE mode and AP mode.

Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

Wireless

Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11b/g/n/ax 2.4GHz

Frequency
2.4GHz and 5GHz

WiFi Speeds
574 Mbps at 2.4GHz 2402 Mbps at 5GHz

Reception Sensitivity
5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS11: -58dBm

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm

Wireless Security
WEP WPA WPA2 WPA3-PSK

Hardware

Dimensions
138.6 x 100.3 x 68.4 mm

Interfaces
1 Gigabit Ethernet Port

Button
WPS / Reset Button

Antenna Type
2x External Antennas

Power
13W

Others

Certifications
RoHS

Network Services Enabled by Default
Web Server

Device configuration and management
Port: 80/443; Protocol: HTTP/HTTPS

DHCP Server
IP address assignment
Port: 67; Protocol: UDP/DHCP

SSH for APP
Port: 20001; Protocol: TCP/ssh

TMPD for APP
Manage and configure device through app
Port: 20001; Protocol: UDP/tmpd

TDP Server for APP
device discovery for app
Port: 20002; Protocol: UDP

Package Contents
Wi-Fi Range Extender ME80X
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing
