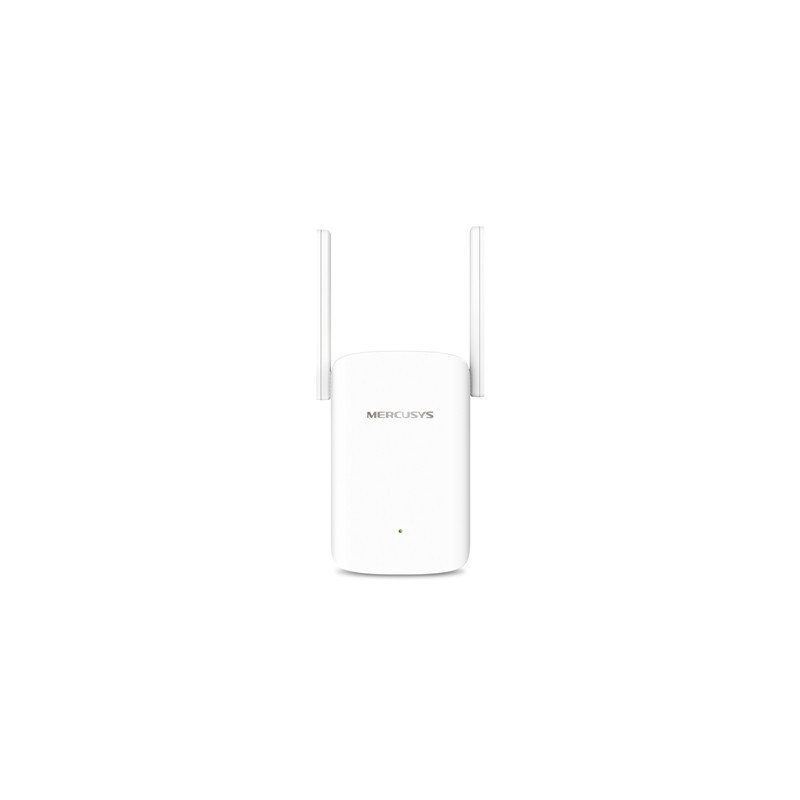

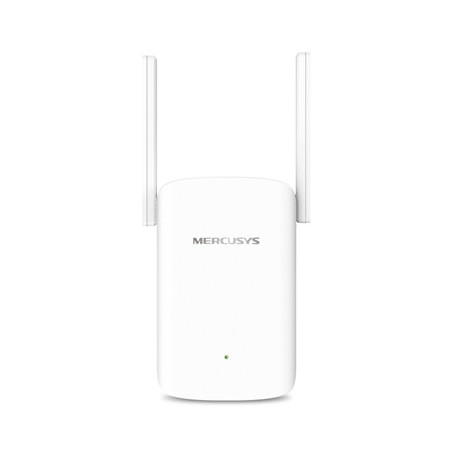

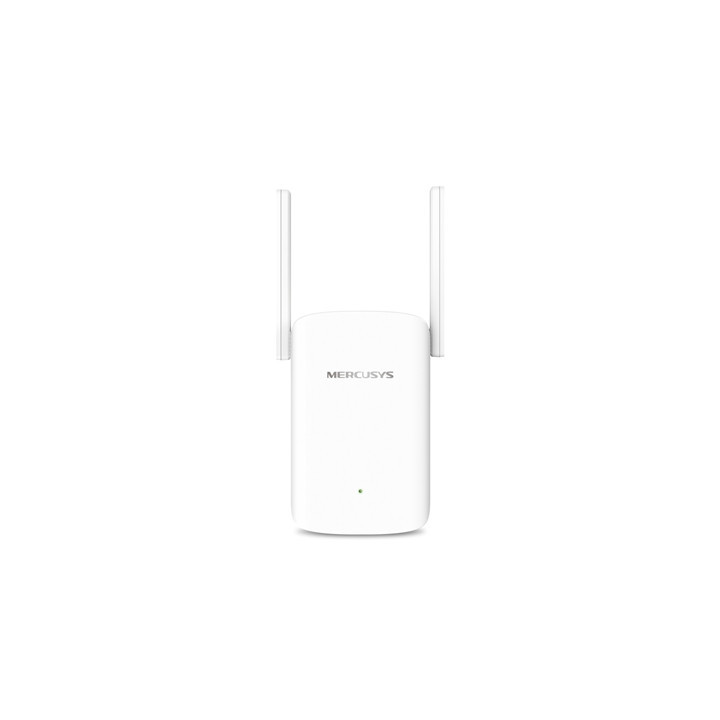

Mercusys ME60X AX1500 Wi-Fi Range Extender

Mercusys ME60X AX1500 Wi-Fi 6 Range Extender

Dual Band Speeds up to 1500 Mbps
1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

Armed with WiFi 6
Improves virtually every aspect of your network: speed efficiency and capacity.

Gigabit Wired Connection
Provides speedy wired connections for PCS IPTVS.and game consoles.

Works with Any Routers
To Extend WiFi to Where You Need It Most.

Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.

Built-In Access Point Mode
Works as RE mode and AP mode.

Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

Specifications

Wireless

Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency
2.4GHz and 5GHz

Signal Rate
300 Mbps at 2.4GHz 1201 Mbps at 5GHz

Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -58 dBm
11a 6Mbps: -94 dBm
11a 54Mbps: -76 dBm
11ac VHT80 MCS0: -91dBm
11ac VHT80 MCS9: -63dBm
2.4 GHz:
11g 6Mbps: -95 dBm
11g 54Mbps: -77 dBm
11n HT40: -72dBm

Wireless Security
WPA WPA2 WPA3-PSK

Hardware

Dimensions (W X D X H)
84.7 x 39 x 112 mm (Without Plug)

Interfaces
1 Gigabit Ethernet Port

Button
WPS / Reset Button

Antenna Type
2x External Antennas

Power Consumption
10W

Others

Certifications
RoHS

Package Contents
Wi-Fi Range Extender ME60X
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
