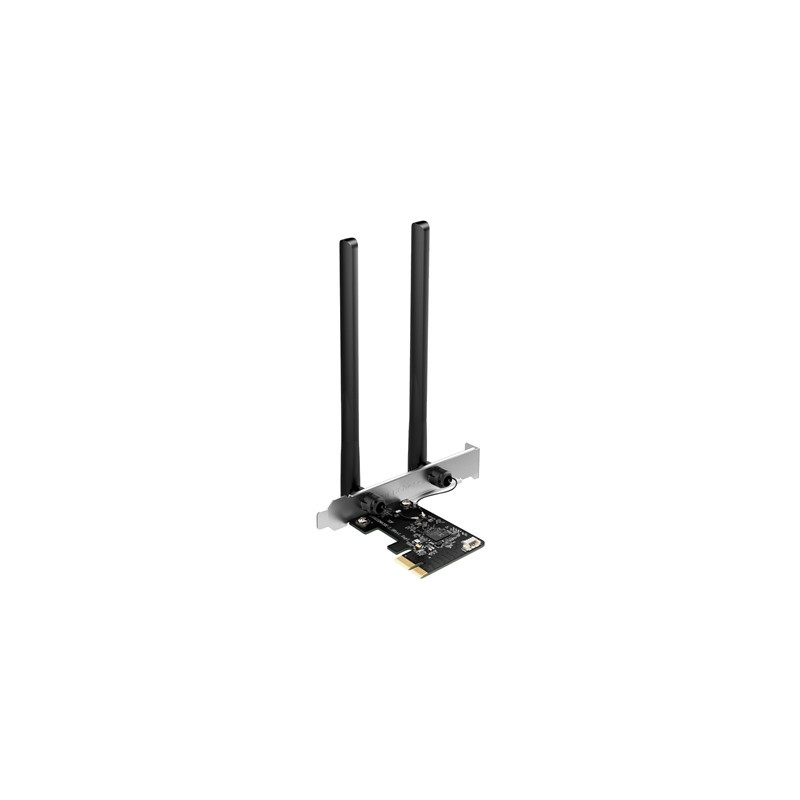

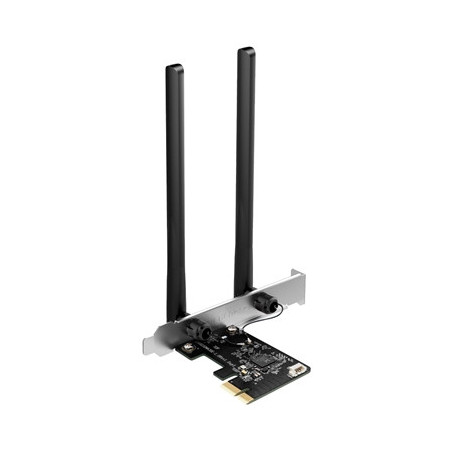

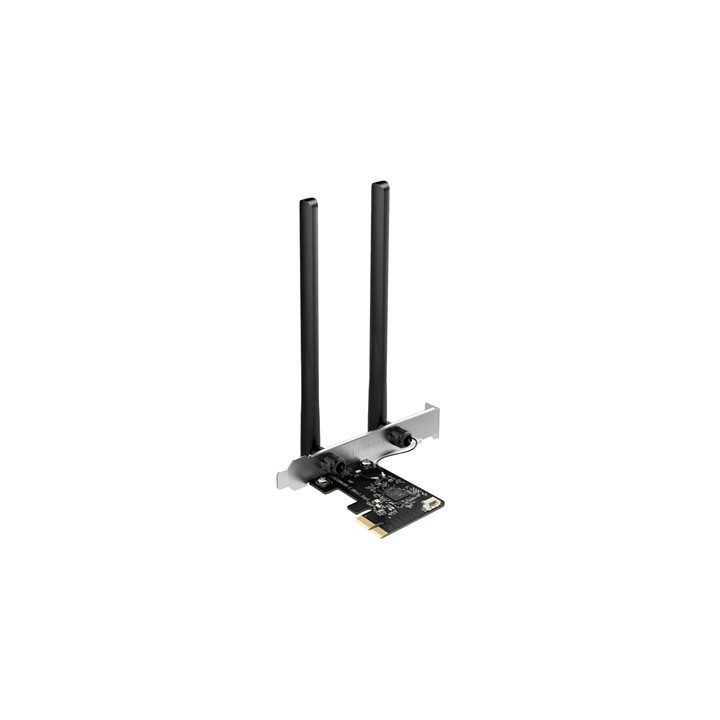

Mercusys MA30E AC1200 WiFi Bluetooth PCIe Adapter

Strong Dual Band Wi-Fi Speed— Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)

Wider Signal Coverage— Two high-performance antennas

Bluetooth 5.0— The Bluetooth 5.0 technology achieves faster speeds and broader coverage

MU-MIMO— Simultaneously serve several devices with no more latency or bandwidth congestion

Improved Security— The latest security enhancement WPA3 provides enhanced protection in personal password safety

Backward Compatibility— Full support for 802.11ac/a/b/g/n standards

Windows Compatible— Supported operating system: Windows 10 11 (64 bit)


Specifications

Wireless

Wireless Standards
IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz

Signal Rate
867 Mbps on 5 GHz
300 Mbps on 2.4 GHz

Reception Sensitivity
5 GHz:
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions (W x D x H)
8.9 x 4.8 x 0.85 in (226.3 x 120.8x 21.5 mm)

Antenna Type
2x Fixed High-Performance Omni-Directional Antennas

Others

Package Contents
AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E)
Bluetooth Header Cable
Quick Installation Guide
Resource CD
