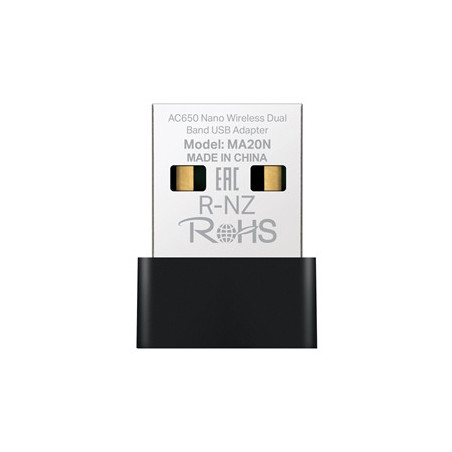

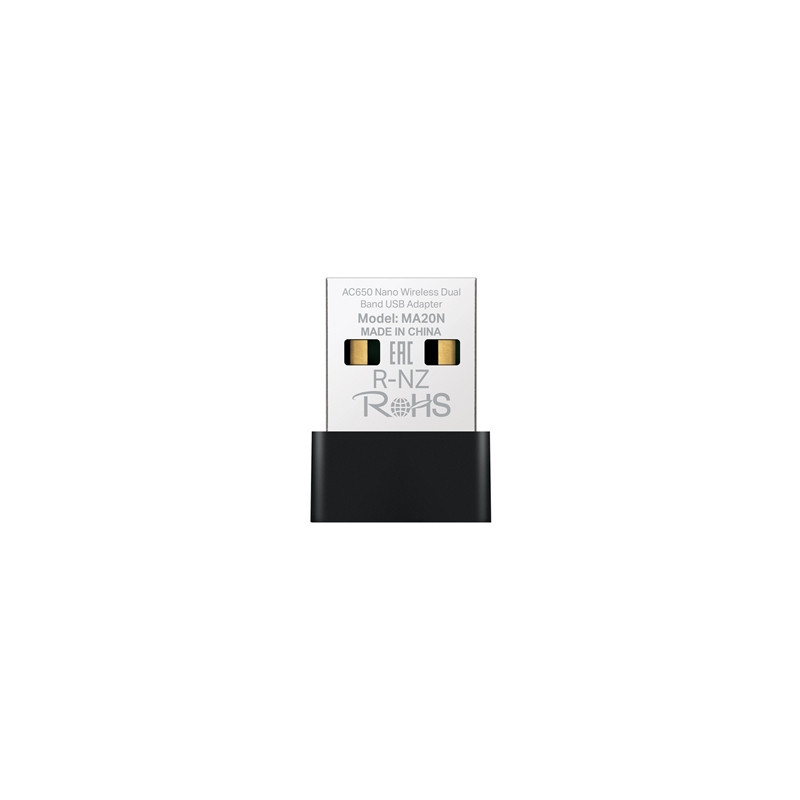

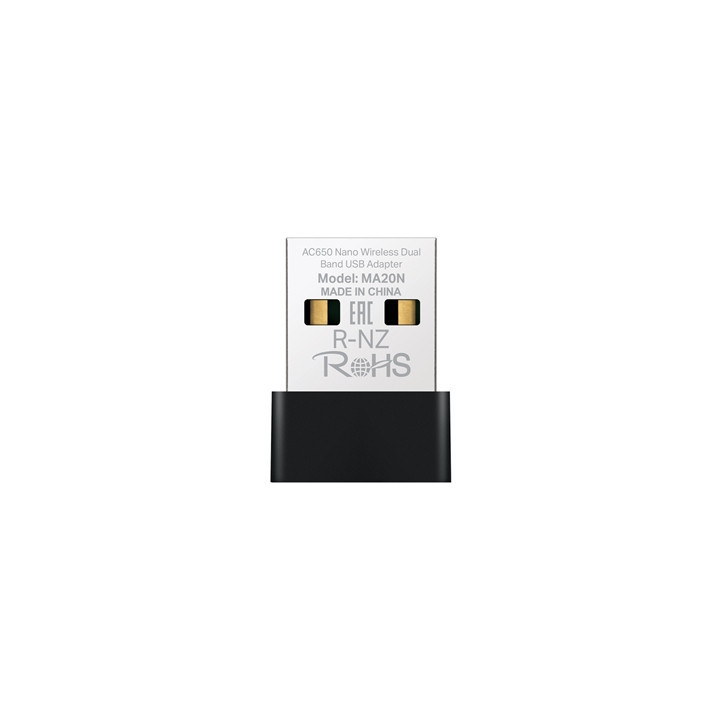

Mercusys MA20N AC650 Nano Wi-Fi USB Adapter

Mercusys MA20N AC650 Nano Wireless Dual Band USB Adapter

Dual Band Wi-Fi Speed
Speeds up to 433 Mbps (5 GHz) + 200 Mbps (2.4 GHz)

Plug and Play
With the built-in inbox driver by Windows operation systems you just need to plug into your computer and play.

Nano Size
A compact convenient solution to make your device wireless. Much smaller than a regular USB flash drive.

Improved Security
The latest security enhancement WPA3 provides enhanced protection in personal password safety

Windows Compatible
Supported operating system: Windows 10 11 (32/64bit)

Specifications

Wireless

Wireless Standards
IEEE 802.11ac IEEE 802.11a
IEEE 802.11n IEEE 802.11g IEEE 802.11b

Frequency
5 GHz
2.4 GHz

WiFi Speeds
Up to 433 Mbps on 5 GHz
Up to 200 Mbps on 2.4 GHz

Reception Sensitivity
5GHz:
11a 6Mbps: -95dBm
11a 54Mbps: -78 dBm
11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS9: -68.5dBm
11ac VHT80 MCS9: -64.5 dBm
2.4GHz:
11g 6Mbps: -95.5 dBm
11g 54Mbps: -79 dBm
11n HT20 MCS7: -76 dBm
11n HT40 MCS7: -74 dBm

Wireless Security
WPA/PSK WPA2-PSK WPA3-SAE

Hardware

Dimensions
14.94x7.19x19.15mm

Interfaces
USB 2.0

Antenna Type
1 Internal Antenna

Others

Package Contents
AC650 Nano Wireless Dual Band USB Adapter (MA20N)
Quick Installation Guide

System Requirements
Windows 11/10 (32/64-bit)
