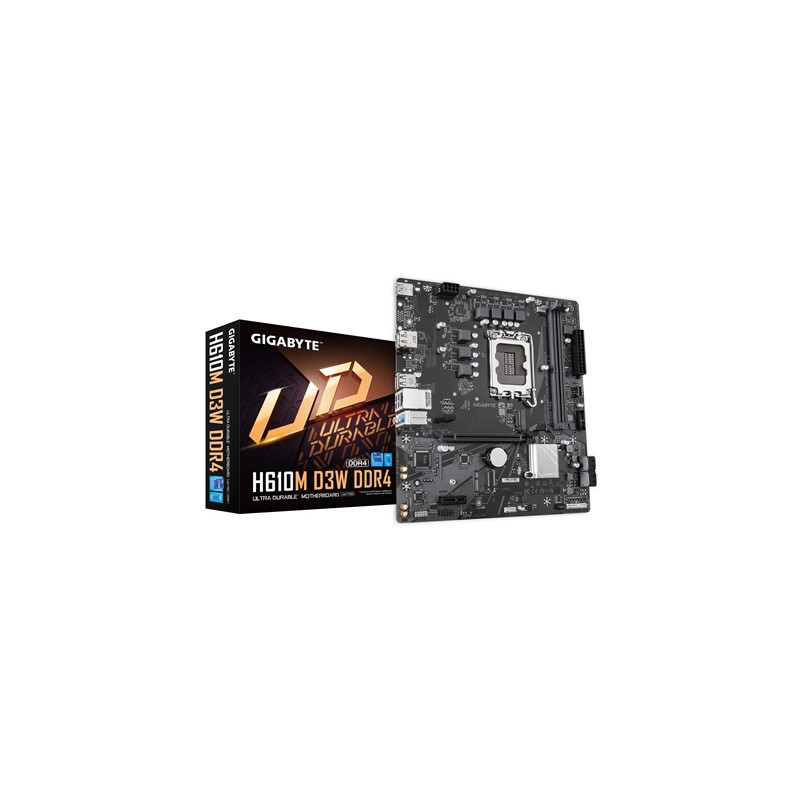

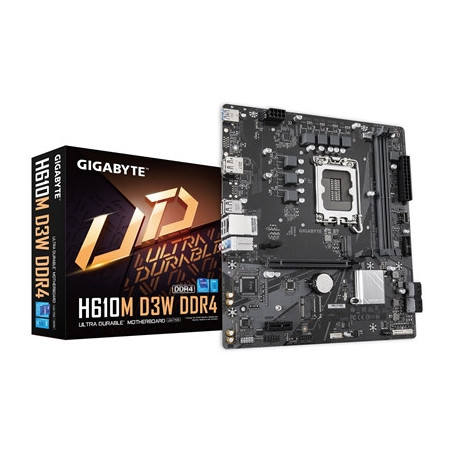

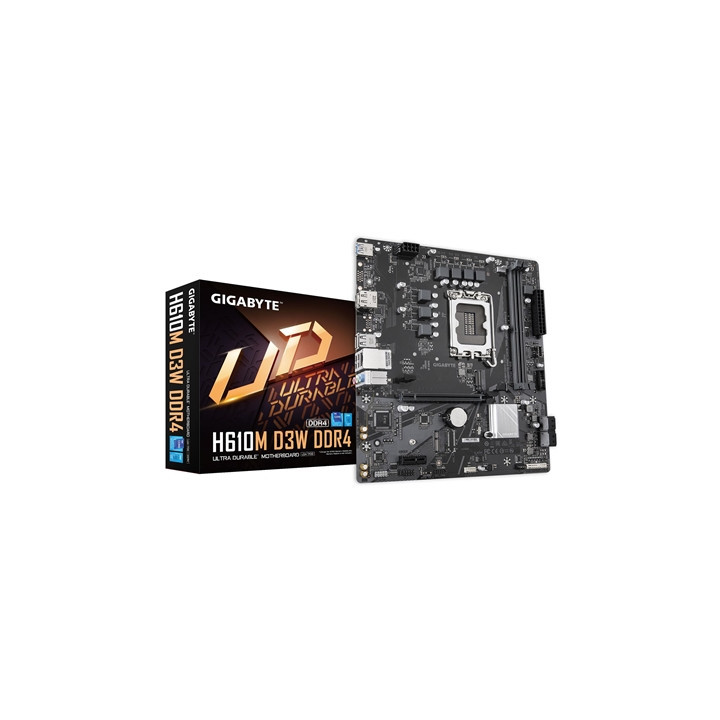

Gigabyte H610M D3W DDR4 Intel 1700 Socket Motherboard Micro-ATX 2x DDR4 Slots 1x M.2 Socket GbE LAN 1x DisplayPort / 1x HDMI Port

H610M D3W DDR4 (Rev. 1.x)

KEY FEATURES:
Supports Intel® Core™ 14th/ 13th/ 12th processors
Dual Channel Non-ECC Unbuffered DDR4 2 DIMMs
5+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center Simple and Easy Use
Anti-Sulfur Resistors Design

SPECIFICATION:

CPU
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel® Core™ Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel® H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types datarate (speed) and number of DRAM modules please refer to Memory Support List on GIGABYTE's website for more information.)

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.

- 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure

7.1-channel audio access the audio software for audio settings.

LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless LAN
N/A

Slots
CPU:
- 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage
Chipset:
- 1 x M.2 connector (Socket 3 M key type 2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors

RAID
N/A

USB
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support available through theinternal USB header
- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+1 USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel

Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers*
* Only for PCB rev. 1.1 or later.
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

Rear Panel I/O
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Form Factor
Micro ATX Form Factor; 24.4cm x 22.0cm

OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
