- New

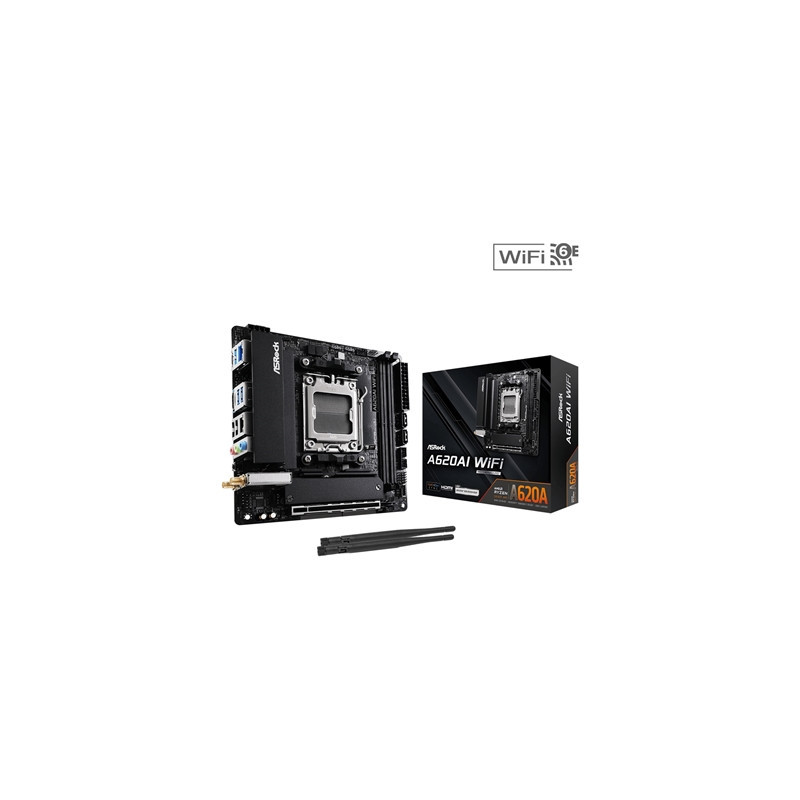

ASRock A620AI WIFI AMD AM5 Socket Motherboard Mini-ITX 2x DDR5 Slots 2x M.2 Socket 2.5GbE LAN Wi-Fi 6E 1x HDMI Port
£133.96
VAT included

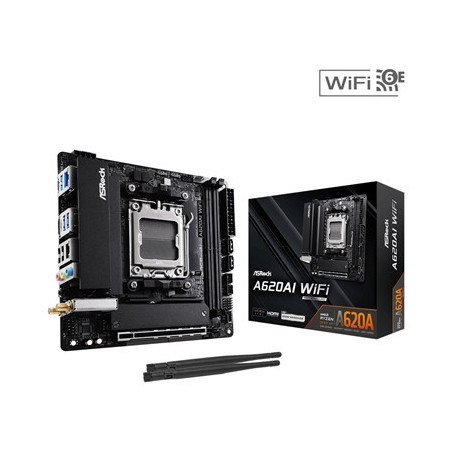

ASRock A620AI WIFI AMD AM5 Socket Motherboard Mini-ITX 2x DDR5 Slots 2x M.2 Socket 2.5GbE LAN Wi-Fi 6E 1x HDMI Port
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
ASRock A620AI WIFI AMD AM5 Socket Motherboard
Performance
Optimized VRM Design
VRM Design
8+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU offering enhanced performance for gamers.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs it intelligently delivers higher current for each phase thus providing improved thermal result and superior performance.
Power Connector
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors providing a more stable system and reducing the risk of fire during heavy overclocking.
8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the built for stable and reliable designing concept ASRock does not compromise on any details. This motherboard is built with high quality materials enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable satisfying and absolutely no sweat at all.
High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs it is capable of perform twice the speed compared to previous 3rd generation giving a lightning fast data transferring experience.
Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance hence ensure system stability and durability effortlessl
Connectivity
Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Dual LAN Design
Elevate your network's performance security and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds while benefiting from failover protection VLAN segmentation and more.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip CPU fans coolers chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
SignalRGB
SignalRGB unifies your RGB devices offering seamless customization game-reactive effects macro automation and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control enhances compatibility with a diverse range of RGB devices and provides greater customization flexibility.
EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU RAM or other components are required.
Specifications
Unique Features
Superb Productivity - Dual Channel DDR5
Rock-Solid Durability - 8+2+1 Power Phase 80A Dr.MOS for VCore+SOC+MISC
Ultrafast Connectivity - 2.5G LAN 802.11axe Wi-Fi 6E Module
EZ Update - BIOS Flashback Button ASRock Auto Driver Installer
CPU
Supports AMD Socket AM5 Ryzen 9000 8000 and 7000 Series Processors
* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
AMD A620A
Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC un-buffered memory up to 8200+(OC)*
Max. capacity of system memory: 128GB*
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
* Please refer to Memory Support List on ASRock's website for more information.
Due to the operating system limitation the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU there is no such limitation.
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible supports HDR HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game Browser and Streaming Modes
User Customized Priority Control 1 x Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111)
Wireless LAN
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.2
Supports MU-MIMO
*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode*
Chipset:
1 x Vertical M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module
15µ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen4x16 with 9000 and 7000 series processors Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks
Storage
CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Ultra M.2 Socket (M2_2 Key M) supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
2 x SATA3 6.0 Gb/s Connectors
* M2_1 is the first priority for M.2 installation.
Supports NVMe SSD as boot disks
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0 RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
USB
CPU:
1 x USB 3.2 Gen2 Type-C (Rear)
2 x USB 3.2 Gen2 Type-A (Rear) Chipset:
1 x USB 3.2 Gen1 Type-C (Front)
3 x USB 3.2 Gen1 Type-A (1 Rear 2 Front)
4 x USB 2.0 (2 Rear 2 Front)
* All USB ports support ESD Protection
Connector
2 x Addressable LED Headers*
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
* Support in total up to 5V/3A 15W LED Strip
** CPU_FAN1 CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN1 CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
1 x USB 3.2 Gen1 Port
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Form Factor
Mini-ITX Form Factor: 6.7-in x 6.7-in 17.0 cm x 17.0 cm
8 Layer PCB
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
