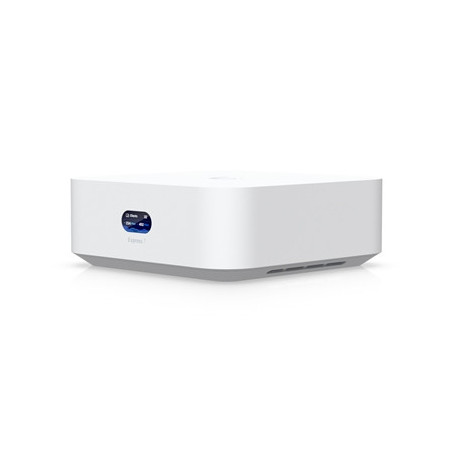

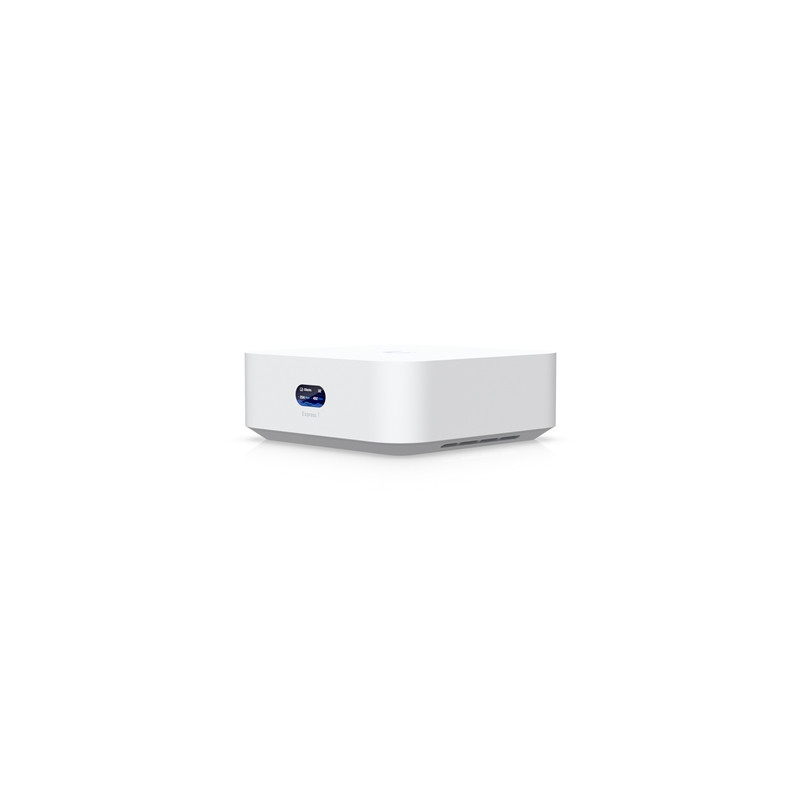

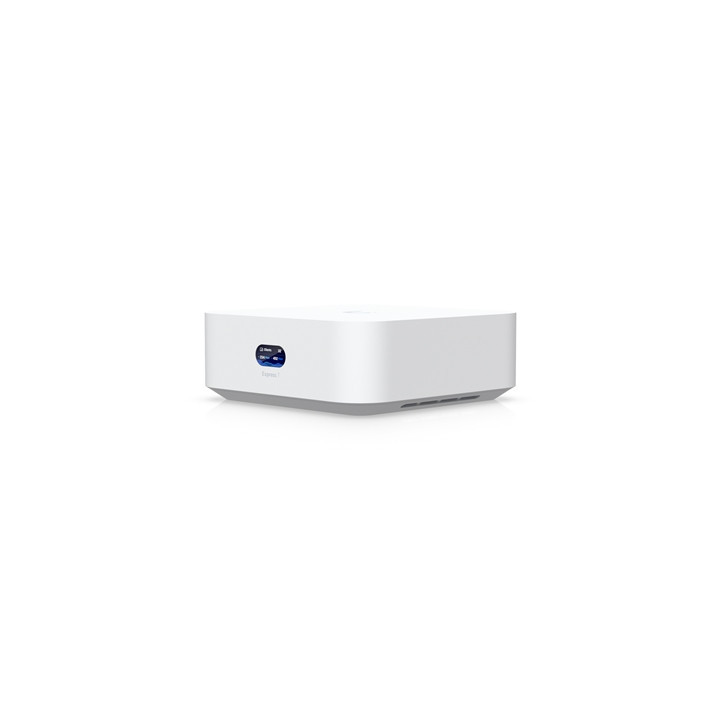

Ubiquiti UX7 UniFi Express 7 Ultra Compact Mesh Scalable Combined Router WiFi 7 Access Point and Gateway

Ubiquiti UniFi Express 7 (UX7) - Mesh-scalable super-compact 10G Cloud Gateway with integrated WiFi 7.

Experience next-generation networking with Ubiquiti UniFi Express 7 (UX7) a powerful all-in-one WiFi 7 router designed for seamless connectivity advanced security and effortless UniFi integration. Featuring blazing-fast speeds low latency and enhanced coverage UniFi Express 7 is perfect for homes and small businesses looking for high-performance networking in a compact easy-to-manage device.

With UniFi OS built-in you get intelligent network management robust security features and simple setup all from the intuitive UniFi app. Upgrade to WiFi 7 today and enjoy the future of wireless connectivity with UniFi Express 7.

Key Features
WiFi 7 all-in-one router with 6GHz support
0.96 information display
300+ client capacity
WiFi 7 – Multi-gigabit speeds with 320 MHz channels and 4K-QAM.
Tri-Band (2.4 GHz / 5 GHz / 6 GHz) – Optimized performance and reduced congestion.
Multi-Link Operation (MLO) – Simultaneous multi-band data transmission for lower latency.
High-speed wired connectivity for low-latency networking. Advanced Security – Firewall deep packet inspection (DPI) and VPN support.


Dimensions
117 x 117 x 42.5 mm
(4.61 x 4.61 x 1.67'')

UniFi Application Suite
Network
Yes

Managed UniFi Devices
30

Simultaneous Users Connected
300

Default WAN Ports
(1) 10 GbE RJ45

LAN Ports
(1) 2.5 GbE RJ45

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions Domains Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
20 000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E WiFi 7)

Throughput
6 GHz
5.7 Gbps

5 GHz
4.3 Gbps

2.4 GHz
688 Mbps

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain
6 GHz
6 dBi

5 GHz
7 dBi

2.4 GHz
4 dBi

Wireless Security
WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs
4 per Radio (Gateway Mode)
4 per Radio (AP Mode)

Supported Data Rates
802.11a
6 9 12 18 24 36 48 54 Mbps

802.11b
1 2 5.5 11 Mbps

802.11g
6 9 12 18 24 36 48 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2 VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2 HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2 EHT 20/40/80/160/240/320)

Max. Power Consumption
22W

Power Method
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Max. TX Power
6 GHz
24 dBm

5 GHz
26 dBm

2.4 GHz
23 dBm

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory
3GB

Weight
422 g (14.9 oz)

Enclosure Material
Polycarbonate

LCM Display
0.96 status display

Management
Ethernet
Bluetooth

System LEDs
Ethernet

Certifications
CE FCC IC

Button
Factory Reset
