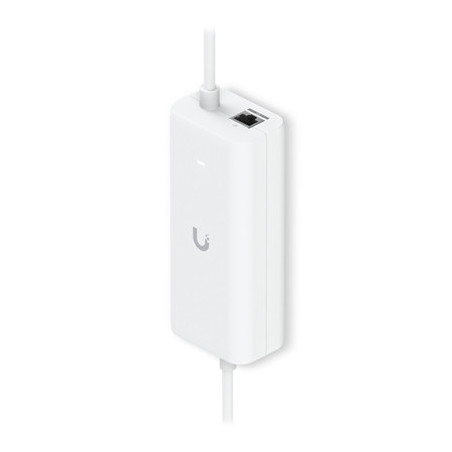

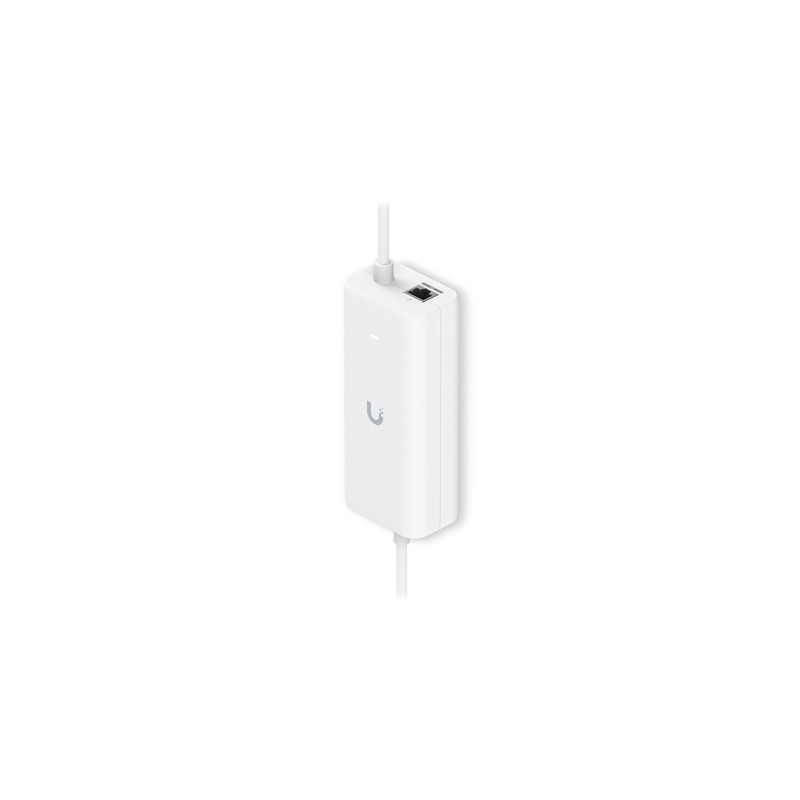

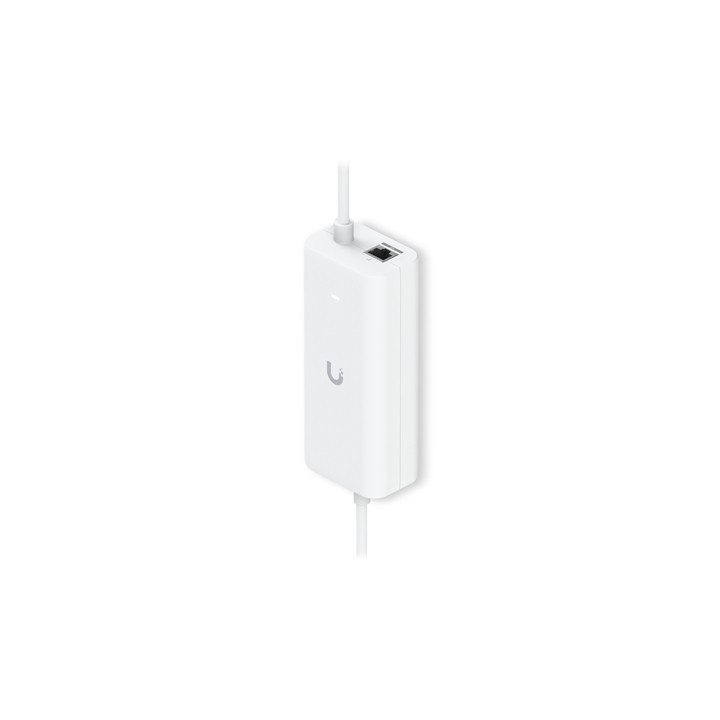

Ubiquiti UACC-POE+-USBC POE to USB-C Power Adapter

An AC adapter with integrated PoE enabling the UniFi Cloud Gateway device to support PoE output on a single port.

Delivers up to 30W of PoE+
Supports wall mount DIN rail and floating mount - sold separately
Lockable latch designed for power cord security

Dimensions
146 x 62 x 42 mm (5.7 x 2.4 x 1.7)

Weight
358 g (12.6 oz)

Cable Length
Type-C/Ethernet: 150 cm (4.9 ft)
Power cord: 180 cm (5.9 ft)

Output Voltage
Type-C: 5V@ 5A
PoE+: 48V@ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Up to 10 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
1.5A max.

Inrush Current
120A

Efficiency
82%

Output Ripple
1% max.

Switching Frequency
65 kHz

Line Regulation
< 5%

Load Regulation
< 5%

2-Pair Powering
No

4-Pair Powering
Pins 1 2 4 5 (+) and 3 6 7 8 (-)

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
<5 pF Data

Response Time
<1 ns

Certifications
CE FCC IC UL UKCA CCC KC RoHS
